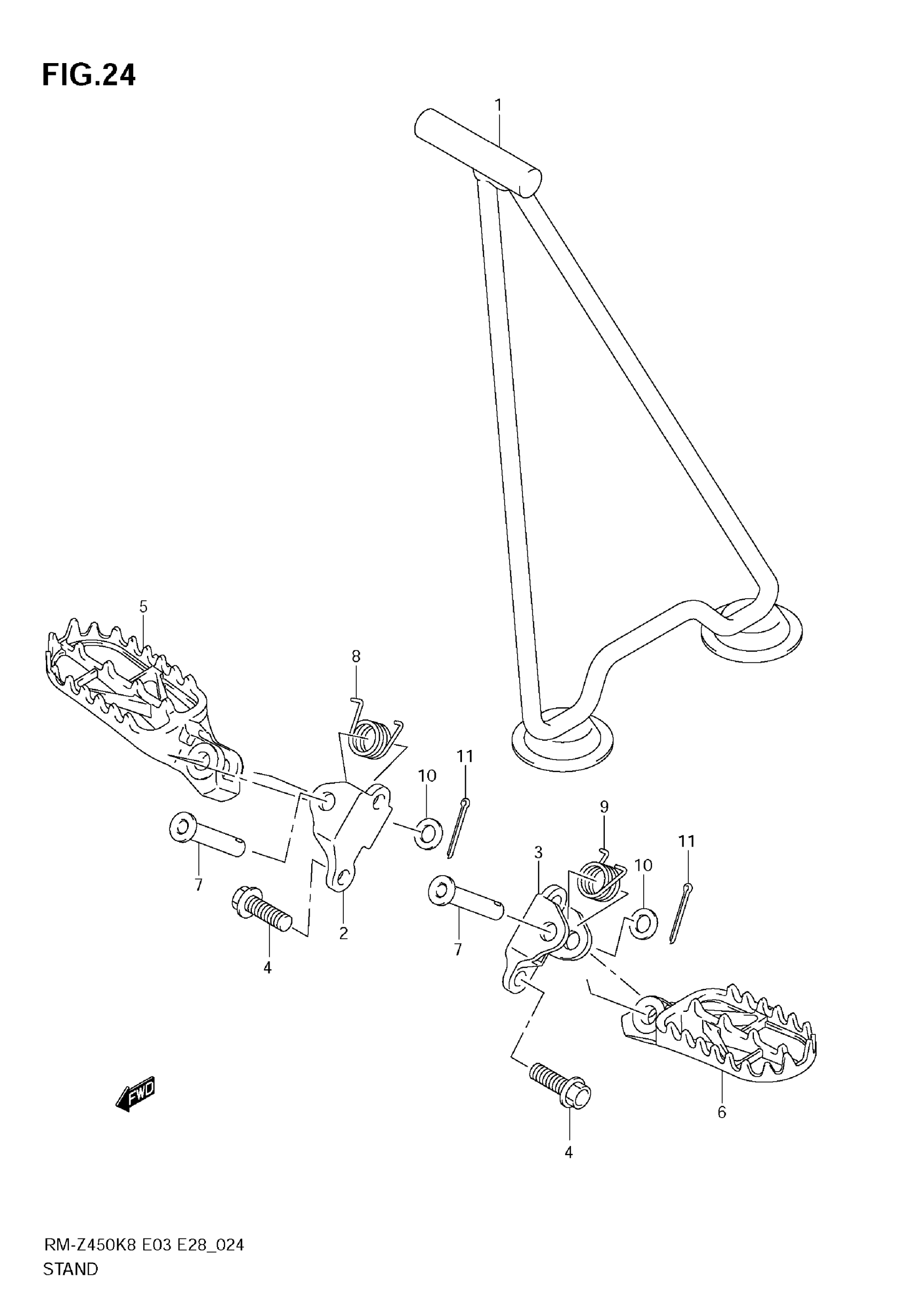

Suzuki RM-Z450 (2009) FOOTREST Diagram

#

Description
Price

1

STAND

42310-35G00

Unavailable

2

BRACKET, FOOTREST RH

41855-28H00

Unavailable

3

BRACKET, FOOTREST LH

41865-28H00

Unavailable

4

BOLT

09103-10415

$4.92

5

FOOTREST, RH

43551-28H01

Unavailable

6

FOOTREST, LH

43561-28H01

Unavailable

7

PIN

09200-10019

$6.16

8

SPRING, RH

09448-18035

$7.38

9

SPRING, LH

09448-18036

Unavailable

10

WASHER

09160-10121

$2.06

11

COTTER PIN

04111-2520A

$1.22
