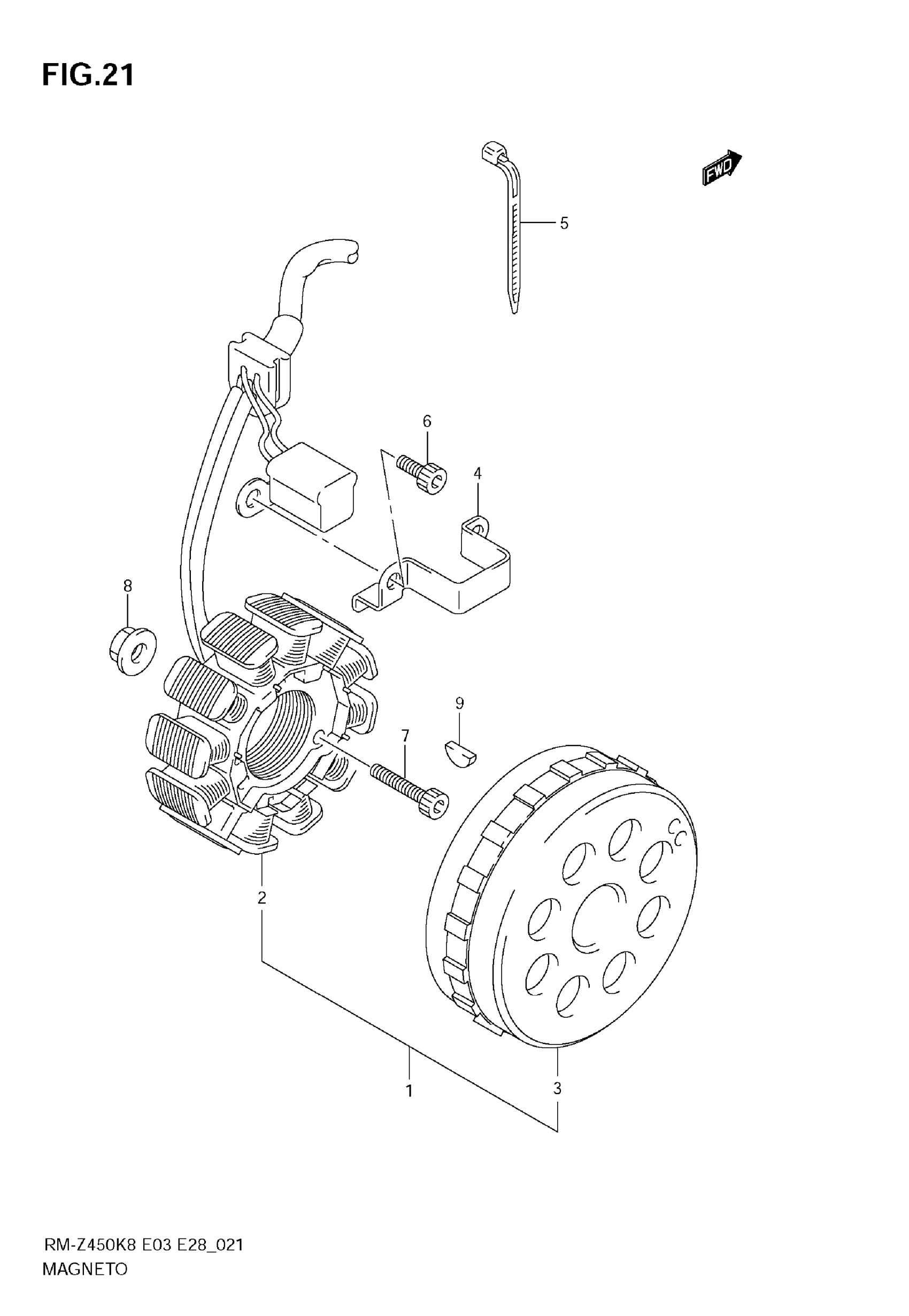

Suzuki RM-Z450 (2009) MAGNETO Diagram

MAGNETO ASSY | Includes Item(s) 2 - 3

32100-28H00

Unavailable

STATOR ASSY, MAGNETO

32101-28H00

$626.25

ROTOR ASSY, MAGNETO

32102-28H00

$635.65

CLAMP, MAGNETO LEAD

32371-35G00

Unavailable

CLAMP, MAGNETO LEAD (L:125)

09407-14403

$2.24

BOLT, SENSOR

07130-0512A

$2.19

BOLT, MAGNETO STATOR

07130-0525A

$2.29

NUT, MAGNETO ROTOR

08316-1012B

$3.48

KEY, MAGNETO ROTOR

08341-31039

$1.89
