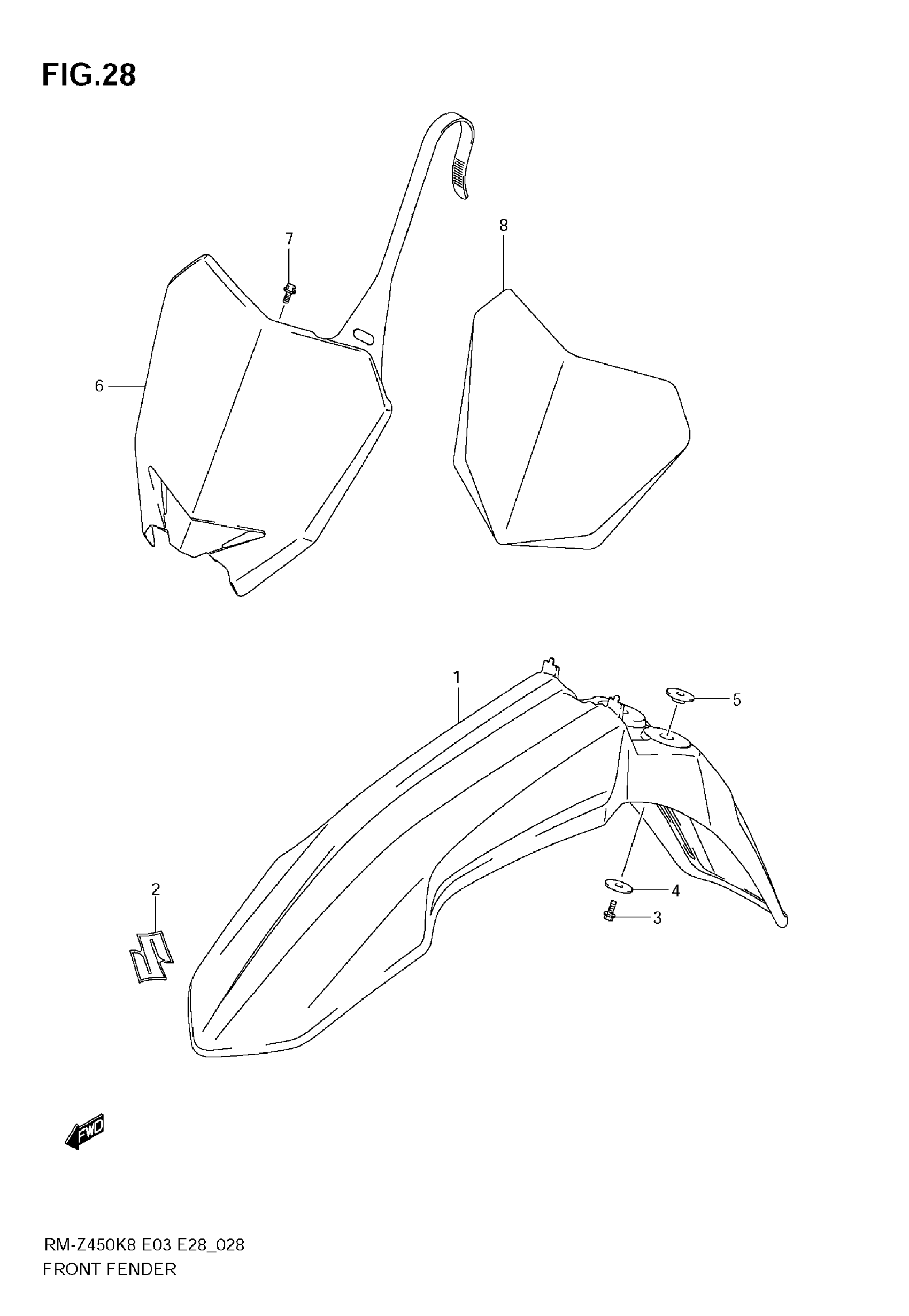

Find the part on the Front Fender diagram for your 2009 Suzuki RM-Z450, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki RM-Z450 Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, FRONT (YELLOW)

53111-28H00-YU1

1
Out of stock

2

EMBLEM,"S" This part replaces 68151-37F10-CFM.

68151-37F11-CFM

1
Out of stock

3

BOLT

01547-0616B

4
Out of stock

4

WASHER, LOWER

44135-35G00

4
Out of stock

5

WASHER, UPPER

09169-06078

4
Out of stock

6

PLATE | MODEL K8 This part replaces 94911-28H00-30H.

94911-28H02-30H

1
Out of stock

6

PLATE, NUMBER FRONT (YELLOW) | MODEL K9 This part replaces 94911-28H00-YU1.

94911-28H02-YU1

1
Out of stock

7

BOLT

09116-06197

1
Out of stock

8

TAPE SET | MODEL K9

68725-28H00-GBV

1
Out of stock
