2007 Suzuki RM-Z450 Steering Stem Diagram

← All diagrams

Find the part on the Steering Stem diagram for your 2007 Suzuki RM-Z450, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

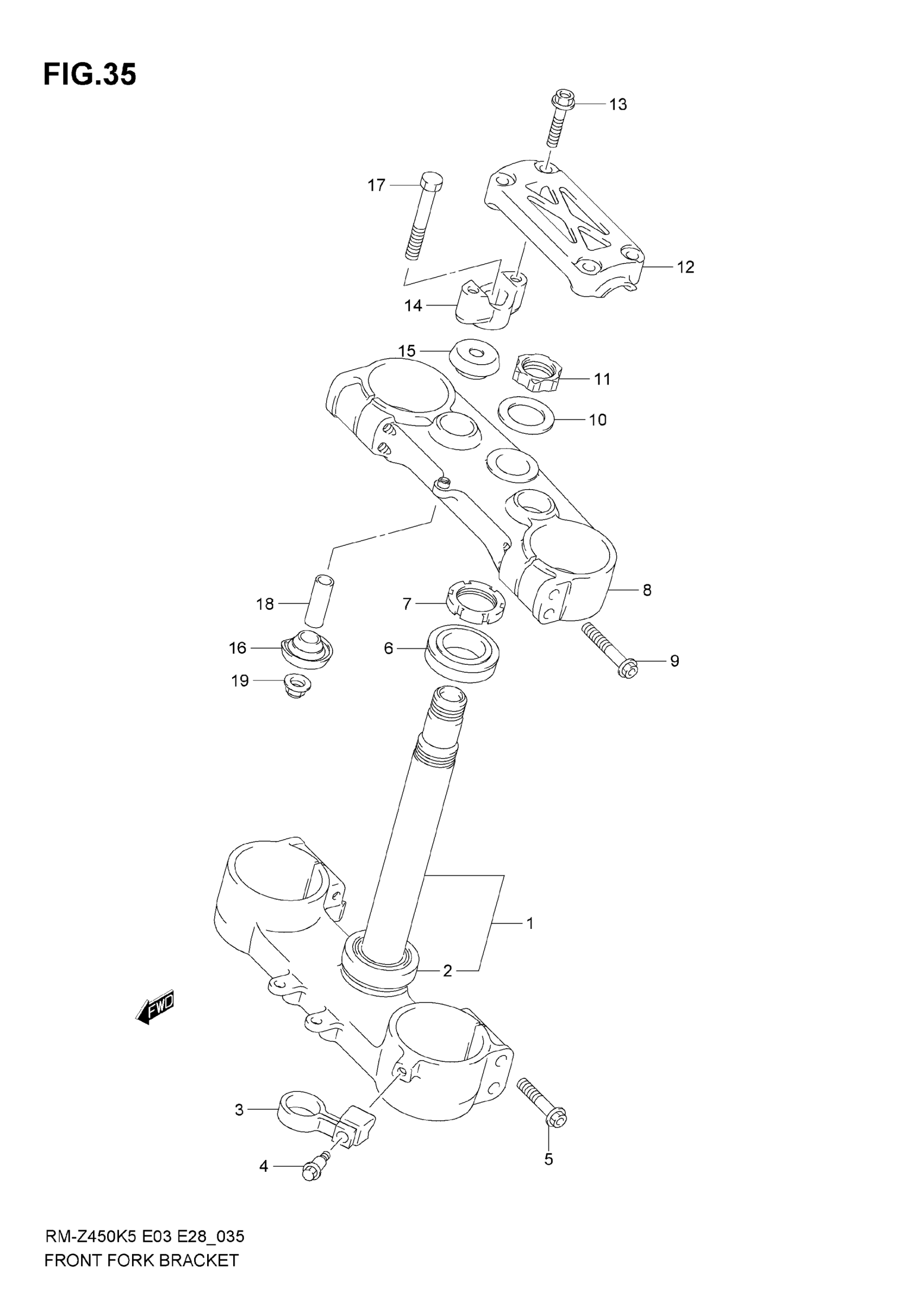

2007 Suzuki RM-Z450 Steering Stem Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STEM, STEERING | Includes Item(s) 2

51410-35G00

1
Out of stock

2

.BEARING (30X52X16) This part replaces 09265-30014.

09265-30035

1
Out of stock

3

GUIDE, BRAKE HOSE

58621-37F80

1
Out of stock

4

BOLT, GUIDE

09111-06087

1
Out of stock

5

BOLT

51328-37F80

4
Out of stock

6

.BEARING (30X52X16) This part replaces 09265-30014.

09265-30035

1
Out of stock

7

NUT STEERING

51631-28E00

1
Out of stock

8

HEAD, STEERING STEM

51310-35G00

1
Out of stock

9

BOLT

51328-37F80

4
Out of stock

10

WASHER,STEM HEAD

51356-29E00

1

$20.30

In stock

11

NUT,STEM HEAD

51353-37F70

1
Out of stock

12

HOLDER, HANDLE

56211-35G00

1
Out of stock

13

BOLT, HANDLE HOLDER

51321-37F90

4
Out of stock

14

HOLDER, HANDLE LOWER

56221-35G00

2
Out of stock

15

CUSHION RUBBER UPPER This part replaces 56241-42AE0.

56241-42AE1

2
Out of stock

16

CUSHION RUBBER UNDER This part replaces 56242-28C60.

56242-28C61

2
Out of stock

17

BOLT | MODEL K5

56321-17G00

2
Out of stock

17

BOLT | MODEL K6

56321-35G00

2
Out of stock

18

SPACER

56243-42A00

2
Out of stock

19

NUT

08319-31107

2
Out of stock
