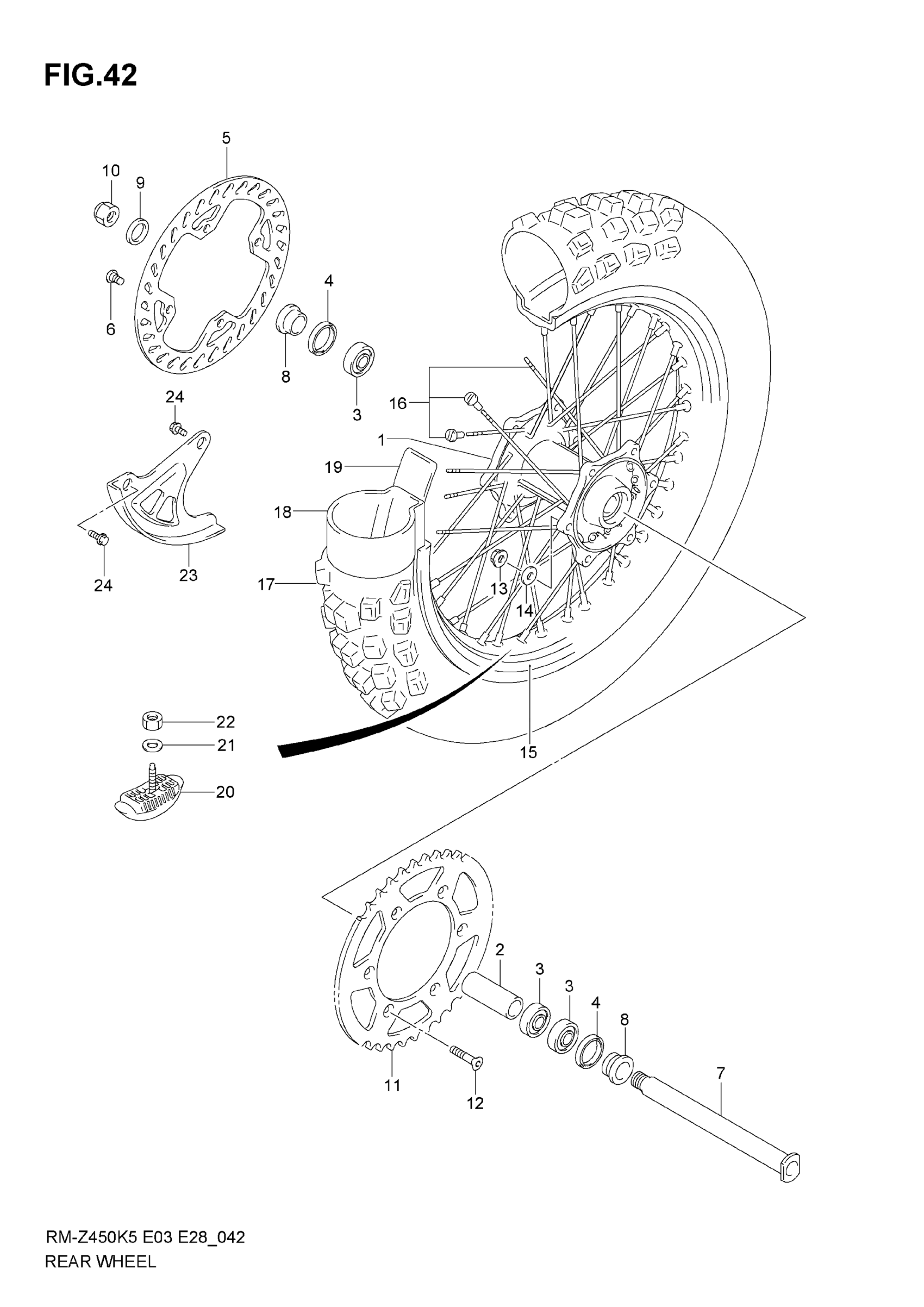

Suzuki RM-Z450 (2007) REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR WHEEL | MODEL K5/K6

64111-35G00

Unavailable

1

.HUB,REAR | MODEL K7 This part replaces 64111-35G10.

64111-35G30

$304.90

2

.SPACER,RR HUB BEARING This part replaces 64731-35G00.

64731-35G01

$31.65

3

.BEARING (25X42X9) This part replaces 09262-25139.

09262-25192

$50.30

4

.SEAL,OIL (32X43X7) This part replaces 09283-32045.

09283-32049

$11.29

5

DISC, REAR BRAKE | MODEL K5/K6

69211-35G00

Unavailable

5

DISC, REAR BRAKE | MODEL K7

69211-35G10

Unavailable

6

SCREW

09139-08022

$4.83

7

AXLE,RR This part replaces 64711-35G00.

64711-35G10

$131.97

8

SPACER This part replaces 64751-35G00.

64751-35G01

$40.32

9

WASHER

09160-22081

$2.80

10

NUT

09159-22007

$17.33

11

SPROCKET,RR (NT:49)

64511-28E00

$134.48

11

SPROCKET,RR (NT:48) | OPT

64511-37E00

$194.80

11

SPROCKET, REAR (NT:51) | OPT

64511-40261

$172.72

11

SPROCKET,RR (NT:50) | OPT

64511-36E00

$140.88

12

SCREW (8X30.5)

09120-08017

$2.80

13

NUT

09159-08133

$5.00

14

WASHER | MODEL K5/K6

08322-01087

$1.86

14

WASHER | MODEL K7

09160-08082

$1.64

15

RIM, REAR WHEEL (2.15X19)

65311-35G00

Unavailable

15

RIM, REAR WHEEL (2.15X19) | RM-Z450Z

65311-35G10

Unavailable

16

SPOKE SET, WHEEL | MODEL K5

65320-35G00

Unavailable

16

SPOKE SET, WHEEL | MODEL K6/K7

65320-35G10

Unavailable

17

TIRE, REAR (120/80-19) (BRIDGESTONE) | E3

65110-35G10

Unavailable

17

TIRE, REAR (120/80-19) (BRIDGESTONE) | E28

65110-35G00

Unavailable

18

TUBE ASSY, WHEEL INNER

65200-35G00

Unavailable

19

PROTECTOR,WHL INR TUBE This part replaces 65261-35G00.

65261-35G01

$8.52

20

STOPPER, BEAD

65270-28E00

$66.32

21

WASHER This part replaces 08322-01083.

08322-0108A

$2.18

22

NUT This part replaces 08310-00083.

08310-0008A

$1.86

23

COVER, REAR DISC This part replaces 69231-37F10.

69231-37F12

$18.90

24

BOLT

09116-06197

$2.80
