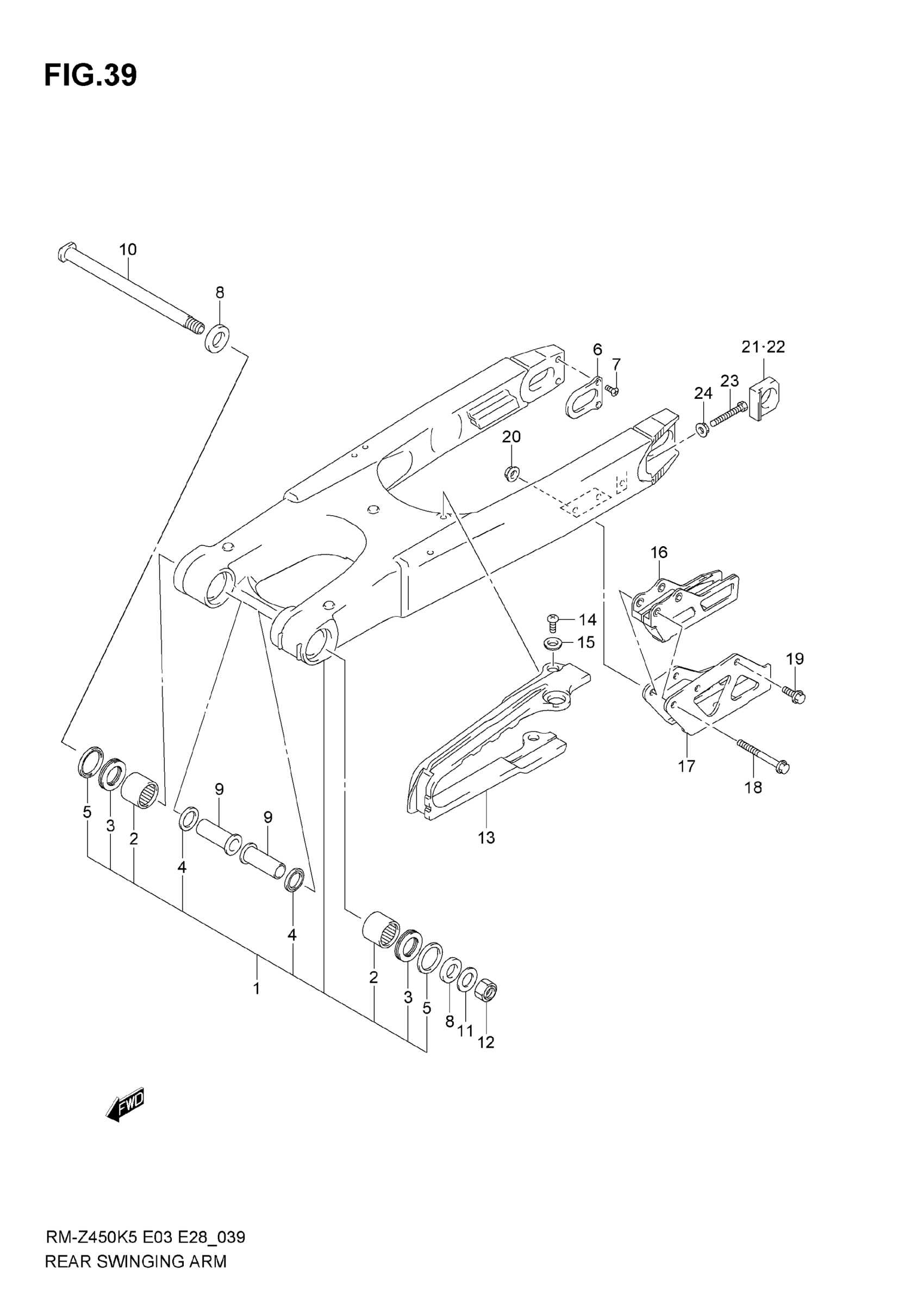

Suzuki RM-Z450 (2007) REAR SWINGING ARM Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR | MODEL K5

61000-35G00

Unavailable

1

SWINGING ARM ASSY, REAR | MODEL K6

61000-35G10

Unavailable

1

SWINGING ARM ASSY, REAR | MODEL K7; Includes Item(s) 2 - 7

61000-35G20

Unavailable

2

BEARING, PIVOT (22X29X30)

09263-22017

$20.38

3

BEARING, OUTER (22X35X2)

09263-22064

$30.12

4

.SEAL,OIL (21X29X4) This part replaces 09285-22001.

09285-22006

$3.46

5

SEAL, OUTER (29.2X37X4)

61262-36E00

$6.52

6

PLATE, SWINGINGARM, REAR

61128-35G00

Unavailable

7

SCREW This part replaces 02122-04103.

02122-0410A

$1.22

8

SPACER, PIVOT OUTER

61251-36E01

$12.39

9

SPACER, PIVOT INNER

61252-37F01

$49.82

10

SHAFT, PIVOT

61211-35G00

$95.37

11

WASHER This part replaces 08322-01163.

08322-0116A

$1.86

12

NUT

09159-16007

$11.37

13

BUFFER, CHAIN TOUCH DEFENSE | MODEL K5

61273-37F10

$81.08

13

BUFFER, CHAIN TOUCH DEFENSE | MODEL K6

61273-37F20

$85.00

13

BUFFER, CHAIN TOUCH DEFENSE | MODEL K7 This part replaces 61273-35G00.

61273-35G10

$60.35

14

SCREW This part replaces 02112-05083.

02112-0508A

$1.43

15

WASHER

09169-05022

$3.21

16

GUIDE, CHAIN | MODEL K5

61341-35G00

$43.99

16

GUIDE, CHAIN | MODEL K6/K7

61341-35G10

$64.70

17

PLATE, GUIDE OUTER

61342-37F00

$72.75

18

BOLT, UPPER

09103-06242

$2.80

19

BOLT, REAR

09103-06233

$2.18

20

NUT This part replaces 08316-10063.

08316-1006B

$2.50

21

WASHER, CHAIN ADJUSTER, R

61445-35G00

Unavailable

22

WASHER,CHAIN ADJUSTER LH This part replaces 61446-35G00.

61446-35G01

$41.32

23

BOLT (8X50)

09100-08287

$2.80

24

NUT

09159-08034

$1.62
