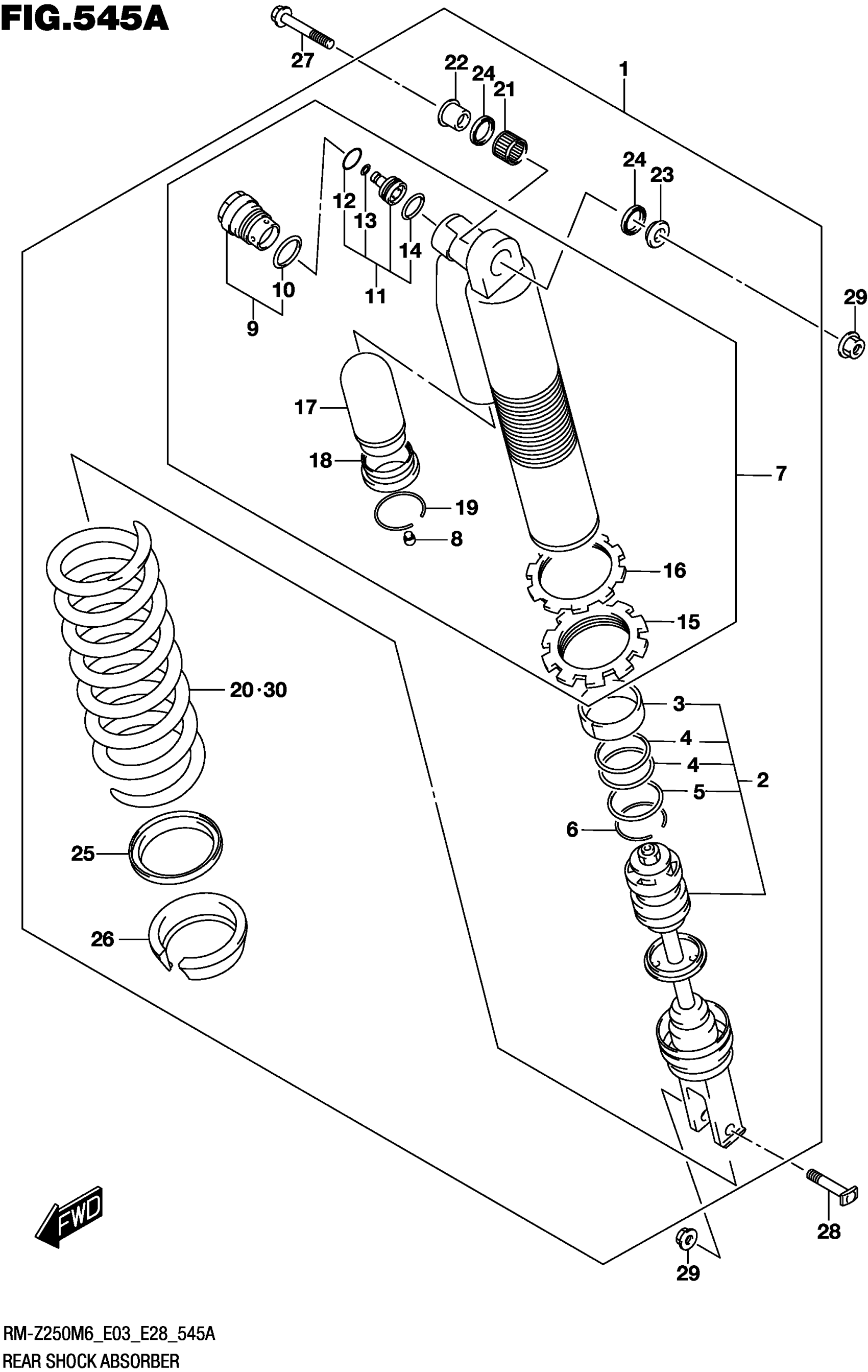

Suzuki RM-Z250M6 (2026) REAR SHOCK ABSORBER Diagram

#

Description
Price

1

ABSORBER ASSY,REAR SHOCK (BLA | K)

62100-46K11-019

$897.65

2

.ROD SUBASSY,PISTON

62120-46K01

$543.67

3

..RING,PISTON

62131-49HE0

$34.93

4

..O RING

62152-49HE1

$3.78

5

..O RING

62153-49HE1

$3.78

6

.RING,STOP

62279-49HE0

$2.37

7

.CYLINDER

62160-46K00

$346.40

8

..CAP,VALVE AIR

51294-40400

$9.17

9

..VALVE ASSY

62130-46K00

$237.83

10

...O RING

62133-49HE0

$5.02

11

..VALVE

62170-46K00

$96.30

12

...WASHER

62135-49HE0

$2.37

13

...O RING

62136-49HE0

$2.25

14

...O RING

62134-49HE0

$3.17

15

..GUIDE,SPRING

62191-49HE0

$24.43

16

..NUT

62194-49HE0

$18.83

17

..BLADER

62273-49HE0

$34.93

18

..GUIDE

62275-49HE0

$57.75

19

..RING,STOP

62277-49HE0

$3.17

20

.SPRING,REAR (BLACK) | STD K=52

62211-46K00-019

Unavailable

21

.BEARING (16X22X12)

09263-16033

$18.28

22

.SPACER,UPPER BRG,R

62684-36F00

$26.03

23

.SPACER,UPPER BRG,L

62685-36F00

$17.25

24

OIL SEAL (16X22X2.5)

09284-16005

$6.27

25

.GUIDE SPRING

62222-49HE0

$17.52

26

.GUIDE SPRING

62221-46K00

$76.37

27

BOLT,RR SHOCK ABSORBER UPR

62311-28H00

$11.12

28

BOLT,RR SHOCK ABSORBER LWR

62221-37F30

$8.45

29

NUT

09159-10067

$5.60

30-1

SPRING,REAR (BLACK) | OPT SOFT K=50

62211-46K10-019

$326.92

30-2

SPRING,REAR (BLACK) | OPT HARD K=54

62211-46K20-019

$326.92
