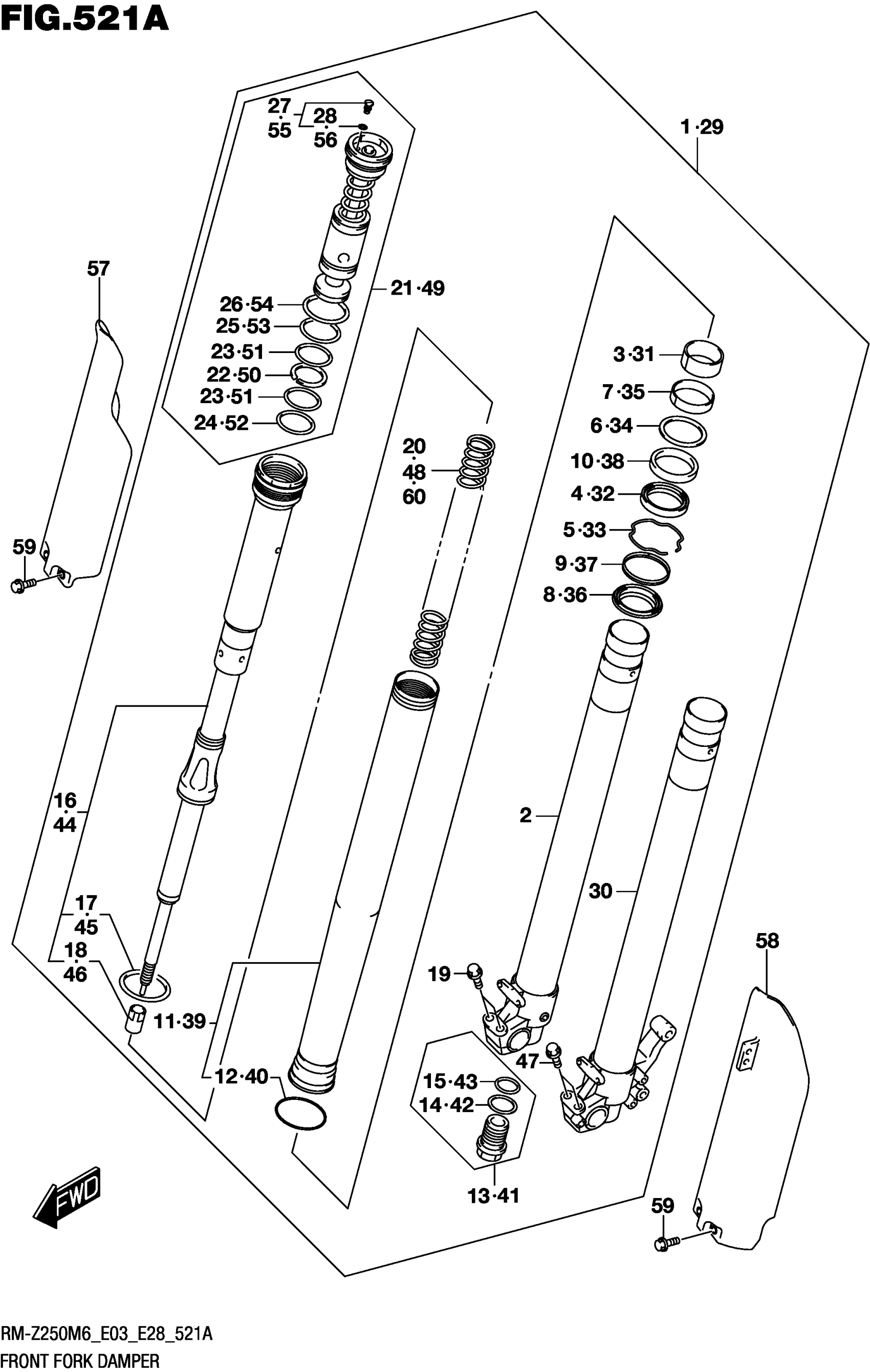

Suzuki RM-Z250M6 (2026) FRONT FORK DAMPER Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH

51103-46K00

$1,904.23

2

.TUBE, INNER RH

51110-46K00

$377.82

3

.PISTON

51127-49HE0

$36.98

4

.SEAL,OIL

51153-49HE0

$27.40

5

.RING,SNAP

51156-49HE0

$6.40

6

.WASHER

51158-46K00

$28.07

7

.METAL,SLIDE

51167-49HE0

$24.18

8

.SEAL,DUST

51173-49HE0

$17.16

9

.SCRAPER

51152-49HE0

$18.12

10

.COLLAR

51155-49HE0

$10.87

11

.TUBE, OUTER

51130-46K00

$557.53

12

..RING,SNAP

51211-49H40

$7.30

13

.ADJUSTER

51170-46K00

$44.85

14

..GASKET

51148-01B20

$4.12

15

O RING (D:2.4,ID:17.8) This part replaces 51181-43010.

09280-18004

$4.66

16

.CYLINDER ASSY

51190-46K00

$623.43

17

..O RING

51117-48G01

$2.88

18

..NUT

51814-49H40

$30.73

19

BOLT

51166-24F60

$5.10

20

.SPRING | STD K=5.0

51171-46K00

$35.62

21

.VALVE ASSY,BASE

51350-46K00

$351.80

22

..RING,BACKUP

51124-46K00

$4.05

23

..O RING

51174-46K00

$2.37

24

..O RING

51175-46K00

$2.37

25

..O RING

51186-46K00

$2.67

26

..O RING

51187-46K00

$2.43

27

..SCREW

51357-46K00

$4.28

28

...O RING

51358-46K00

$2.07

29

DAMPER ASSY, FRONT FORK LH

51104-46K00

$1,904.23

30

.TUBE, INNER LH

51120-46K00

$377.82

31

.PISTON

51127-49HE0

$36.98

32

.SEAL,OIL

51153-49HE0

$27.40

33

.RING,SNAP

51156-49HE0

$6.40

34

.WASHER

51158-46K00

$28.07

35

.METAL,SLIDE

51167-49HE0

$24.18

36

.SEAL,DUST

51173-49HE0

$17.16

37

.SCRAPER

51152-49HE0

$18.12

38

.COLLAR

51155-49HE0

$10.87

39

.TUBE, OUTER

51130-46K00

$557.53

40

..RING,SNAP

51211-49H40

$7.30

41

.ADJUSTER

51170-46K00

$44.85

42

..GASKET

51148-01B20

$4.12

43

O RING (D:2.4,ID:17.8) This part replaces 51181-43010.

09280-18004

$4.66

44

.CYLINDER ASSY

51190-46K00

$623.43

45

..O RING

51117-48G01

$2.88

46

..NUT

51814-49H40

$30.73

47

BOLT

51166-24F60

$5.10

48

.SPRING | STD K=5.0

51171-46K00

$35.62

49

.VALVE ASSY,BASE

51350-46K00

$351.80

50

..RING,BACKUP

51124-46K00

$4.05

51

..O RING

51174-46K00

$2.37

52

..O RING

51175-46K00

$2.37

53

..O RING

51186-46K00

$2.67

54

..O RING

51187-46K00

$2.43

55

..SCREW

51357-46K00

$4.28

56

...O RING

51358-46K00

$2.07

57

PROTECTOR,FRONT FORK,R

51501-28H60

$65.53

58

PROTECTOR,FRONT FORK,L

51510-28H70

$116.52

59

BOLT (6X10)

09111-06098

$3.30

60-1

SPRING,FRONT | SOFT K=4.9

51171-46K10

$35.62

60-2

SPRING,FRONT | HARD K=5.1

51171-46K20

$35.62
