Description

Price

1

GRIP,THROTTLE

57110-10H11

$63.18

2

CASE ASSY,THROTTLE

57100-10H01

$124.42

3

COLLAR,THROTTLE CASE

57151-35G00

$10.07

4

COVER,THROTTLE CASE

57129-35G00

$16.72

5

LEVER ASSY,BRAKE

57310-37F00

$32.49

6

BOLT, BRAKE LEVER

57431-14500

$5.75

7

NUT This part replaces 57442-14500.

08316-1006B

$2.50

8

COVER,BRAKE LEVER

57343-35G00

$21.48

9

GRIP,L

57211-28H00

$23.02

10

LEVER ASSY,CLUTCH

57500-35G31

$122.25

11

.LEVER,CLUTCH

57621-35G10

$19.83

12

.BOLT

57431-35G00

$38.98

13

.ADJUSTER,CLUTCH CABLE

57441-37F00

$153.90

14

.BALL

06111-06003

$1.24

15

.SPRING

57518-37K00

$9.07

16

.SCREW (6X8)

09134-06009

$2.58

17

.HOLDER,CLUTCH LEVER

57511-35G00

$44.33

18

.BRACKET, CLUTCH LEVER HOLDER

57512-28C00

$28.93

19

.BOLT, BRACKET This part replaces 57513-35G00.

57513-29F10

$7.03

20

.NUT

08310-00057

$1.83

21

COVER,CLUTCH LEVER

57341-28H01

$12.08

22

COVER,CLUTCH ADJUSTER

57342-37F01

$8.63

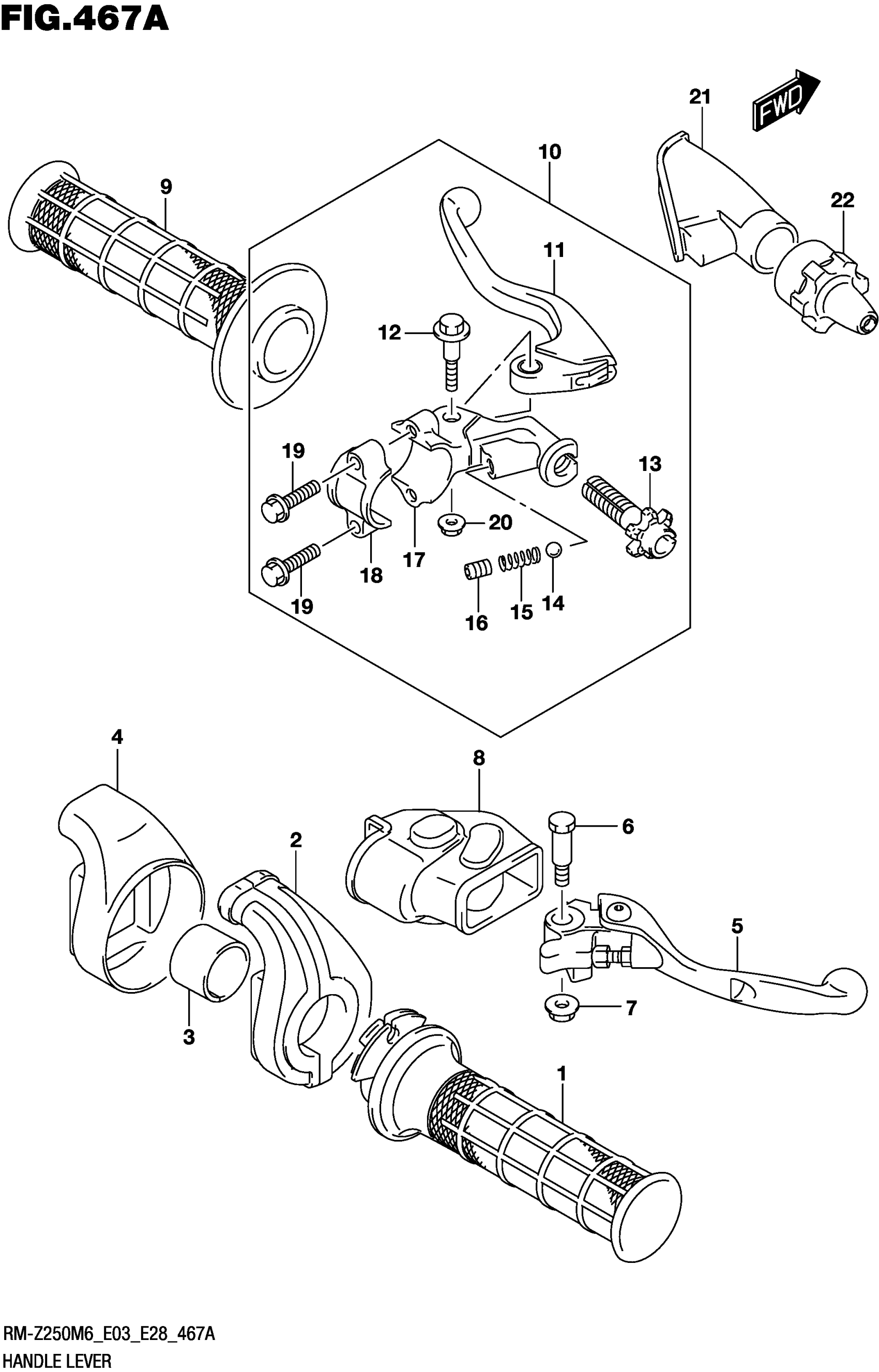

Suzuki RM-Z250M6 (2026) HANDLE LEVER Diagram
