2022 Suzuki RM-Z250M2 Throttle Body Diagram

← All diagrams

Find the part on the Throttle Body diagram for your 2022 Suzuki RM-Z250M2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

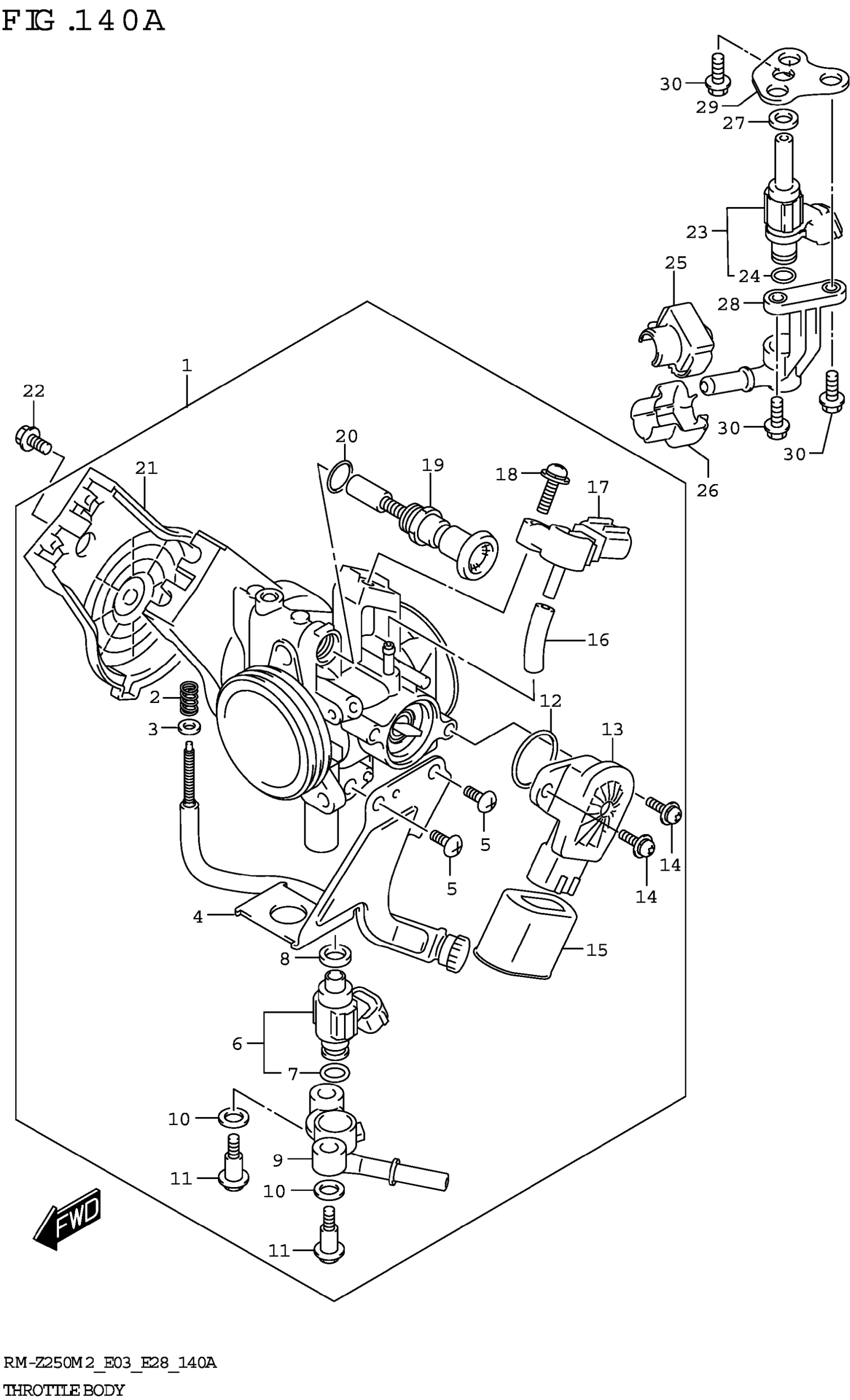

2022 Suzuki RM-Z250M2 Throttle Body Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY ASSY,THROTTLE

13041-46K01

1
Out of stock

2

.SPRING

13271-96110

1
Out of stock

3

.WASHER

13615-43010

1

$3.67

In stock

4

.ADJUSTER SCREW ASSY

13270-46K00

1
Out of stock

5

.SCREW

13602-02F00

2
Out of stock

6

.INJECTOR ASSY

15710-37K00

1
Out of stock

7

.O-RING

15717-58B00

1
Out of stock

8

SEAL

15722-14J00

1
Out of stock

9

.DELIVERY PIPE

15731-37K00

1
Out of stock

10

PACKING

13602-29G01

2
Out of stock

11

SCREW

13601-11J00

2
Out of stock

12

.O-RING

13575-31G00

1
Out of stock

13

.SENSOR ASSY

13580-37K00

1
Out of stock

14

.SCREW

13605-37K00

2
Out of stock

15

.COVER

13589-37K00

1
Out of stock

16

HOSE (L:425)

13683-10F61

1
Out of stock

17

SENSOR,BOOST

18590-18K00

1
Out of stock

18

SCREW

13437-14J00

1
Out of stock

19

.PLUNGER ASSY

13411-37K00

1
Out of stock

20

.O RING (16)

13278-47091

1

$2.01

In stock

21

.COVER,THROTTLE

13484-37K00

1
Out of stock

22

SCREW,THROTTLE COVER

13601-37K00

1
Out of stock

23

INJECTOR ASSY,FUEL

15710-46K10

1
Out of stock

24

.O-RING

15717-58B00

1
Out of stock

25

COVER,2ND INJECTOR NO.1

15719-46K00

1
Out of stock

26

COVER,2ND INJECTOR NO.2

15719-46K10

1
Out of stock

27

SEAL

15722-14J00

1
Out of stock

28

PIPE,2ND INJECTOR

15910-46K00

1
Out of stock

29

BRACKET,2ND INJECTOR

15921-46K00

1
Out of stock

30

BOLT

07120-0612A

3
Out of stock
