2022 Suzuki RM-Z250M2 Fuel Pump Diagram

← All diagrams

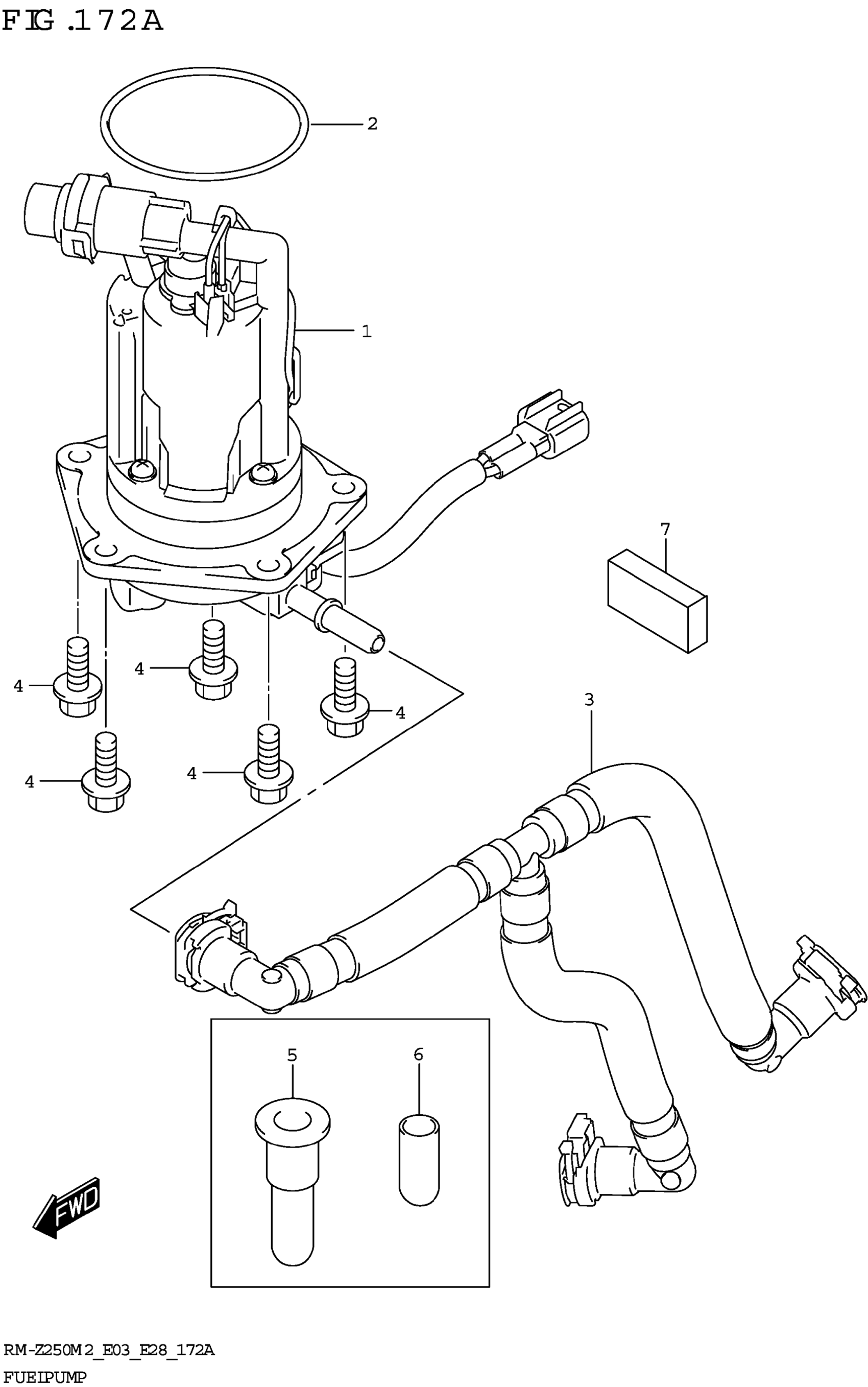

Find the part on the Fuel Pump diagram for your 2022 Suzuki RM-Z250M2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Suzuki RM-Z250M2 Fuel Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP ASSY,FUEL

15100-46K01

1
Out of stock

2

O-RING

15111-28H00

1
Out of stock

3

HOSE,FUEL

15810-46K00

1
Out of stock

4

BOLT

01547-0620A

5
Out of stock

5

CAP,FUEL HOSE

15819-28H00

1
Out of stock

6

CAP,FUEL PUMP

15114-28H00

1
Out of stock

7

CUSHION,FR LEG SHIELD

48116-19K00

1
Out of stock
