2022 Suzuki RM-Z250M2 Clutch Diagram

← All diagrams

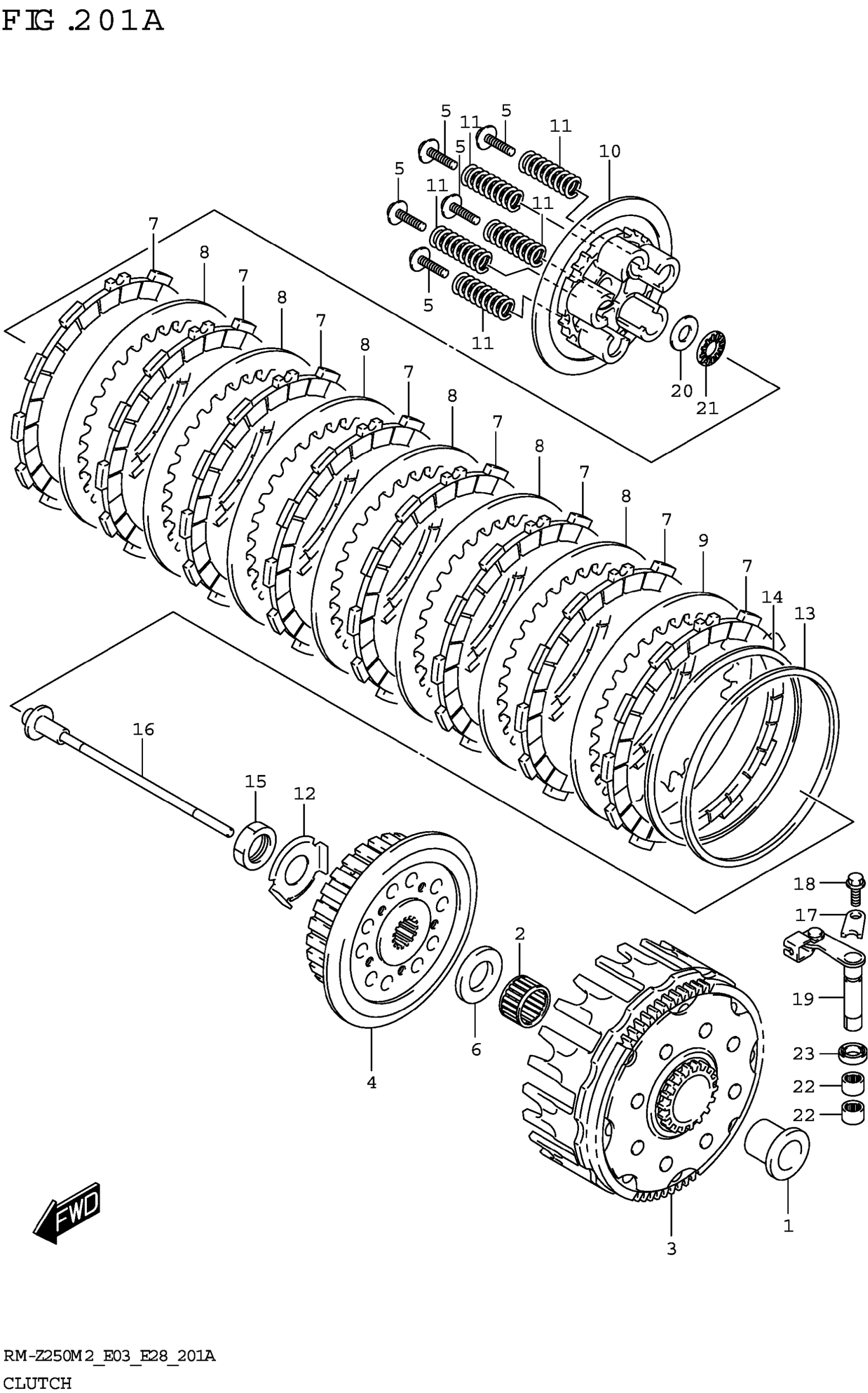

Find the part on the Clutch diagram for your 2022 Suzuki RM-Z250M2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Suzuki RM-Z250M2 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPACER,PRIMARY DRIVEN GEAR (N | :18/63)

21251-10H00

1
Out of stock

2

BEARING (27X32X21.8)

09263-27004

1
Out of stock

3

GEAR ASSY,PRIMARY DRIVEN (NT: | 8/63)

21200-49H10

1
Out of stock

4

HUB,CLUTCH SLEEVE

21411-10H10

1
Out of stock

5

BOLT,CLUTCH SPRING (6X35)

21412-45G00

5
Out of stock

6

WASHER (22X45X3)

09160-22083

1
Out of stock

7

PLATE,CLUTCH DRIVE,N0.2 (T:2. | )

21441-40F10

8
Out of stock

8

PLATE,CLUTCH DRIVEN (T:1.6)

21451-10H00

6
Out of stock

9

PLATE,CLUTCH DRIVEN (T:1.6)

21452-10H00

1
Out of stock

10

DISC,CLUTCH PRESSURE

21462-10H00

1
Out of stock

11

SPRING,CLUTCH

21413-46K00

5
Out of stock

12

WASHER,CLUTCH SLEEVE HUB LOCK

21416-49H00

1
Out of stock

13

SEAT,CLUTCH PLATE WAVE WASHER

21471-40F00

1
Out of stock

14

WASHER,CLUTCH PLATE

21472-10H00

1
Out of stock

15

NUT,CLUTCH SLEEVE HUB

21414-49H00

1
Out of stock

16

ROD,CLUTCH PUSH

23110-46K00

1
Out of stock

17

RETAINER,CL RELEASE CAMSHAFT

23117-10H00

1
Out of stock

18

BOLT

01547-0612A

1
Out of stock

19

CAMSHAFT,CLUTCH RELEASE

23200-49H20

1
Out of stock

20

SHIM (12X26X0.8)

09181-12016

1
Out of stock

21

BEARING (12X26X2)

09263-12019

1
Out of stock

22

BEARING (10X14X10)

09263-10014

2
Out of stock

23

SEAL,OIL (10X17X5)

09285-10004

1
Out of stock
