2018 Suzuki RM-Z250L8 Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 2018 Suzuki RM-Z250L8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

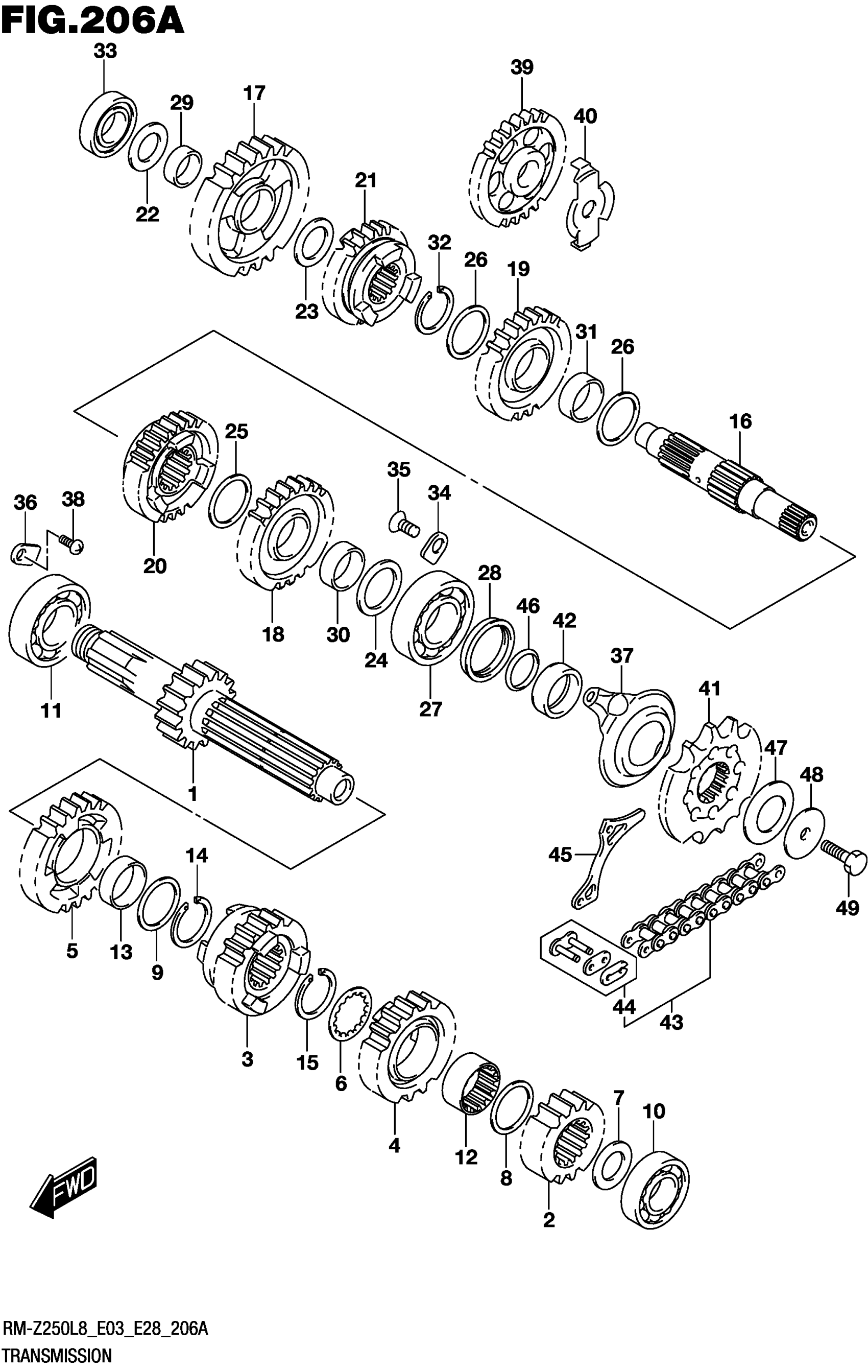

2018 Suzuki RM-Z250L8 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT

24120-49H10

1
Out of stock

2

GEAR

24221-49H10

1
Out of stock

3

GEAR,3RD DRIVE (NT:17)

24231-49H10

1
Out of stock

4

GEAR,4TH DRIVE (NT:21)

24241-49H10

1
Out of stock

5

GEAR,5TH DRIVE (NT:22)

24251-49H10

1
Out of stock

6

WASHER,4TH DRIVE GEAR

24243-49H00

1
Out of stock

7

SHIM (17X28X1.0)

09181-17195

1
Out of stock

8

SHIM (24X30X1)

09181-24008

1
Out of stock

9

SHIM (24X30X1)

09181-24008

1
Out of stock

10

BEARING (17X40X9.5) | LH

09262-17040

1
Out of stock

11

BEARING (22X50X14) | RH

09262-22018

1
Out of stock

12

BUSH,4TH DRIVE GEAR

24242-49H00

1
Out of stock

13

BUSH,5TH DRIVE GEAR

24252-49H00

1
Out of stock

14

CIRCLIP

09380-24007

1
Out of stock

15

CIRCLIP

09380-24007

1
Out of stock

16

SHAFT,DRIVE

24131-49H10

1
Out of stock

17

GEAR,1ST DRIVEN (NT:28)

24311-49H10

1
Out of stock

18

GEAR

24321-49H10

1
Out of stock

19

GEAR,3RD DRIVEN (NT:25)

24331-49H10

1
Out of stock

20

GEAR,4TH DRIVEN (NT:26)

24341-49H10

1
Out of stock

21

GEAR,5TH DRIVEN (NT:24)

24351-49H10

1
Out of stock

22

SHIM (17X28X1.0)

09181-17195

1
Out of stock

23

SHIM (20X28X1.0)

09181-20167

1
Out of stock

24

SHIM (22X30X1.0)

09181-22167

1
Out of stock

25

SHIM (24X30X1)

09181-24008

1
Out of stock

26

SHIM (24X30X1)

09181-24008

2
Out of stock

27

BEARING (22X52X15) | LH

09262-22040

1
Out of stock

28

OIL SEAL (28X38X7.5)

09289-28012

1
Out of stock

29

BUSH (20X24X10)

09300-20037

1
Out of stock

30

BUSH,2ND DRIVEN GEAR

24323-49H00

1
Out of stock

31

BUSH,2ND DRIVEN GEAR

24323-49H00

1
Out of stock

32

CIRCLIP

09380-24007

1
Out of stock

33

BEARING (17X40X12) | RH

09262-17023

1
Out of stock

34

RETAINER

24741-20A00

1
Out of stock

35

SCREW (6X12)

09126-06011

1
Out of stock

36

RETAINER

24741-21A00

1
Out of stock

37

RETAINER,DRIVE SHAFT OIL SEAL

24751-49H00

1
Out of stock

38

SCREW (6X12)

09125-06122

1
Out of stock

39

GEAR,KICK STARTER IDLE (NT:28

26260-49H10

1
Out of stock

39

GEAR,KICK STARTER IDLE (NT:28

26260-49H10

1
Out of stock

40

WASHER,ENG SPROCKET BOLT LOCK

27516-28H00

1
Out of stock

41

SPROCKET,ENGINE (NT:13)

27511-49H10

1
Out of stock

42

SPACER,ENGINE SPROCKET

27531-49H00

1
Out of stock

43

CHAIN ASSY,DRIVE This part replaces 27600-43D02-114.

27600-46K00-114

1
Out of stock

44

.JOINT SET,CHAIN This part replaces 27620-43D02.

27620-46K00

1
Out of stock

45

PLATE,FRONT CHAIN GUIDE

27641-28H00

1
Out of stock

46

D-RING,SPROCKET SPACER

27515-49H00

1
Out of stock

47

WASHER,ENGINE SPROCKET WAVE

27514-49H00

1
Out of stock

48

WASHER,ENGINE SPROCKET

27513-49H00

1
Out of stock

49

BOLT,ENGINE SPROCKET

27517-28H00

1
Out of stock
