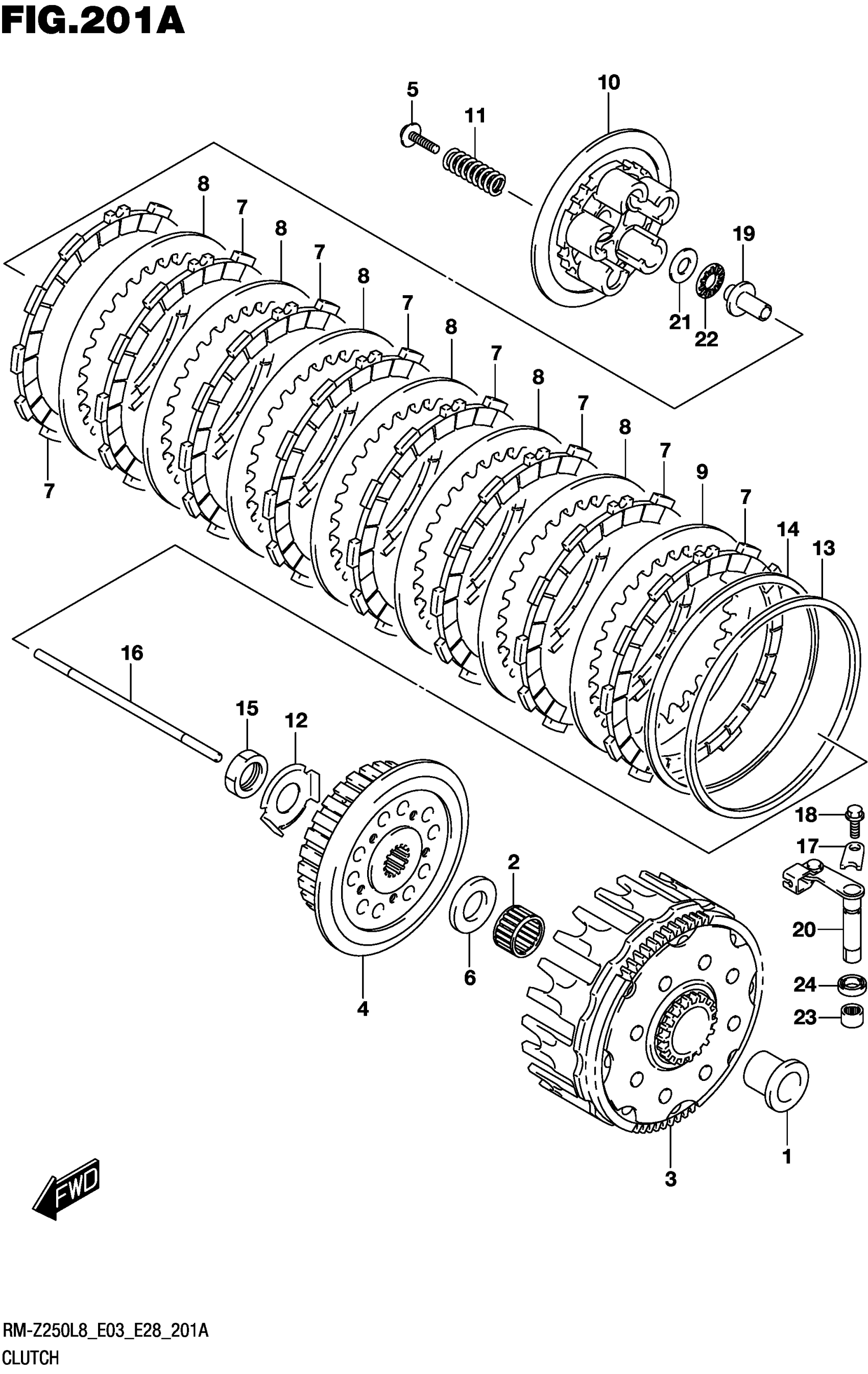

Suzuki RM-Z250L8 (2018) CLUTCH Diagram

#

Description
Price

1

SPACER,PRIMARY DRIVEN GEAR (N

21251-10H00

$56.78

2

BEARING (27X32X21.8)

09263-27004

$36.03

3

GEAR ASSY,PRIMARY DRIVEN (NT:

21200-49H10

$256.04

3

GEAR ASSY,PRIMARY DRIVEN (NT:

21200-49H10

$256.04

4

HUB,CLUTCH SLEEVE

21411-10H10

$121.15

5

BOLT,CLUTCH SPRING (6X35)

21412-45G00

$3.19

6

WASHER (22X45X3)

09160-22083

$15.50

7

PLATE,CLUTCH DRIVE,N0.2 (T:2.

21441-40F10

$21.62

8

PLATE,CLUTCH DRIVEN (T:1.6)

21451-10H00

$13.12

9

PLATE,CLUTCH DRIVEN (T:1.6)

21452-10H00

$17.77

10

DISC,CLUTCH PRESSURE

21462-10H00

$60.15

11

SPRING

21413-49H00

$7.73

12

WASHER,CLUTCH SLEEVE HUB LOCK

21416-49H00

$5.43

13

SEAT,CLUTCH PLATE WAVE WASHER

21471-40F00

$14.11

14

WASHER,CLUTCH PLATE

21472-10H00

$24.27

15

NUT,CLUTCH SLEEVE HUB

21414-49H00

$11.95

16

ROD

23110-37F00

$20.48

17

RETAINER,CL RELEASE CAMSHAFT

23117-10H00

$5.75

18

BOLT

01547-0612A

$2.09

19

PIECE

23121-49H10

$37.23

20

CAMSHAFT,CLUTCH RELEASE

23200-49H20

$90.02

21

SHIM (12X26X0.8)

09181-12016

$3.18

22

BEARING (12X26X2)

09263-12019

$13.57

23

BEARING (10X14X10)

09263-10014

$12.57

24

SEAL,OIL (10X17X5)

09285-10004

$3.13
