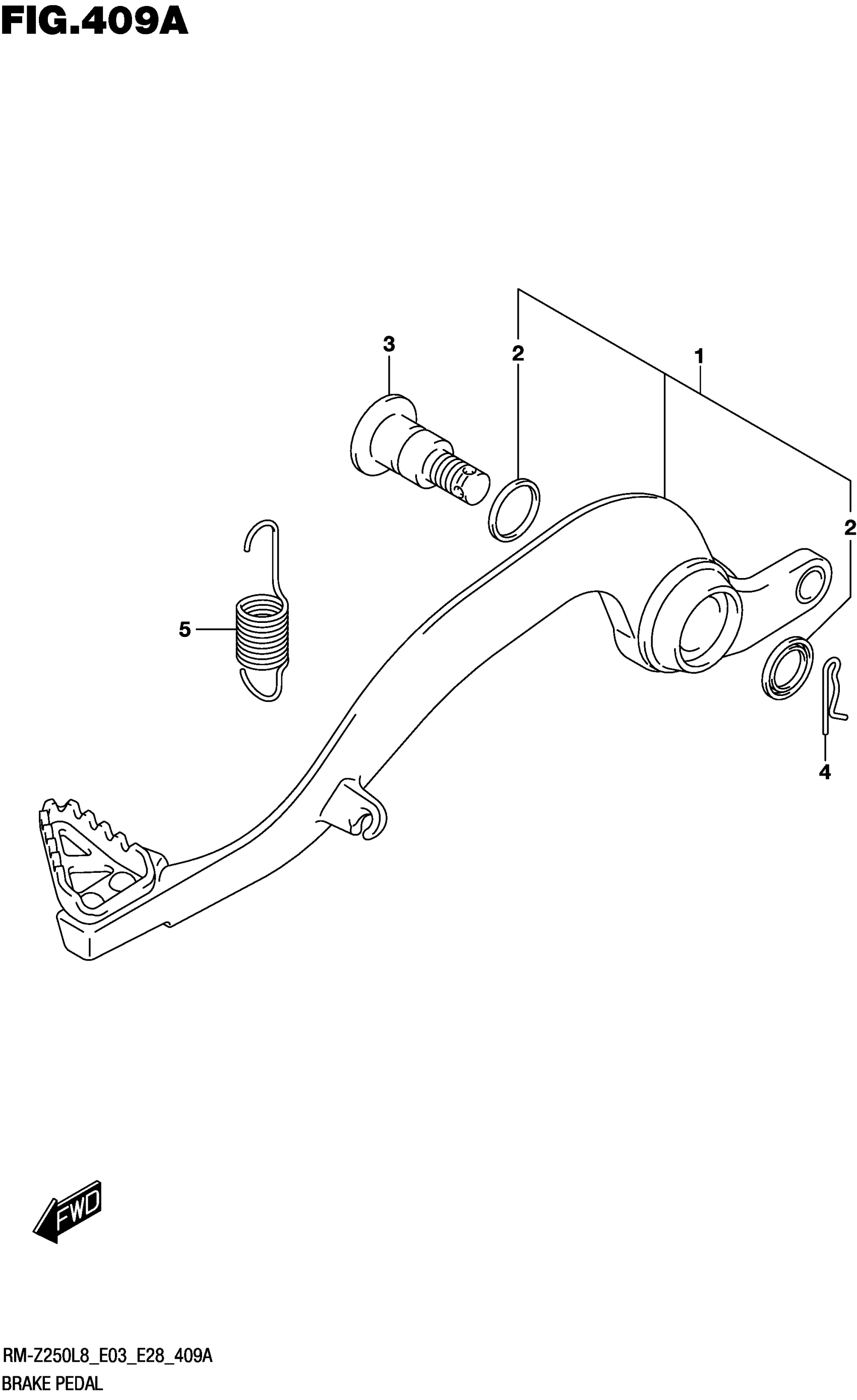

Suzuki RM-Z250L8 (2018) BRAKE PEDAL Diagram

#

Description

Price

1

PEDAL ASSY

43100-49H20

$170.05

2

.SEAL,OIL (15X21X3)

09284-15006

$3.21

3

SHAFT,BRAKE PEDAL

43142-28H00

$33.05

4

CLIP

09385-10005

$1.50

5

SPRING

09443-13037

$2.80
