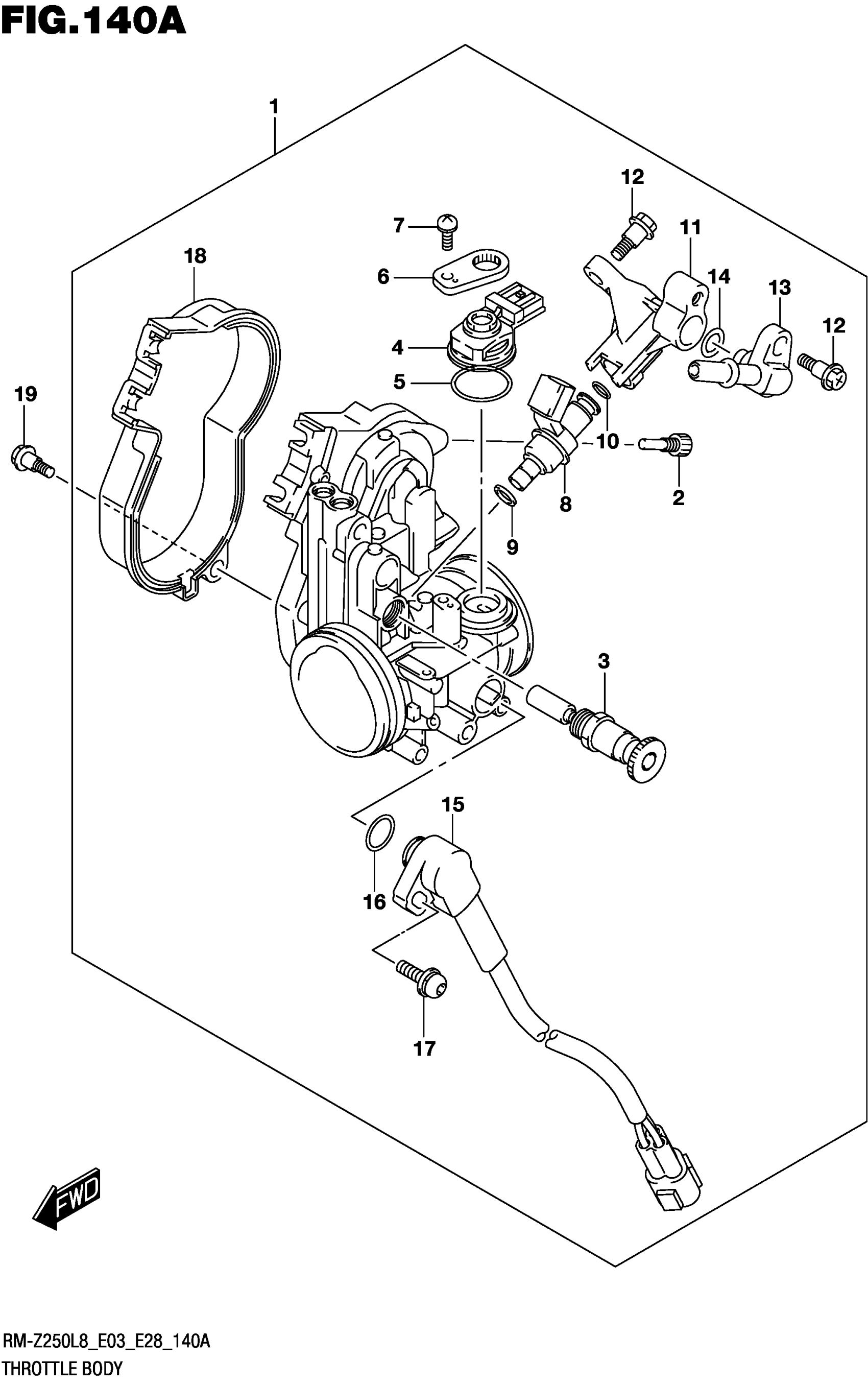

Suzuki RM-Z250L8 (2018) THROTTLE BODY Diagram

#

Description
Price

1

BODY ASSY

13041-49H20

$738.55

2

.SCREW

13296-28H00

Unavailable

3

.STARTER

13410-28H10

$97.40

4

.SENSOR,MAP

15620-05H00

$304.30

5

.O RING This part replaces 15621-05H00.

15621-05H01

$10.22

6

.PLATE

13565-28H10

$26.37

7

.SCREW

13601-15F20

Unavailable

8

.INJECTOR ASSY

15710-49H00

$357.70

9

.RING,SEAL

15722-21H00

$10.76

10

.O-RING

15721-21H00

$8.69

11

.FUEL PIPE

13471-49H00

Unavailable

12

.SCREW

13452-28H10

$7.62

13

.JOINT

13685-28H00

$46.07

14

.O-RING

15721-24F00

$8.69

15

.SENSOR ASSY

13580-49H00

$274.62

16

.O-RING

13575-40F00

$4.02

17

.SCREW

13605-40F00

$3.66

18

.COVER

13484-49H00

Unavailable

19

SCREW

13601-28H00

$4.28
