Description

Price

1

GRIP,THROTTLE This part replaces 57110-10H10.

57110-10H11

$63.18

2

CASE ASSY,THROTTLE This part replaces 57100-10H00.

57100-10H01

$124.42

3

COLLAR, THROTTLE CASE

57151-35G00

$10.07

4

COVER, THROTTLE CASE

57129-35G00

$16.72

5

LEVER ASSY, BRAKE

57310-37F00

$32.49

6

BOLT, BRAKE LEVER

57431-14500

$5.75

7

NUT

08316-1006A

$2.19

8

COVER, BRAKE LEVER

57343-35G00

$21.48

9

GRIP,L

57211-28H00

$23.02

10

LEVER ASSY, CLUTCH

57500-28H00

$181.72

11

LEVER, CLUTCH

57621-35G10

$19.83

12

BOLT

57431-35G00

$38.98

13

ADJUSTER, CLUTCH CABLE

57441-37F00

$153.90

14

BALL

06111-06003

$1.24

15

SPRING

09440-04003

$1.48

16

SCREW (6X8)

09134-06009

$2.58

17

HOLDER, CLUTCH LEVER

57511-28H00

$47.45

18

.BRACKET, CLUTCH LEVER HOLDER

57512-28C00

$28.93

19

.BOLT, BRACKET

57513-29F10

$7.03

20

NUT

08310-00057

$1.83

21

COVER,CLUTCH LEVER This part replaces 57341-28H00.

57341-28H01

$12.08

22

COVER,CLUTCH ADJUSTER This part replaces 57342-37F00.

57342-37F01

$8.63

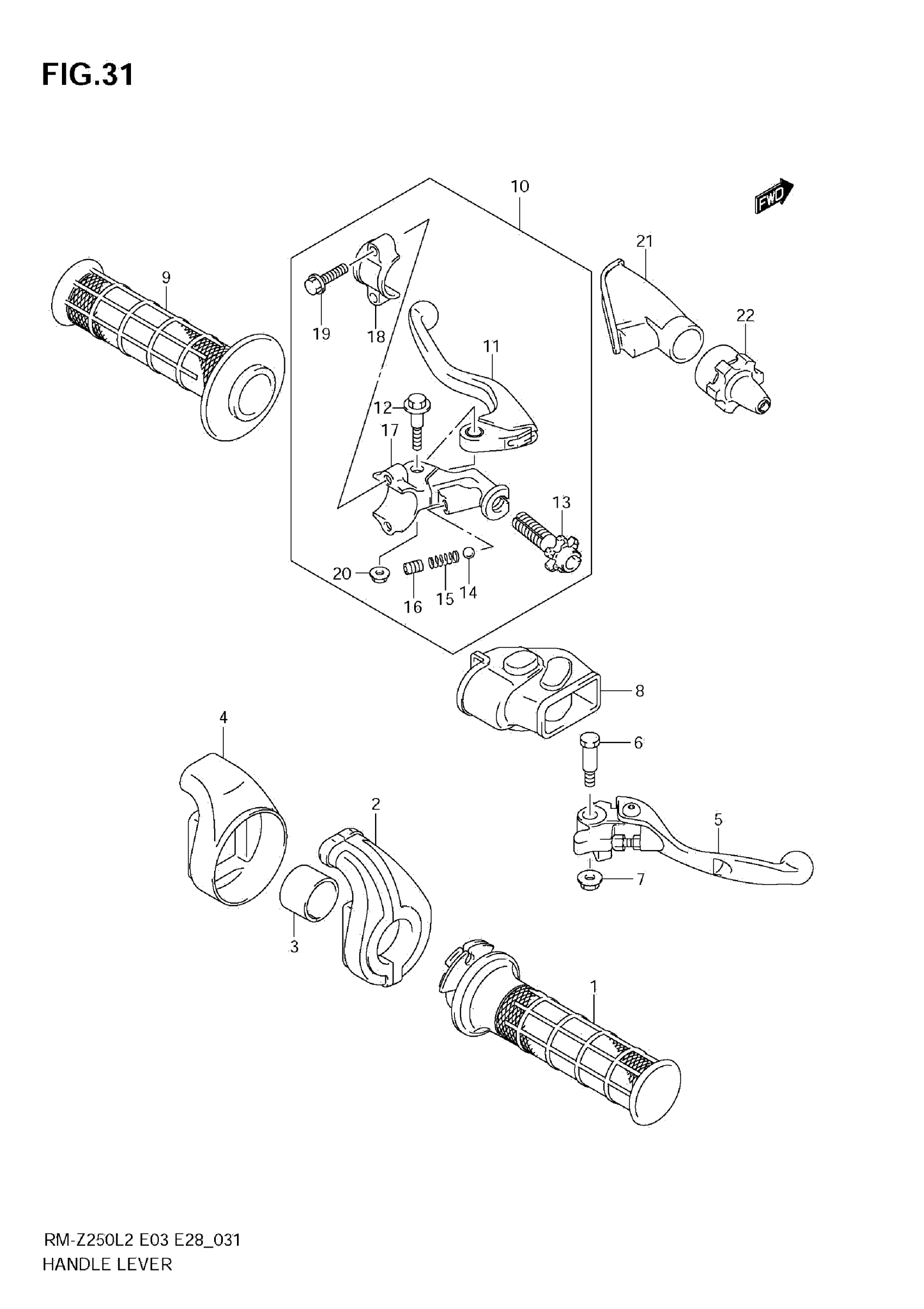

Suzuki RM-Z250L2 (2012) HANDLE LEVER Diagram
