Description

Price

1

HANDLEBAR This part replaces 56111-35G10.

56111-35G11

$275.10

2

PAD SET, HANDLEBAR

56170-35G20

Unavailable

3

CABLE ASSY,CLUT This part replaces 58210-49H10.

58210-49H11

$54.68

4

BRACKET, CLUTCH CABLE

58212-49H00

$27.67

5

BOLT (6X12)

01547-0612A

$2.01

6

CABLE SET, THROTTLE

58301-28H10

$142.70

7

GUIDE, THROTTLE CABLE

58311-49H00

Unavailable

8

SCREW (6X16)

09139-06139

$2.92

9

CABLE ASSY,HOT This part replaces 58900-28H00.

58900-28H01

$46.98

10

CLAMP (L:125)

09407-14403

$2.24

11

CLAMP (L:154)

09407-17403

$4.63

12

CLAMP

09403-18307

$3.38

13

CLAMP (L:145)

09407-14407

$2.80

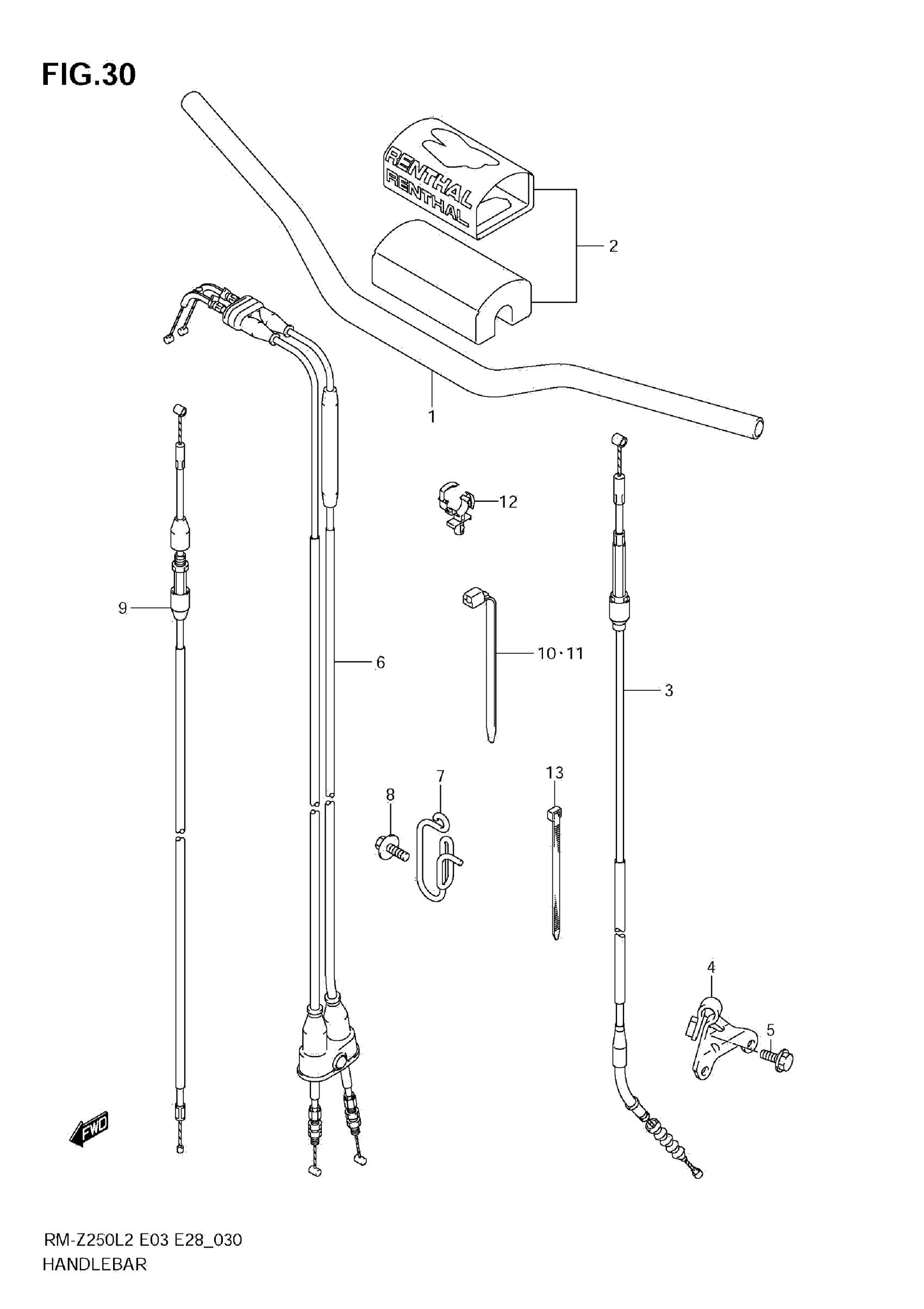

Suzuki RM-Z250L2 (2012) HANDLEBAR Diagram
