2012 Suzuki RM-Z250L2 Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 2012 Suzuki RM-Z250L2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

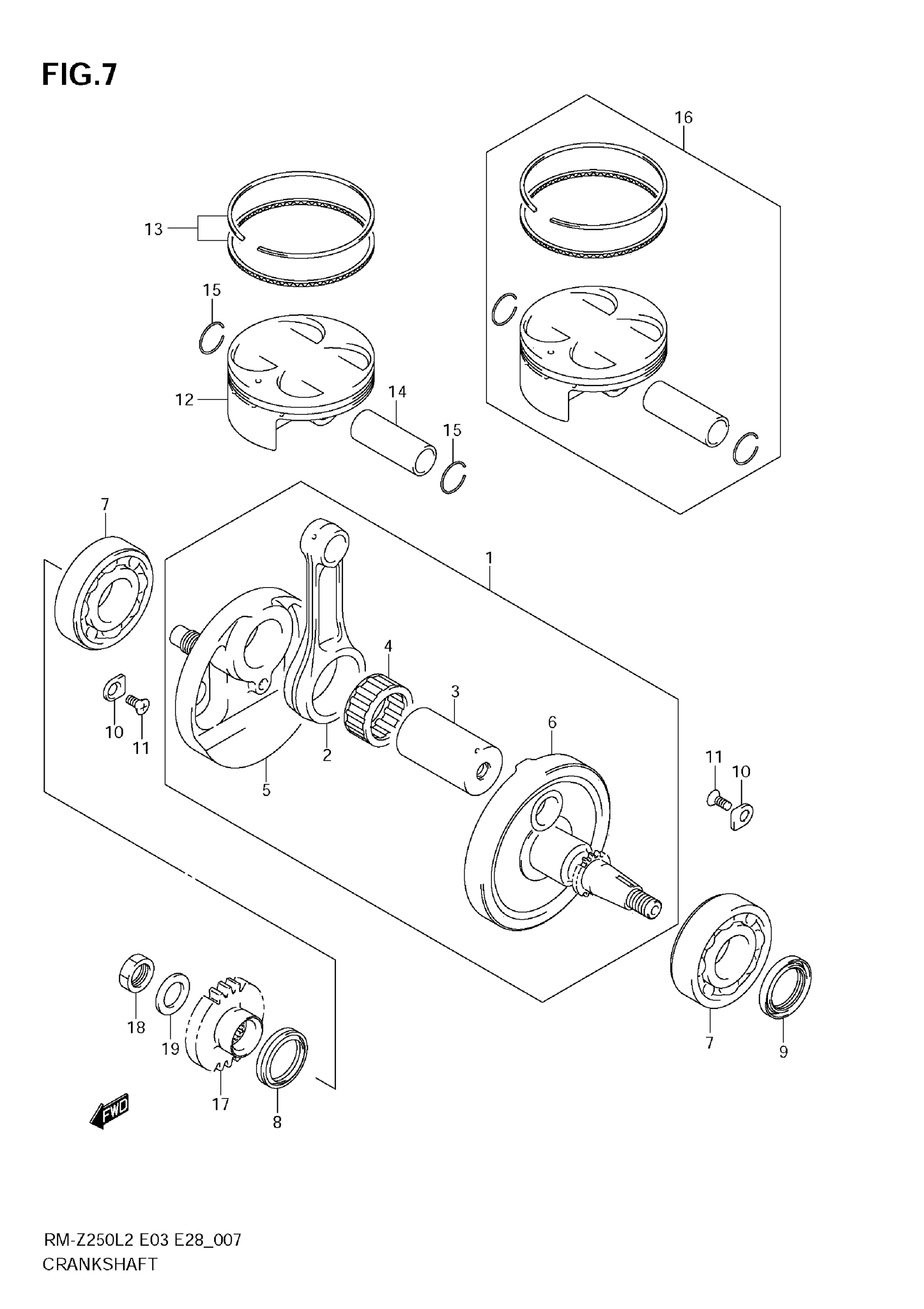

2012 Suzuki RM-Z250L2 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSY

12200-49H01

1
Out of stock

2

ROD, CONNECTING

12161-49H00-0B0

1
Out of stock

3

PIN

12210-10H11

1
Out of stock

4

BEARING (30X38X18)

09263-30060-0B0

1
Out of stock

5

CRANKSHAFT, RH

12220-49H00

1
Out of stock

6

CRANKSHAFT, LH

12261-49H00

1
Out of stock

7

BEARING (30X63X16)

09262-30122

2
Out of stock

8

SEAL,OIL (30X40X7) | RH This part replaces 09283-30061.

09283-30076

1
Out of stock

9

OIL SEAL (30X40X6) | LH

09283-30069

1
Out of stock

10

RETAINER

24741-37F00

4
Out of stock

11

SCREW (6X12)

09126-06011

4
Out of stock

12

PISTON

12111-49H00-0F0

1
Out of stock

13

RING SET, PISTON

12140-10810

1
Out of stock

14

PIN, PISTON

12151-10H00

1
Out of stock

15

CIRCLIP

09381-16001

2
Out of stock

16

PISTON KIT | OPT

12110-49810

1
Out of stock

17

GEAR, PRIMARY DRIVE

21111-49H00

1
Out of stock

18

NUT

09140-16036

1
Out of stock

19

WASHER

09164-16002

1
Out of stock
