2012 Suzuki RM-Z250L2 Crankcase Cover Diagram

← All diagrams

Find the part on the Crankcase Cover diagram for your 2012 Suzuki RM-Z250L2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

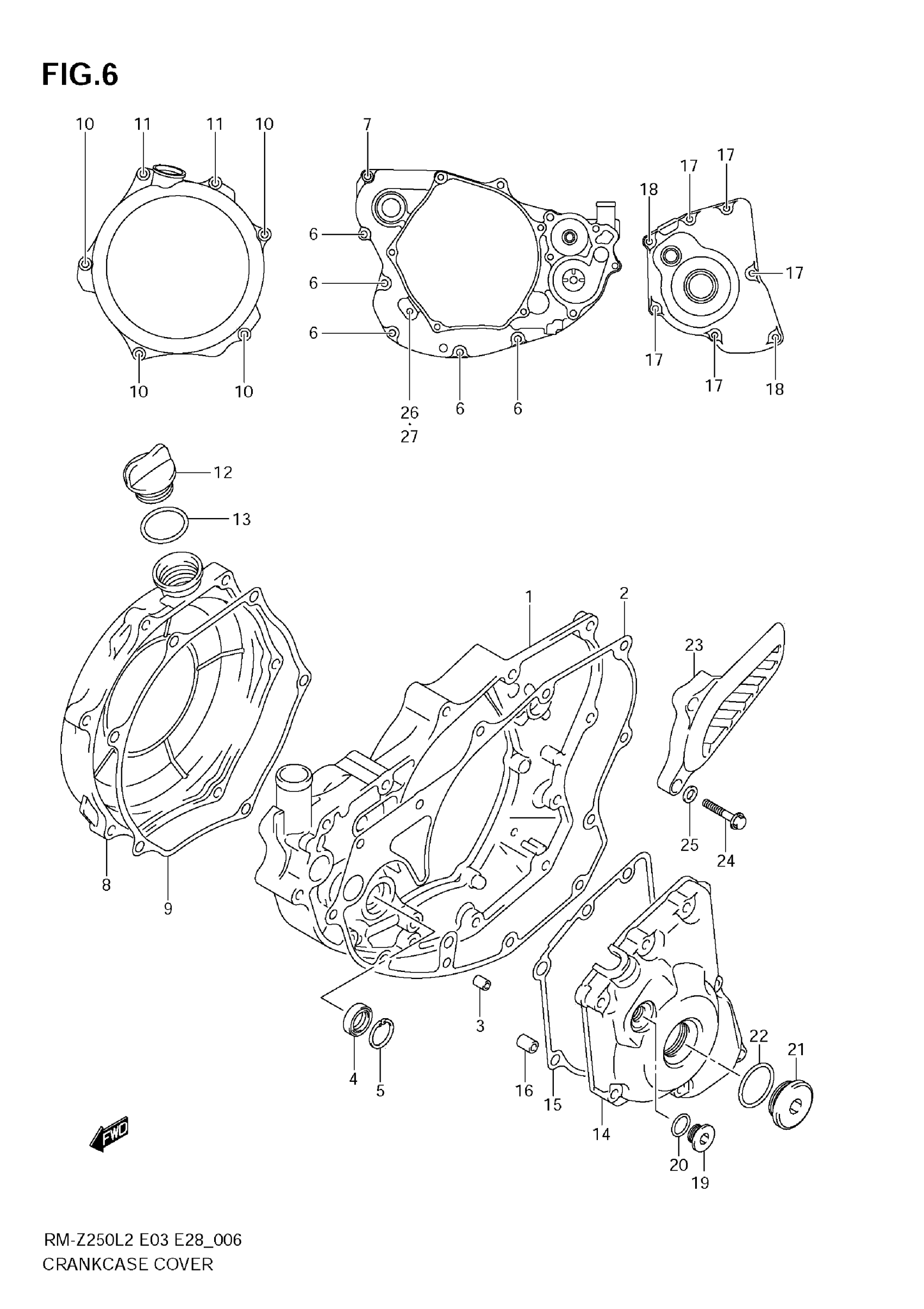

2012 Suzuki RM-Z250L2 Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CLUTCH This part replaces 11340-10H20.

11340-10H30

1
Out of stock

2

GASKET, CLUTCH COVER

11482-10H00

1
Out of stock

3

PIN

04211-09109

2
Out of stock

4

SEAL,OIL (12X22X6)

09282-12012

1
Out of stock

5

CIRCLIP This part replaces 08331-4124A.

08331-41249

1
Out of stock

6

BOLT

01547-0625A

5
Out of stock

7

BOLT

01547-0630A

1
Out of stock

8

COVER, CLUTCH OUTER

11371-10H10

1
Out of stock

9

GASKET, CLUTCH COVER OUTER

11484-10H00

1
Out of stock

10

BOLT

01547-0625A

4
Out of stock

11

BOLT

01547-0660A

2
Out of stock

12

PLUG

09259-20008-XC0

1
Out of stock

13

O RING (D:3.1,ID:16.8)

09280-17003

1
Out of stock

14

COVER, MAGNETO

11351-49H00

1
Out of stock

15

GASKET, MAGNETO COVER

11483-49H00

1
Out of stock

16

PIN

04211-09109

2
Out of stock

17

BOLT

01547-0630A

5
Out of stock

18

BOLT

01547-0635A

2
Out of stock

19

PLUG

09248-12007

1
Out of stock

20

O RING (D:1.9,ID:9.8)

09280-10016

1
Out of stock

21

PLUG

09259-26011

1
Out of stock

22

O RING (D:3.1,ID:22.7)

09280-22008

1
Out of stock

23

COVER, ENGINE SPROCKET

11360-35G00

1
Out of stock

24

BOLT

01547-0630A

2
Out of stock

25

WASHER

08322-0106B

2
Out of stock

26

.BOLT

07120-0610A

1
Out of stock

27

GASKET (5.8X13X1.2)

09168-06023

1
Out of stock
