2010 Suzuki RM-Z250L0 Front Damper Diagram

← All diagrams

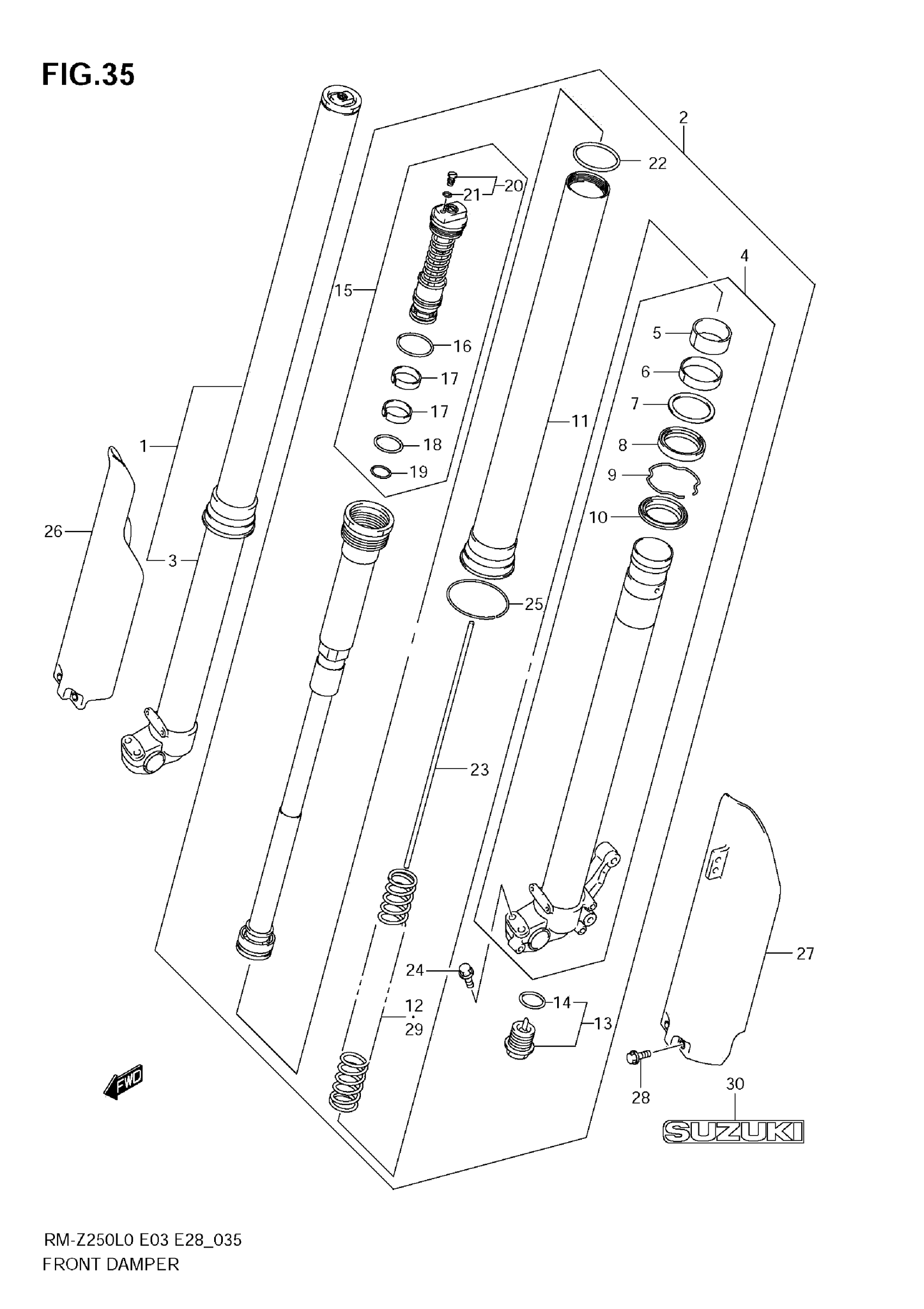

Find the part on the Front Damper diagram for your 2010 Suzuki RM-Z250L0, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2010 Suzuki RM-Z250L0 Front Damper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DAMPER ASSY, FRONT FORK RH

51103-49H00

1
Out of stock

2

DAMPER ASSY, FRONT FORK LH

51104-49H00

1
Out of stock

3

TUBE, INNER RH

51110-28H00

—
Out of stock

4

TUBE, INNER LH

51120-28H00

—
Out of stock

5

BUSH, GUIDE This part replaces 51121-28H00.

51121-28H10

2
Out of stock

6

BUSH, GUIDE This part replaces 51167-28H00.

51167-28H10

2
Out of stock

7

SPACER, SEAL

51158-36F00

2

$10.58

In stock

8

SEAL, OIL

51153-37F80

2

$29.39

In stock

9

2

$5.33

In stock

10

SEAL, DUST

51173-37F80

2

$26.50

In stock

11

TUBE, OUTER

51130-10H10

2
Out of stock

12

SPRING, FRONT (K=4.61)

51171-28H00

2
Out of stock

13

BOLT, CENTER

51170-37FC0

2
Out of stock

14

O RING

51177-36E20

2

$5.43

In stock

15

BOLT, FORK

51351-49H00

—
Out of stock

16

O RING

51117-37F80

2
Out of stock

17

BUSH, FORK BOLT SLIDE

51123-28H10

4
Out of stock

18

O RING

51174-36E40

2

$5.63

In stock

19

O RING

51175-37F80

2
Out of stock

20

..BOLT,PLUG

51357-36F20

2

$15.77

In stock

21

...O-RING

51358-28E30

2

$4.83

In stock

22

O RING

51118-37F80

2
Out of stock

23

ROD, PUSH

51191-10H10

2
Out of stock

24

BOLT

51328-37F80

4
Out of stock

25

RING STOPPER

51211-37FC0

2
Out of stock

26

PROTECTOR, RH

51501-28H00

1
Out of stock

27

PROTECTOR, LH

51511-28H00

1
Out of stock

28

BOLT (6X10)

09111-06098

6
Out of stock

29

SPRING, FRONT (SOFT K=4.41) | OPT

51171-28H10

2
Out of stock

29

SPRING, FRONT (HARD K=4.81) | OPT

51171-28H20

2
Out of stock

30

EMBLEM,SUZUKI This part replaces 68661-29F00-DPZ.

68661-29F01-DPZ

2
Out of stock
