Description

Price

1

HANDLEBAR

56111-35G00

Unavailable

2

PAD, HANDLEBAR

56170-35G10

Unavailable

3

CABLE ASSY,CLUT This part replaces 58210-49H00.

58210-49H11

$54.68

4

GUIDE, CLUTCH CABLE

58212-49H00

$27.67

5

BOLT

09103-06233

$2.18

6

CABLE SET, THROTTLE

58301-28H10

$142.70

7

GUIDE, THROTTLE CABLE

58311-49H00

Unavailable

8

BOLT

09116-06200

$4.03

9

CABLE ASSY,HOT This part replaces 58900-28H00.

58900-28H01

$46.98

10

CLAMP

09407-14403

$2.24

10

CLAMP

09407-17403

$4.63

11

CLAMP This part replaces 09403-10307.

09403-10328

$2.05

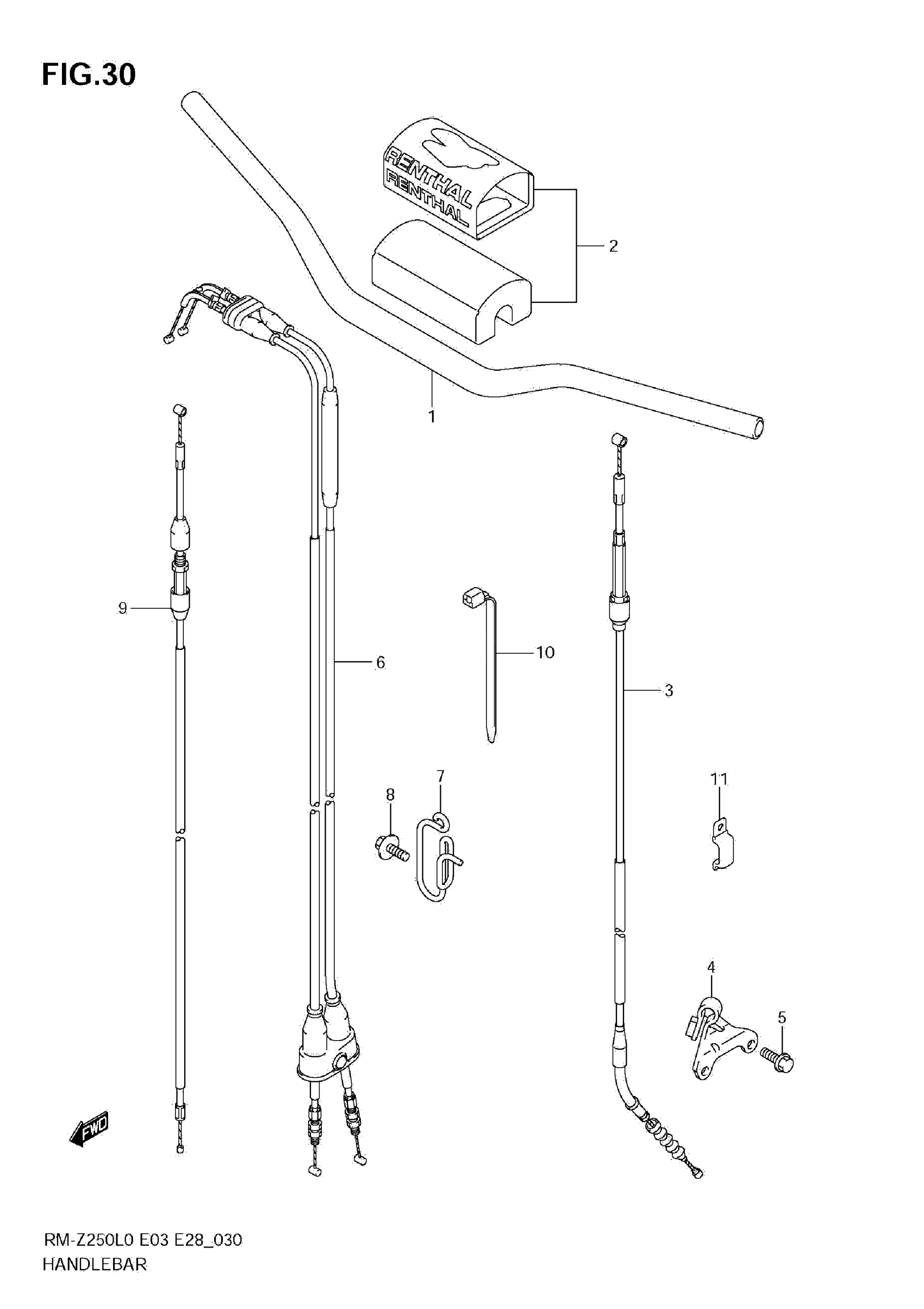

Suzuki RM-Z250L0 (2010) HANDLEBAR Diagram

HANDLEBAR

PAD, HANDLEBAR

CABLE ASSY,CLUT This part replaces 58210-49H00.

GUIDE, CLUTCH CABLE

BOLT

CABLE SET, THROTTLE

GUIDE, THROTTLE CABLE

BOLT

CABLE ASSY,HOT This part replaces 58900-28H00.

CLAMP

CLAMP

CLAMP This part replaces 09403-10307.
