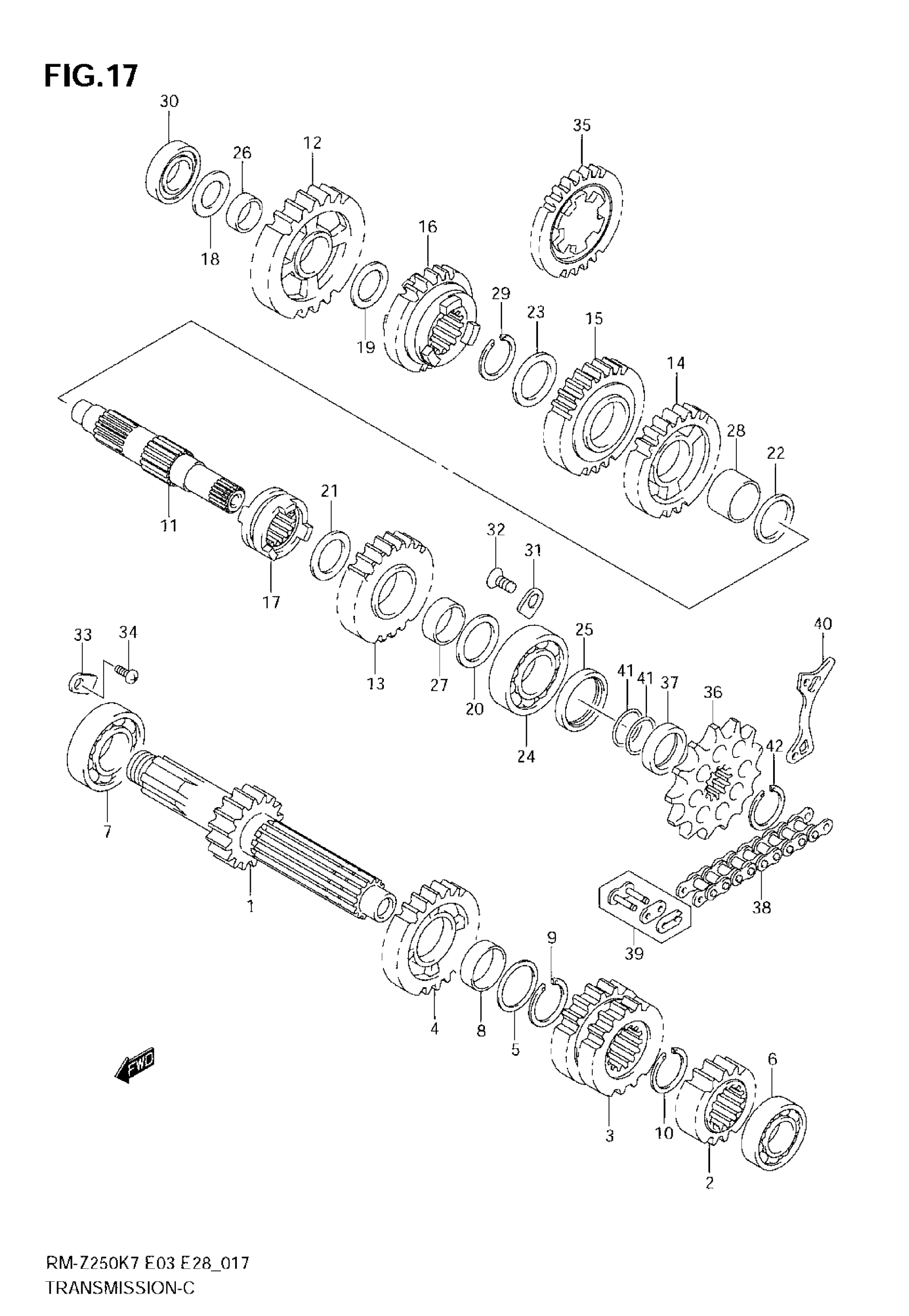

Suzuki RM-Z250 (2009) TRANSMISSION Diagram

#

Description
Price

1

SHAFT, COUNTER This part replaces 24120-10H00.

24120-10H01

Unavailable

2

GEAR, 2ND DRIVE This part replaces 24221-10H00.

24221-10H01

$72.58

3

GEAR, 3RD & 4TH DRIVE | NT:17/21 This part replaces 24231-10H00.

24231-10H10

$162.90

4

GEAR, 5TH DRIVE, NT:22

24251-10H00

$138.98

5

WASHER, 5TH DRIVE | 24X29X1.0

09181-24009

$4.62

6

BEARING, CNTR SHAFT, L | 17X40X9.5

09262-17040

$19.14

7

BEARING, CNTR SHAFT, R | 22X50X14

09262-22018

$27.83

8

BUSH, 5TH DRIVE | 24X27X9.0

09300-24004

Unavailable

9

CIRCLIP, 5TH DRIVE

09380-24007

$3.82

10

CIRCLIP, 2ND DRIVE

09380-24007

$3.82

11

SHAFT, DRIVE This part replaces 24131-10H00.

24131-10H01

Unavailable

12

GEAR, 1ST DRIVEN, NT:28

24311-10H01

$147.72

13

GEAR, 2ND DRIVEN, NT:30 This part replaces 24321-10H00.

24321-10H01

$147.72

14

GEAR, 3RD DRIVEN, NT:25

24331-10H00

$147.72

15

GEAR, 4TH DRIVEN, NT:26

24341-10H00

$147.72

16

GEAR, 5TH DRIVEN, NT:24

24351-10H00

$153.08

17

DOG, SLIDING This part replaces 24412-10H00.

24412-10H01

$105.98

18

WASHER, 1ST DRIVEN, R | 17X28X1.0

09181-17195

$2.81

19

WASHER, 1ST DRIVEN, L | 20X28X1.0

09181-20167

$2.64

20

WASHER, 2ND DRIVEN GEAR, L | 20X30X1.0

09181-20195

$2.68

21

WASHER, 2ND DRIVEN GEAR, R | 22X30X1.0

09181-22167

$2.80

22

WASHER, 3RD DRIVEN GEAR | 24X30X1.0

09181-24008

$4.45

23

WASHER, 4TH DRIVEN GEAR | 24X30X1.0

09181-24008

$4.45

24

BEARING, DRIVE SHAFT, L | 20X52X15

09262-20147

$91.60

25

SEAL, DRIVE SHAFT OIL | 28X38X7.5

09289-28012

$8.74

26

BUSH, 1ST DRIVEN GEAR | 20X24X10

09300-20037

$19.47

27

BUSH, 2ND DRIVEN GEAR | 22X25X12

09300-22020

Unavailable

28

BUSH, 3RD & 4TH DRIVEN | 24X27X18

09300-24003

$29.22

29

CIRCLIP, 4TH DRIVEN GEAR

09380-24007

$3.82

30

BEARING, DRIVE SHAFT, R | 17X40X12

09262-17023

$15.11

31

RETAINER

24741-20A00

$2.80

32

SCREW, DRIVE SHAFT (6X12)

09126-06011

$2.01

33

RETAINER, CNTR SHAFT

24741-21A00

$2.80

34

SCREW, CNTR SHAFT (6X12)

09125-06110

$2.13

35

GEAR, KICK STARTER IDLE

26260-10H00

$176.99

36

SPROCKET, ENGINE, NT:12

27511-14111

$25.90

36

SPROCKET, ENGINE, NT:13 | OPT

27511-14121

$38.62

37

SPACER, ENGINE SPROCKET

27531-43D00

$23.81

38

CHAIN ASSY,DRIVE | MODEL K7 DID520DMA2-SDH This part replaces 27600-43D01-112.

27600-46K00-114

$156.72

38

CHAIN ASSY, DRIVE | MODEL K8/K9 DID520DMA2-SDH-G&B

27600-10H00-112

Unavailable

39

.JOINT SET,CHAIN | MODEL K7 OPT This part replaces 27620-43D01.

27620-46K00

$10.80

39

JOINT SET, CHAIN | MODEL K8/K9 OPT

27620-10H00

Unavailable

40

PLATE, FRONT CHAIN GUIDE This part replaces 27641-10H00.

27641-10H01

$13.12

41

O RING, SPROCKET SPACER | D:1.9,ID:19.8

09280-20006

$1.77

42

CIRCLIP, ENGINE SPROCKET

09380-20007

$2.38
