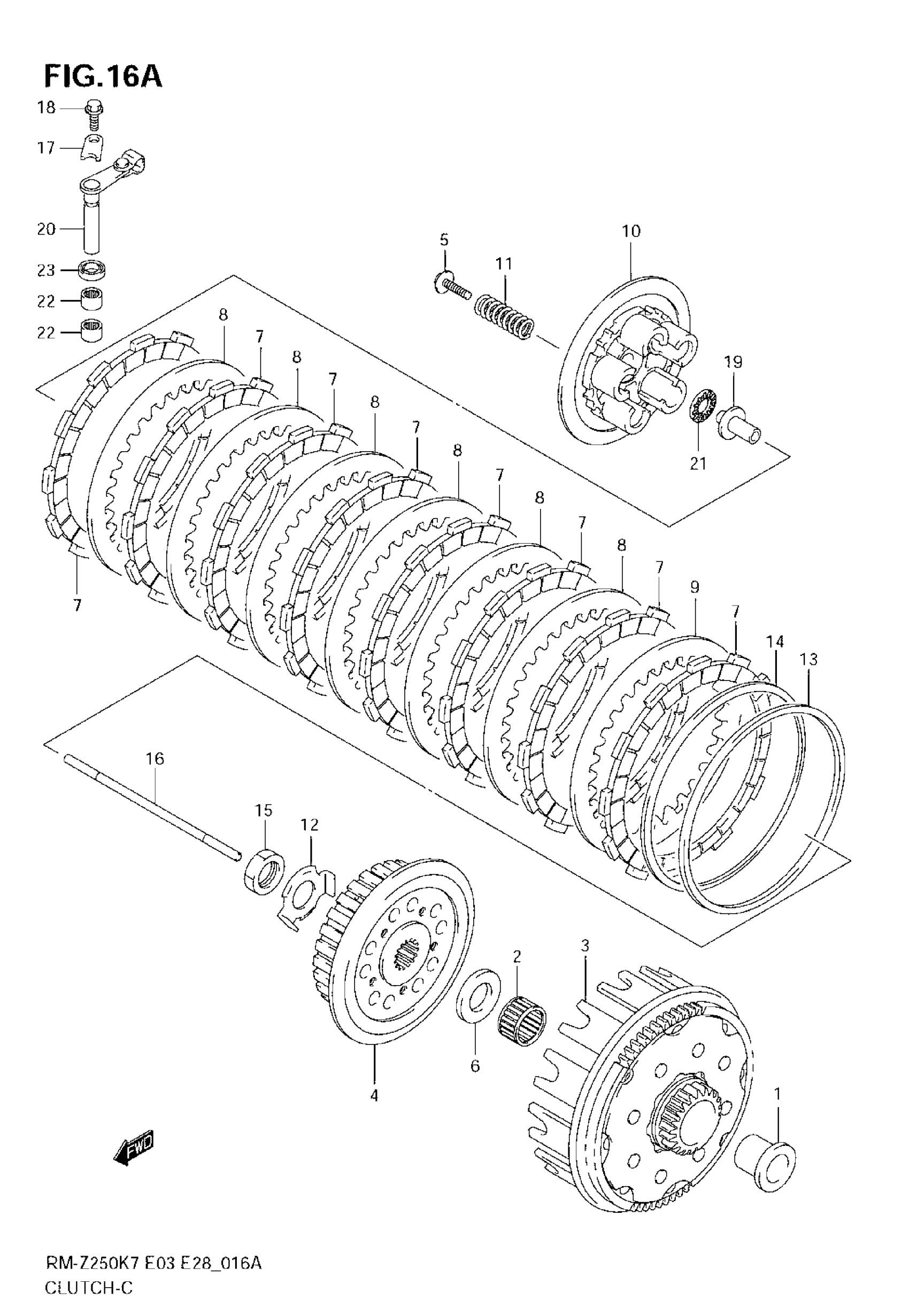

Suzuki RM-Z250 (2009) CLUTCH (MODEL K8/K9) Diagram

#

Description
Price

1

SPACER, PRI DRIVEN GEAR | 27X32X21.8

21251-10H00

$56.78

2

BEARING, PRIMARY DRIVEN | 27X32X21.8

09263-27004

$36.03

3

GEAR ASSY, PRIMARY DRIVEN

21200-10H00

$451.40

4

HUB, CLUTCH SLEEVE

21411-10H00

$147.72

5

BOLT, CLUTCH SPRING | 6X32

21412-45G00

$3.05

6

WASHER, CLUTCH SLEEVE HUB | 22X45X3.0

09160-22083

$15.50

7

PLATE, CLUTCH DRIVE NO.1

21441-10H00

$36.63

8

PLATE, CLUTCH DRIVEN

21451-10H00

$13.12

9

PLATE, CLUTCH DRIVEN

21452-10H00

$17.77

10

DISC, CLUTCH PRESSURE

21462-10H00

$60.15

11

SPRING, CLUTCH

09440-18040

$8.72

12

WASHER, CLUTCH SLEEVE

21416-10H00

$4.32

13

SEAT, WAVE WASHER

21471-40F00

$13.50

14

WASHER, CLUTCH PLATE

21472-10H00

$24.27

15

NUT, CLUTCH SLEEVE HUB

09140-18020

$12.35

16

ROD, CLUTCH PUSH

23110-37F00

$20.48

17

RETAINER, CL RELEASE

23117-10H00

$5.75

18

BOLT, RTNR

09103-06233

$2.18

19

PIECE,CLUTCH PUSH

23121-37F00

$19.03

20

CAMSHAFT, CLUTCH RELEASE

23200-10H00

$97.62

21

BEARING, CL RELEASE THRUST | 10.1X22X2.8

09263-10002

$9.20

22

BEARING, CL RELEASE CAMSHAFT | 10X14X10

09263-10014

$12.21

23

SEAL, CL RELEASE CAMSHAFT OIL | 10X17X5

09285-10004

$3.04
