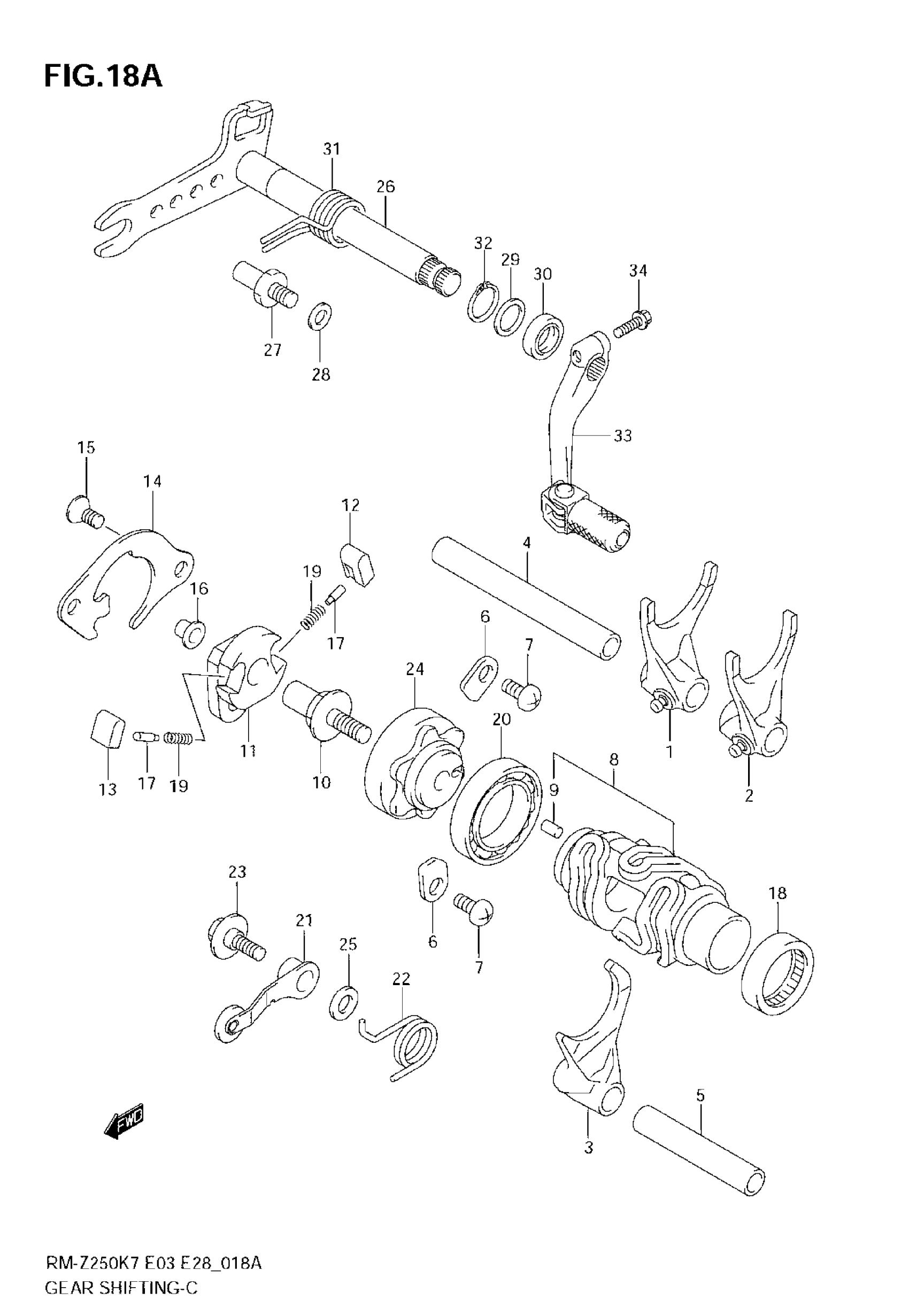

Suzuki RM-Z250 (2009) GEAR SHIFTING (MODEL K8/K9) Diagram

#

Description
Price

1

FORK, GEAR SHIFT NO.1 This part replaces 25211-10H00.

25211-10H10

$100.46

2

FORK, GEAR SHIFT NO.2 This part replaces 25221-10H00.

25221-10H10

$100.46

3

FORK, GEAR SHIFT NO.3 This part replaces 25231-10H01.

25231-10H10

$102.35

4

SHAFT, GEAR SHIFT FORK NO.1

25411-37F20

$25.08

5

SHAFT, GEAR SHIFT FORK NO.2

25421-27C01

$20.82

6

RETAINER, SHIFT CAM BEARING

24741-21A00

$2.80

7

SCREW, RTNR (6X12)

09125-06110

$2.13

8

CAM, GEAR SHIFT | Includes Item(s) 9

25310-10H10

Unavailable

9

PIN (4X13.8)

04221-04089

$1.10

10

PIN, GEAR SHIFT CAM DRIVEN

25313-37F00

$16.67

11

SHIFTER, GEAR SHIFT

25322-10H00

Unavailable

12

PAWL, GEAR SHIFT NO.1

25323-34201

$6.61

13

PAWL, GEAR SHIFT NO.2

25324-34201

$6.80

14

LIFTER, GEAR SHIFT PAWL

25331-10H00

$26.50

15

SCREW, SHIFT PAWL LIFTER | 6X12

09126-06011

$2.01

16

ROLLER, GEAR SHIFT

09180-07014

$3.71

17

PIN, SHIFT PAWL CLICK

09209-05023

$2.73

18

BEARING, GEAR SHIFT CAM, L | 25X32X12

09263-25018

$19.30

19

SPRING, SHIFT PAWL RETURN

09440-04003

$1.48

20

BEARING, GEAR SHIFT CAM, R

08140-69050

$32.18

21

STOPPER, GEAR SHIFT CAM

25350-10H00

$23.73

22

SPRING, GEAR SHIFT CAM

25355-10H01

$5.52

23

BOLT, STOPPER

25357-29F10

Unavailable

24

PLATE, GEAR SHIFT CAM STOPPER

25381-10H00

$86.52

25

WASHER, GEAR SHIFT CAM STOPPER

08211-06121

$1.56

26

SHAFT,GEAR SHIF This part replaces 25510-10H10.

25510-10H12

$97.62

27

STOPPER, GEAR SHIFT ARM

25671-10H00

$6.75

28

WASHER, STOPPER (8.8X14X1)

09181-08139

$1.92

29

WASHER, GEAR SHIFT SHAFT | 14X22X6

09181-14139

$2.66

30

SEAL, SHIFT SHAFT OIL | 14X22X6

09283-14006

$6.04

31

SPRING, SHIFT SHAFT RETURN

09444-20005

$8.47

32

CIRCLIP, GEAR SHIFT SHAFT

08331-3114A

$1.89

33

LEVER ASSY, GEAR SHIFT

25600-10H10

$141.85

34

BOLT, GEAR SHIFT LEVER

01547-06207

$2.01
