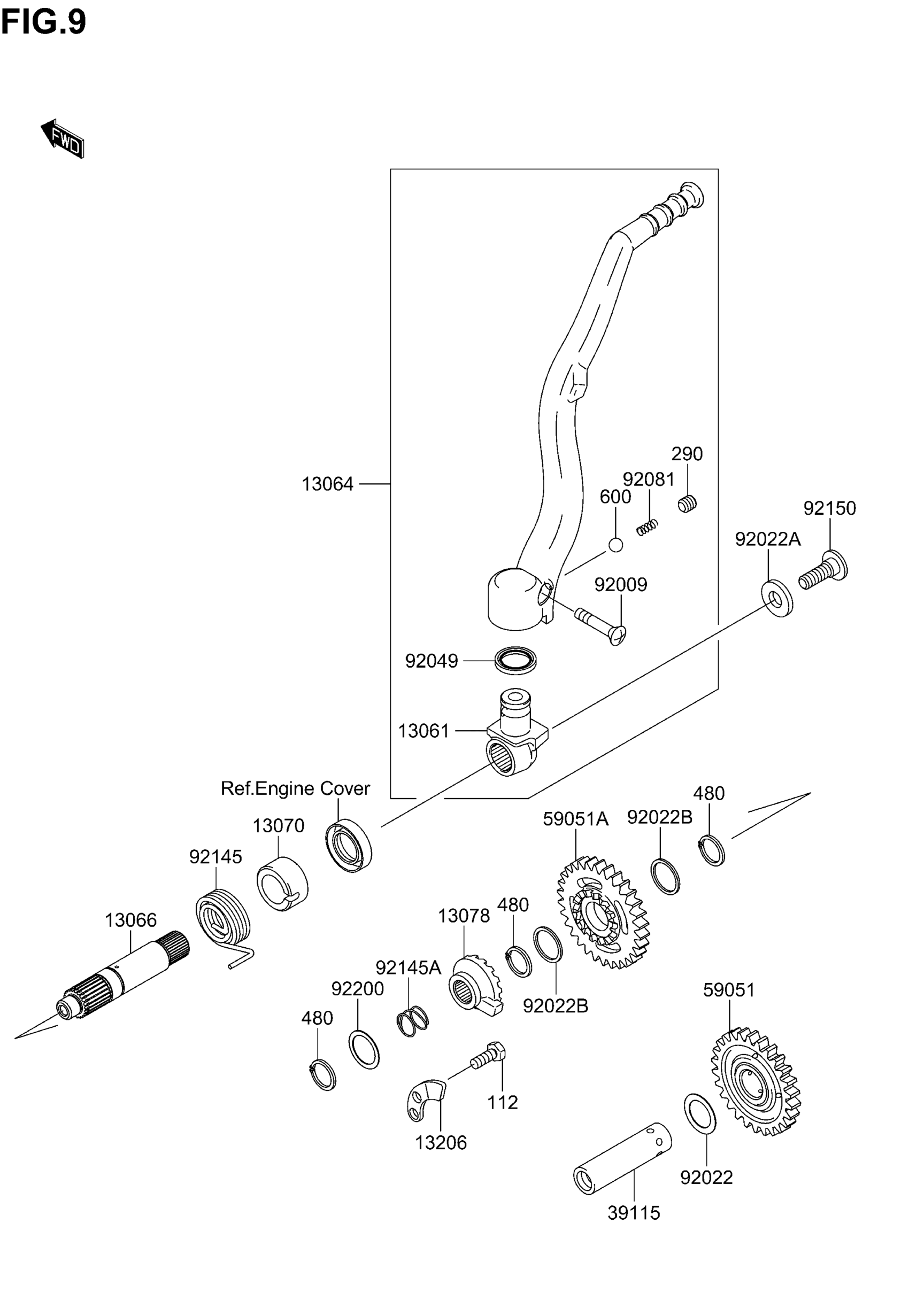

Suzuki RM-Z250 (2005) KICKSTARTER MECHANISM Diagram

BOSS

K1306-10087

Unavailable

LEVER-ASSY-KICK This part replaces K1306-40019.

K1306-40030

$251.43

SHAFT-KICK

K1306-60004

$116.30

GUIDE

K1307-00011

$19.23

RATCHET

K1307-80005

Unavailable

GUIDE-KICK

K1320-61062

Unavailable

SHAFT-IDLER,KICK This part replaces K3911-50005.

K3911-50012

Unavailable

GEAR-SPUR,KICK STARTER,26T

K5905-10006

$132.73

GEAR-SPUR,KICK STARTER,28T

K5905-10033

$132.73

SCREW,6X27

K9200-91607

Unavailable

WASHER,17.3X25X0.5

K9202-21614

Unavailable

WASHER

K9202-21944

Unavailable

WASHER,18.3X22X0.5

KK920-22271

Unavailable

SEAL-OIL,KICK PEDAL

K9204-91387

$5.43

SPRING,KICK PEDAL

KK920-81020

$3.92

SPRING,KICK STARTER

K9214-50051

$22.15

SPRING

K9214-50162

Unavailable

BOLT,8X25

K9215-01858

$7.47

WASHER,18.3X24X0.5

K9220-00075

Unavailable

BOLT,6X16 This part replaces KK112-G0616.

K9215-11652

Unavailable

SCREW SET,SOCKE This part replaces KK290-P0808.

K290C-A0808

$3.12

CIRCLIP-TYPE-C,18MM

KK480-J1800

$1.63

BALL-STEEL,1/4"

KK600-A0800

$1.15
