2005 Suzuki RM-Z250 Cylinder/piston Diagram

← All diagrams

Find the part on the Cylinder/piston diagram for your 2005 Suzuki RM-Z250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

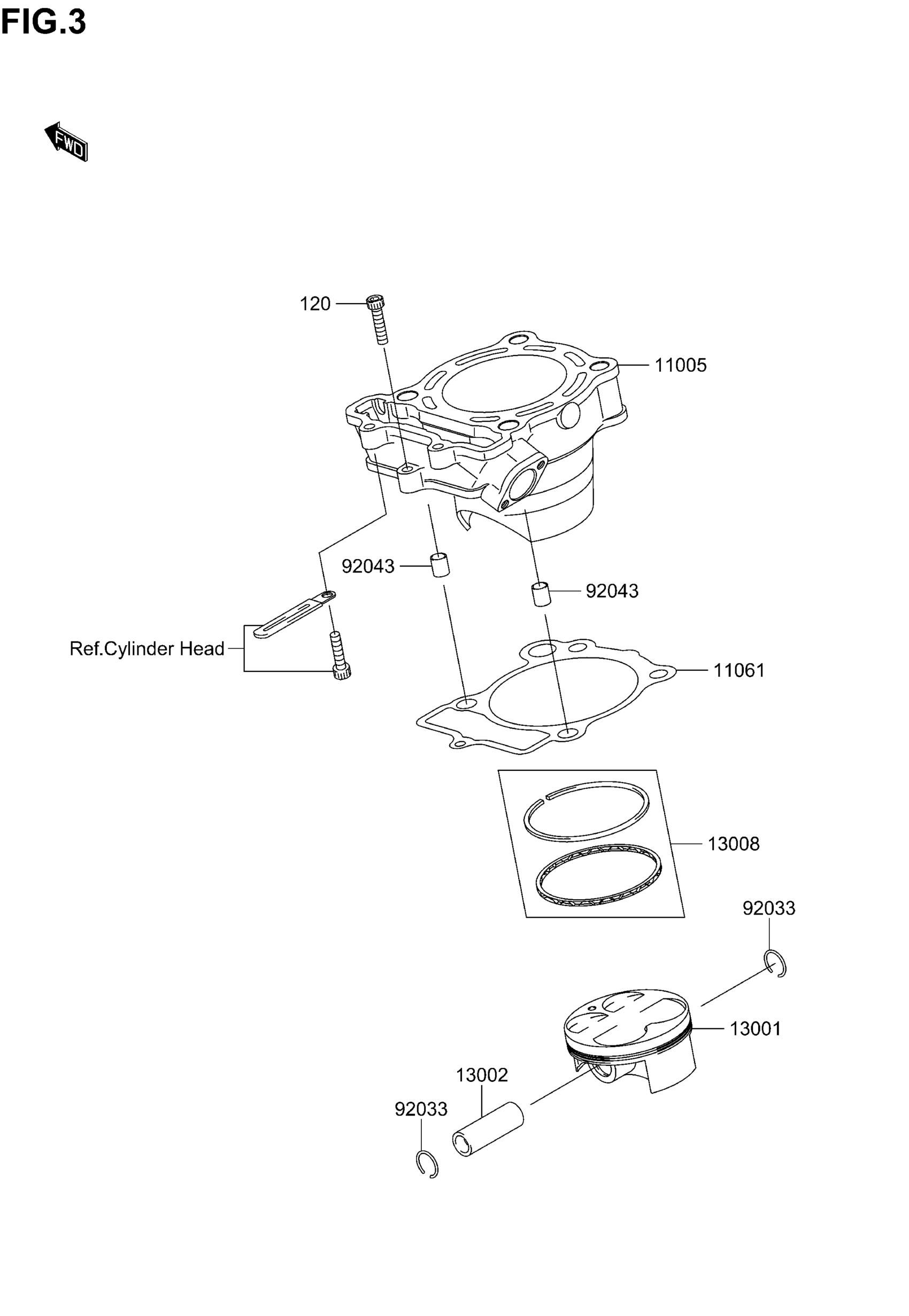

2005 Suzuki RM-Z250 Cylinder/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11005

CYLINDER-ENGINE

K1100-50037

1
Out of stock

11061

GASKET,CYLINDER BASE

K1106-10025

1
Out of stock

13001

PISTON-ENGINE

K1300-10052

1
Out of stock

13002

PIN,PISTON This part replaces K1300-20002.

K1300-20018

1
Out of stock

13008

RING SET,PISTON This part replaces K1300-80003.

K1300-80028

1
Out of stock

92033

RING-SNAP,PISTON PIN

K9203-31161

2
Out of stock

92043

PIN,10.1X12X14

K9204-34009

2
Out of stock

120

BOLT-SOCKET,6X2 This part replaces KK120-P0625.

K120C-A0625

1
Out of stock
