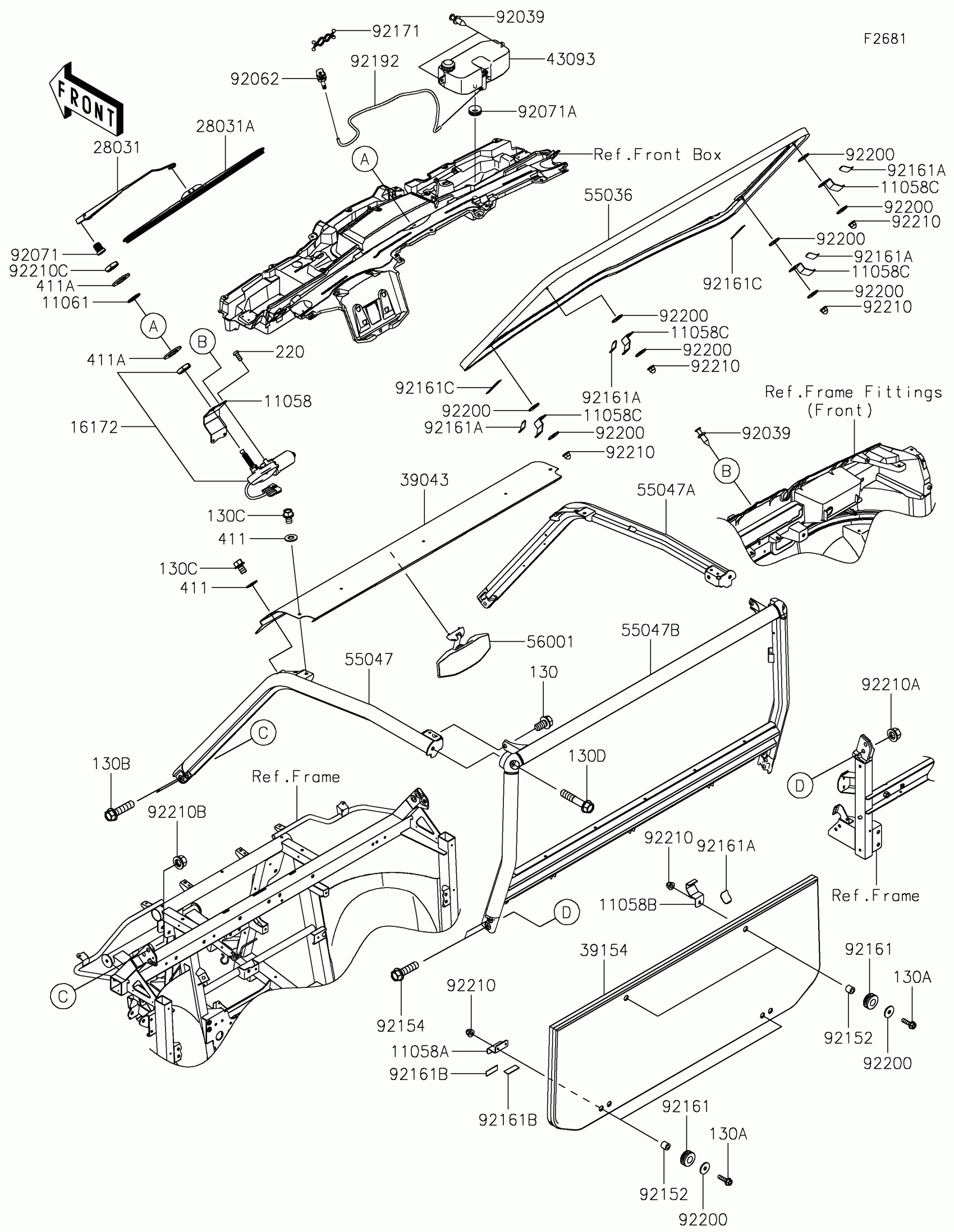

Kawasaki RIDGE® XR HVAC Guards/Cab Frame(GRFNN/GRFNL) Diagram

#

Description
Price

11058

BRACKET,WIPER ACTUATOR

11058-0286

$17.36

11058A

BRACKET,WINDSHIELD MOUNT,LWR

11058-0288

$4.86

11058B

BRACKET,WINDSHIELD MOUNT

11058-2330

$8.64

11058C

BRACKET,WINDSHIELD MOUNT

11058-2798

$8.64

11061

GASKET,16.7X25.4X1.6

11061-1553

$0.98

16172

ACTUATOR,WIPER

16172-0565

$307.45

28031

WIPER,ARM

28031-0002

$156.36

28031A

WIPER,BLADE

28031-0005

$33.45

39043

CROSSMEMBER-COMP,UPP,FR,T.BLK

39043-0043-388

$133.17

39154

WINDSHIELD,RR

39154-0419

$371.84

43093

RESERVOIR-ASSY-TANK,WASHER

43093-0011

$127.96

55036

WINDSHIELD-ASSY,FR

55036-0052

$770.57

55047

BAR-COMP,LH,FR,T.BLACK

55047-0412-388

$393.66

55047A

BAR-COMP,RH,FR,T.BLACK

55047-0413-388

$394.43

55047B

BAR-COMP,RR,T.BLACK

55047-0414-388

$623.83

56001

MIRROR-ASSY,REAR VIEW

56001-0447

$90.31

92039

RIVET

92039-0776

$0.80

92062

NOZZLE,WASHER

92062-0578

$23.08

92071

GROMMET,WASHER

92071-0826

$2.93

92071A

GROMMET

92071-1115

$4.14

92152

COLLAR,6.5X12X11

92152-0692

$4.95

92154

BOLT,FLANGED,12X45

92154-1420

$2.72

92161

DAMPER

92161-2500

$1.02

92161A

DAMPER,45X35X1.5

92161-2600

$3.98

92161B

DAMPER,20X56X1.5

92161-2639

$1.49

92161C

DAMPER,100X15X1

92161-2650

$2.03

92171

CLAMP

92171-0476

$3.51

92192

TUBE,3.68X7.92X840

92192-2630

$8.10

92200

WASHER,6.5X22X1.6

92200-1087

$3.01

92210

NUT,CAP,6MM

92210-0003

$0.60

92210A

NUT,12MM

92210-0603

$6.85

92210B

NUT,FLANGED,12MM

92210-1932

$2.78

92210C

NUT,18MM

92210-1947

$6.19

130

BOLT-FLANGED,12X22

130BA1222

$2.46

130A

BOLT-FLANGED,6X22

130BB0622

$2.79

130B

BOLT-FLANGED,12X50

130BB1250

$4.44

130C

BOLT-FLANGED,10X14

130CA1014

$2.31

130D

BOLT-FLANGED,12X60

130CB1260

$7.49

220

SCREW-PAN-CROSS,6X14

220AA0614

$1.14

411

WASHER-PLAIN,10MM

411AA1000

$0.81

411A

WASHER-PLAIN,18MM

411AA1800

$7.69
