2025 Kawasaki Ridge® XR Hvac Guard Diagram

← All diagrams

Find the part on the Guard diagram for your 2025 Kawasaki Ridge® XR Hvac, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

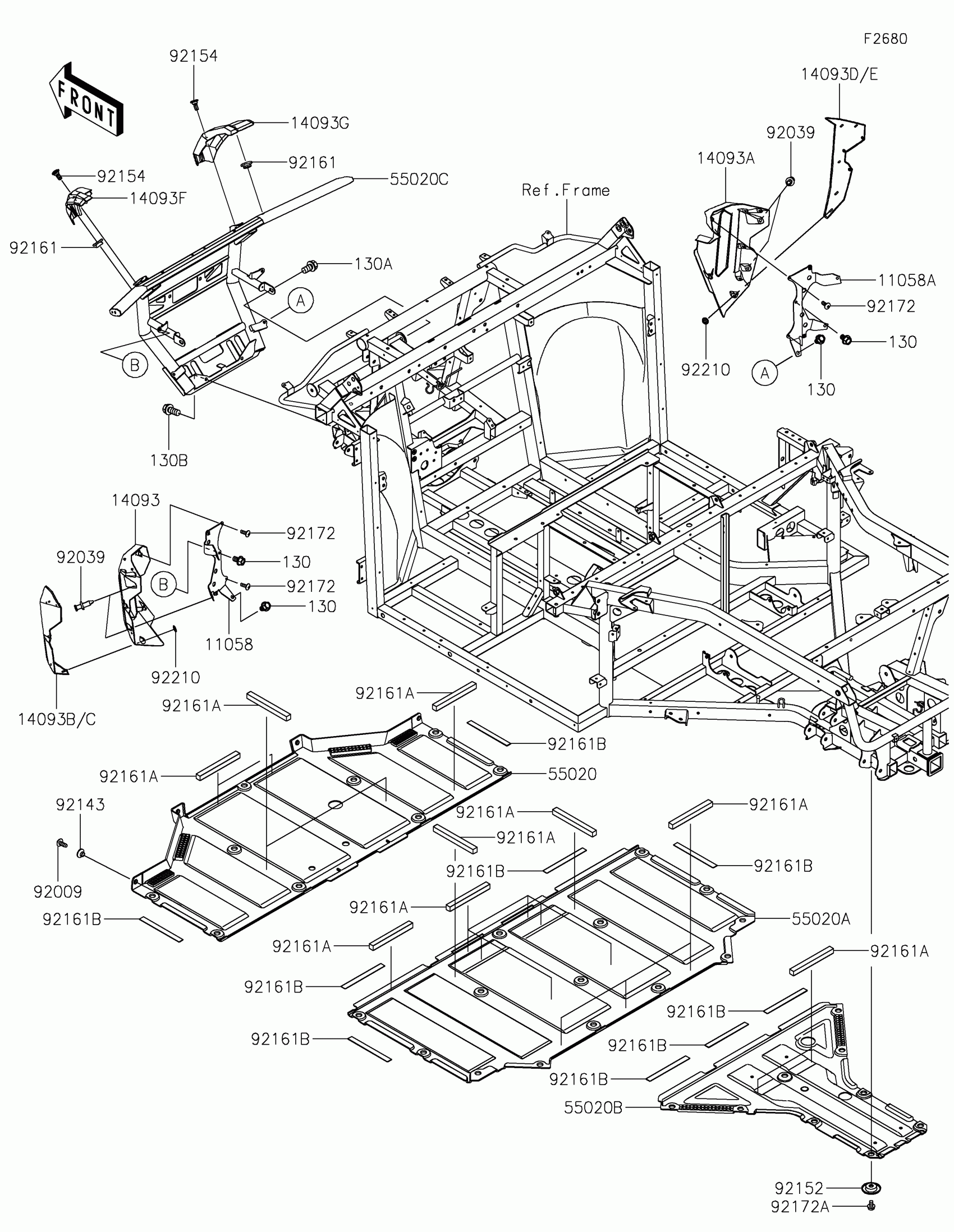

2025 Kawasaki Ridge® XR Hvac Guard Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11058

1

$29.42

In stock

11058A

1

$29.42

In stock

14093

1

$11.86

In stock

14093A

1

$11.86

In stock

14093B

1

$12.20

In stock

14093C

1

$12.20

In stock

14093D

1

$12.20

In stock

14093E

1

$12.20

In stock

14093F

COVER,FR GUARD,LH,BLACK

14093-1431-6Z

1

$4.86

In stock

14093G

COVER,FR GUARD,RH,BLACK

14093-1432-6Z

1

$4.86

In stock

55020

GUARD,SKID PLATE,FR

55020-2415

1

$113.56

In stock

55020A

1

$124.74

In stock

55020B

GUARD,SKID PLATE,RR

55020-2417

1

$53.84

In stock

55020C

GUARD,FR BUMPER,T.BLACK

55020-2423-388

1

$459.45

In stock

92009

SCREW,TAPPING,6X16

92009-1166

1
Out of stock

92039

RIVET

92039-0776

1

$0.80

In stock

92143

COLLAR

92143-1057

1

$3.97

In stock

92152

COLLAR

92152-0784

1

$1.78

In stock

92154

BOLT

92154-3957

1

$1.93

In stock

92161

DAMPER

92161-1531

1

$2.44

In stock

92161A

DAMPER,20X200X20

92161-2633

1

$16.31

In stock

92161B

DAMPER,20X200X1.5

92161-2634

1

$1.85

In stock

92172

SCREW,TAPPING,5X14

92172-0265

1

$1.20

In stock

92172A

SCREW,6X10

92172-1549

1

$0.59

In stock

92210

NUT

92210-1796

1

$0.44

In stock

130

BOLT-FLANGED,8X12

130BA0812

1

$0.92

In stock

130A

BOLT-FLANGED,10X18

130BA1018

1

$2.05

In stock

130B

BOLT-FLANGED,10X22

130BB1022

1

$1.92

In stock
