2025 Kawasaki Ridge Limited Rear Suspension Diagram

← All diagrams

Find the part on the Rear Suspension diagram for your 2025 Kawasaki Ridge Limited, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

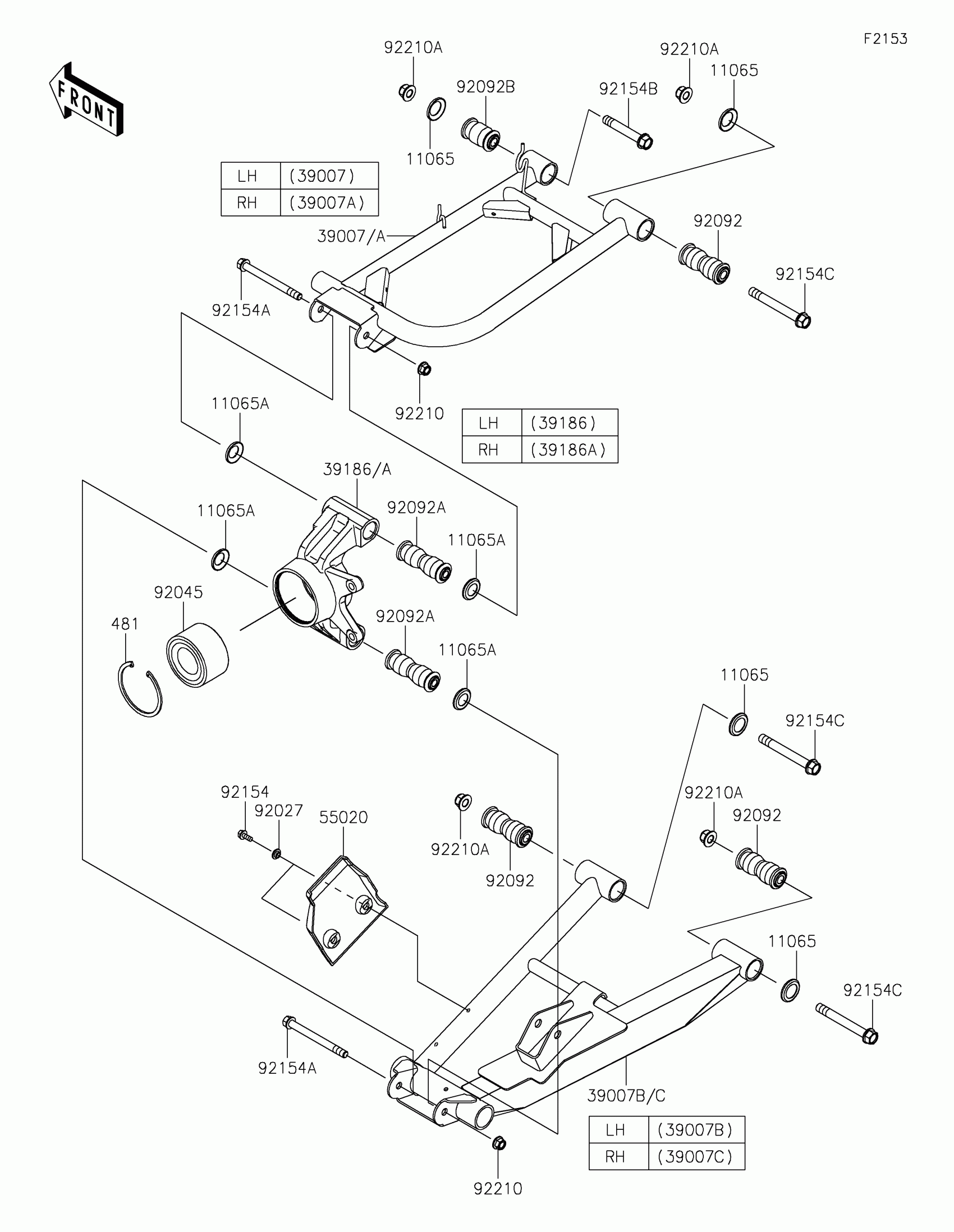

2025 Kawasaki Ridge Limited Rear Suspension Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP,ARM

11065-0838

1
Out of stock

11065A

CAP

11065-0849

1
Out of stock

39007

ARM-SUSP,RR,UPP,LH,BLACK

39007-0491-10

1
Out of stock

39007A

ARM-SUSP,RR,UPP,RH,BLACK

39007-0492-10

1
Out of stock

39007B

ARM-SUSP,RR,LWR,LH,BLACK

39007-0493-10

1
Out of stock

39007C

ARM-SUSP,RR,LWR,RH,BLACK

39007-0494-10

1
Out of stock

39186

KNUCKLE,RR,LH

39186-0337

1
Out of stock

39186A

KNUCKLE,RR,RH

39186-0338

1
Out of stock

55020

GUARD,RR CVJ

55020-0931

1

$10.90

In stock

92027

COLLAR,L=4.6

92027-1168

1
Out of stock

92045

BEARING-BALL,42X80X45

92045-0960

1
Out of stock

92092

BUSHING-RUBBER,12X20X78

92092-0028

1
Out of stock

92092A

BUSHING-RUBBER,10.1X17X88

92092-0029

1
Out of stock

92092B

BUSHING-RUBBER

92092-0555

1
Out of stock

92154

BOLT,6X15.6

92154-1250

1
Out of stock

92154A

BOLT,FLANGED,10X110

92154-1353

1
Out of stock

92154B

BOLT,FLANGED,12X76.5

92154-7079

1
Out of stock

92154C

BOLT,FLANGED,12X100

92154-7081

1
Out of stock

92210

NUT,LOCK,FLANGED,10MM

92210-1081

1
Out of stock

92210A

NUT,LOCK,FLANGED,12MM

92210-1931

1
Out of stock

481

CIRCLIP 80MM

481J8000

1
Out of stock
