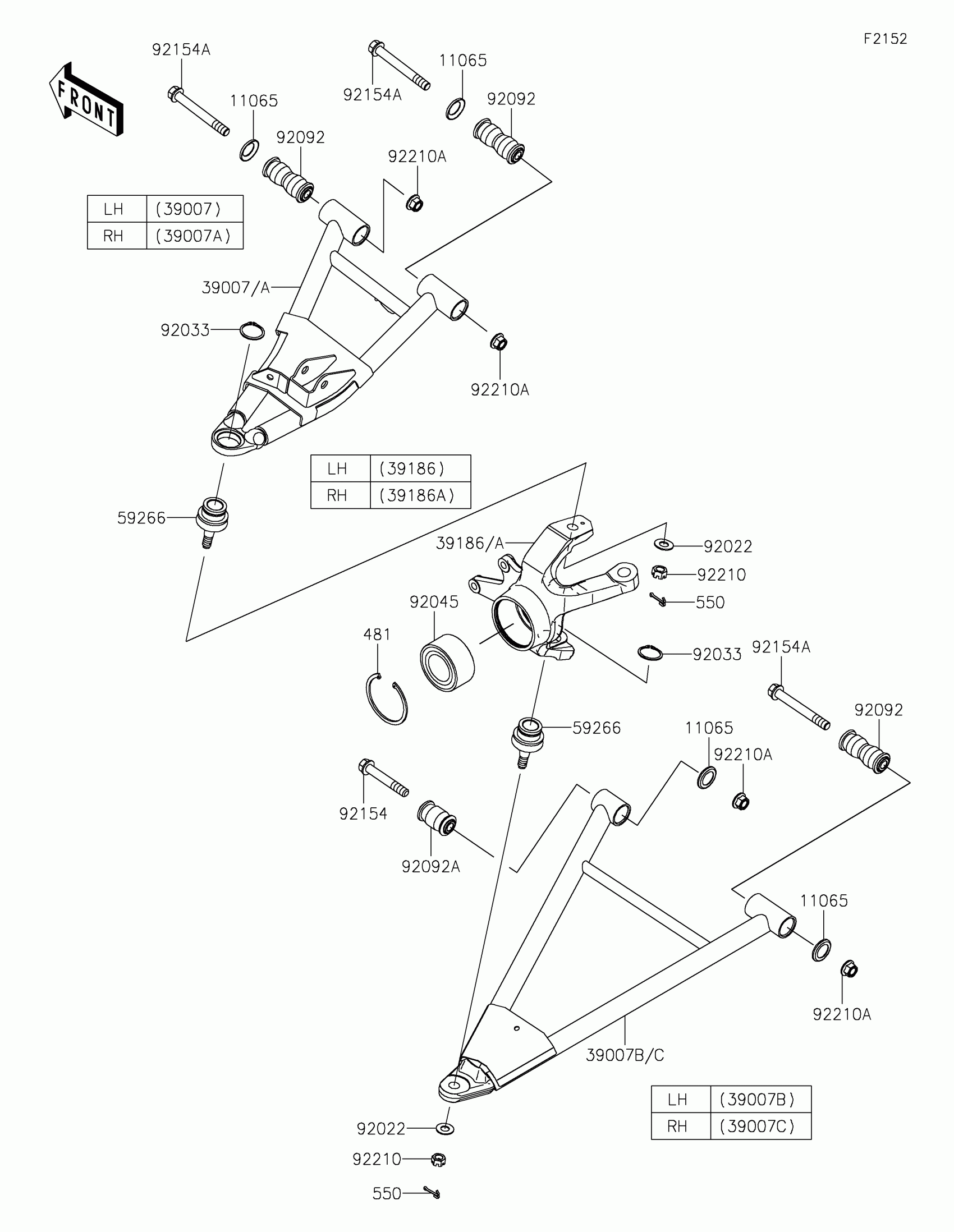

Kawasaki Ridge Limited Front Suspension Diagram

Description

Price

11065

CAP,ARM

11065-0838

$2.95

39007

ARM-SUSP,FR,UPP,LH,BLACK

39007-0487-10

$175.88

39007A

ARM-SUSP,FR,UPP,RH,BLACK

39007-0488-10

$175.88

39007B

ARM-SUSP,FR,LWR,LH,BLACK

39007-0489-10

$132.08

39007C

ARM-SUSP,FR,LWR,RH,BLACK

39007-0490-10

$132.08

39186

KNUCKLE,FR,LH

39186-0335

$211.37

39186A

KNUCKLE,FR,RH

39186-0336

Unavailable

59266

JOINT-BALL

59266-0711

$85.37

92022

WASHER

92022-1831

$4.18

92033

RING-SNAP,C-TYPE,32MM

92033-1262

$4.81

92045

BEARING-BALL,40X74X36

92045-0919

$91.60

92092

BUSHING-RUBBER,12X20X78

92092-0028

$17.58

92092A

BUSHING-RUBBER

92092-0555

$14.43

92154

BOLT,FLANGED,12X76.5

92154-7079

$9.66

92154A

BOLT,FLANGED,12X100

92154-7081

$11.98

92210

NUT,CASTLE,12MM

92210-0395

$2.95

92210A

NUT,LOCK,FLANGED,12MM

92210-1931

$4.39

481

CIRCLIP-TYPE-C

481J7500

$4.15

550

PIN-COTTER,3.0X25

550AA3025

$0.59
