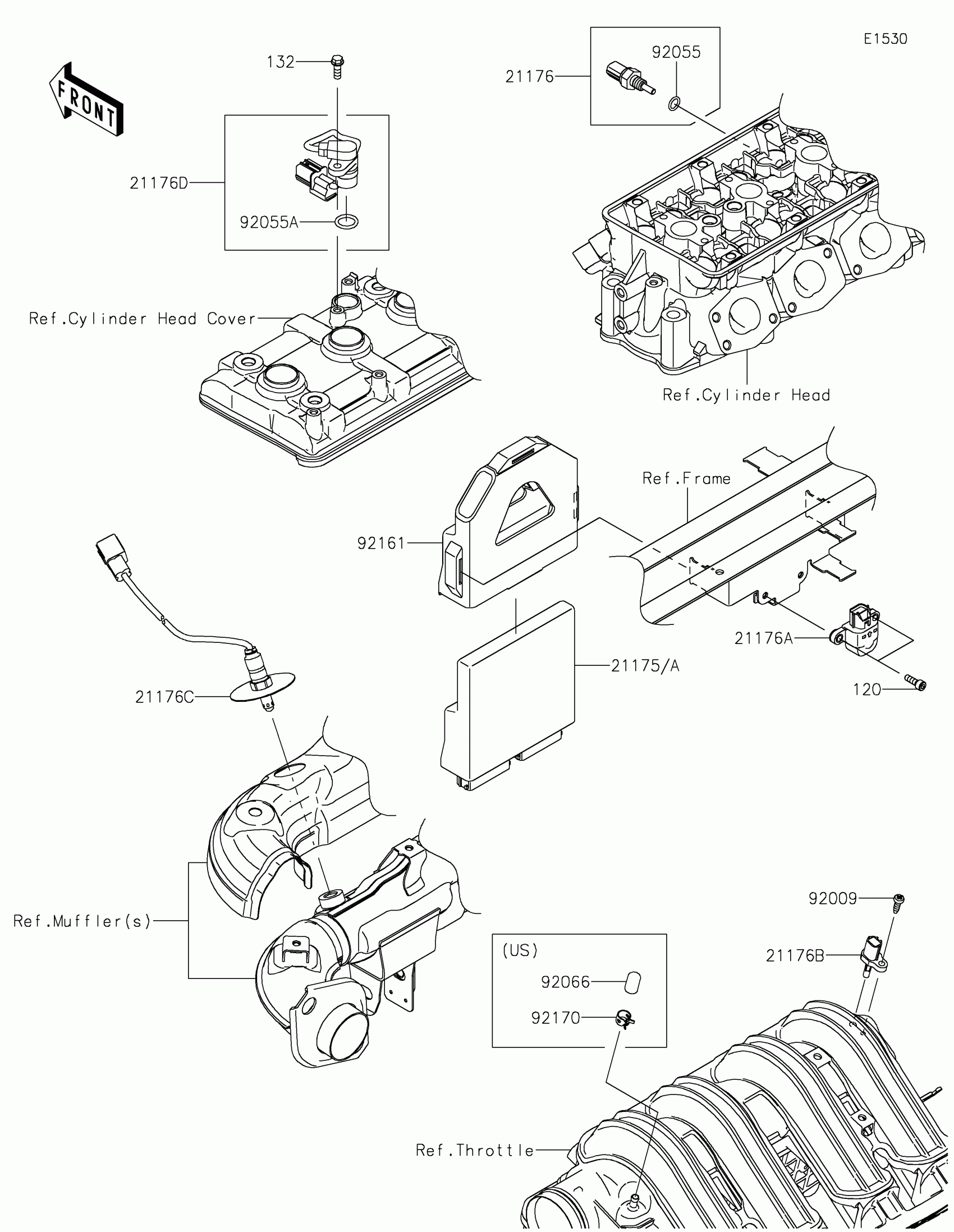

Kawasaki Ridge Limited Fuel Injection Diagram

Description

Price

21175

CONTROL UNIT-ELECTRONIC

21175-1894

$858.41

21175A

CONTROL UNIT-ELECTRONIC

21175-1895

$1,119.54

21176

SENSOR,WATER TEMP

21176-0009

$63.44

21176A

SENSOR,VEHICLE-DOWN

21176-0026

$79.06

21176B

SENSOR,AIR TEMPERATURE

21176-0048

$24.07

21176C

SENSOR,OXYGEN

21176-0935

$222.18

21176D

SENSOR

21176-1077

$92.42

92009

SCREW,TAPPING,5X16

92009-1984

$2.12

92055

RING-O,9.5X1.9

92055-0016

$7.06

92055A

RING-O

92055-1639

$2.49

92066

PLUG

92066-0862

$1.10

92161

DAMPER,ECU

92161-2495

$11.41

92170

CLAMP

92170-2043

$1.08

120

BOLT-SOCKET,5X16

120CA0516

$1.81

132

BOLT-FLANGED-SMALL,6X16

132BA0616

$1.21
