2025 Kawasaki Ridge Limited Fuel Evaporative System Diagram

← All diagrams

Find the part on the Fuel Evaporative System diagram for your 2025 Kawasaki Ridge Limited, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

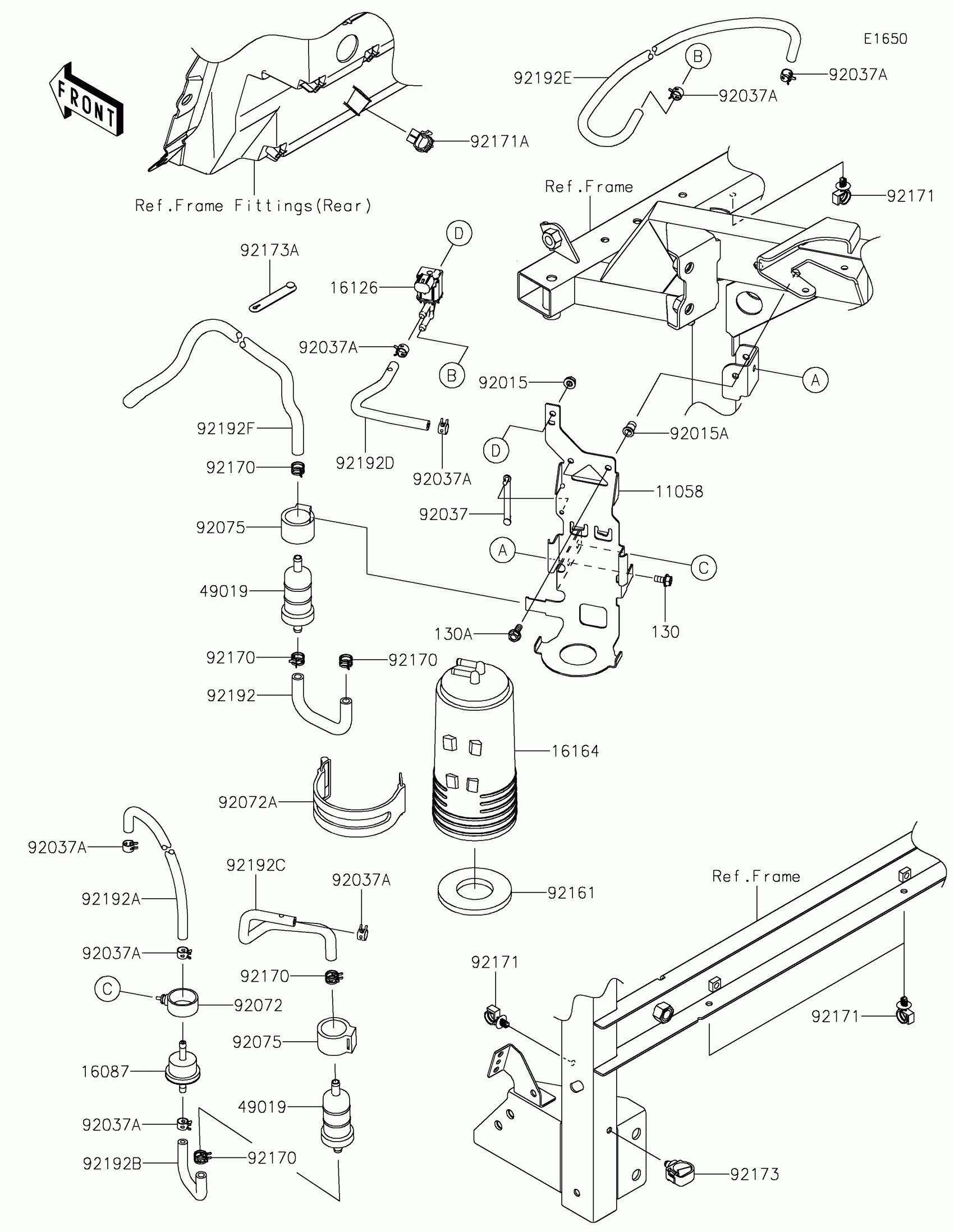

2025 Kawasaki Ridge Limited Fuel Evaporative System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11058

BRACKET,CANISTER

11058-0557

1
Out of stock

16087

VALVE-CHECK

16087-0011

1
Out of stock

16126

VALVE,SOLENOID

16126-0705

1
Out of stock

16164

CANISTER

16164-0016

1
Out of stock

49019

FILTER-FUEL

49019-0032

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92015A

NUT,POP,6MM,L=15

92015-1791

1
Out of stock

92037

CLAMP,SPEED,L=58

92037-1163

1
Out of stock

92037A

CLAMP

92037-2113

1
Out of stock

92072

BAND

92072-0852

1
Out of stock

92072A

BAND,L=168

92072-1306

1
Out of stock

92075

DAMPER,FUEL FILTER

92075-1853

1
Out of stock

92161

DAMPER

92161-1843

1

$4.51

In stock

92170

CLAMP

92170-2082

1

$0.83

In stock

92171

CLAMP

92171-0453

1

$3.12

In stock

92171A

CLAMP,EDGE CLIP

92171-1722

1
Out of stock

92173

CLAMP

92173-0861

1
Out of stock

92173A

CLAMP

92173-2199

1
Out of stock

92192

TUBE,FILTER-CANISTER

92192-1665

1
Out of stock

92192A

TUBE,TANK-VALVE CHECK

92192-2653

1
Out of stock

92192B

TUBE,VALVE CHECK-FILTER AIR

92192-2654

1
Out of stock

92192C

TUBE,FILTER AIR-CANISTER

92192-2655

1
Out of stock

92192D

TUBE,CANISTER-PURGE VALVE

92192-2656

1
Out of stock

92192E

TUBE,PURGE VALVE-IN MANIFOLD

92192-2657

1
Out of stock

92192F

TUBE,FILTER AIR-OUTSIDE

92192-2658

1
Out of stock

130

BOLT-FLANGED,6X12

130BA0612

1

$1.46

In stock

130A

BOLT-FLANGED,6X16

130BA0616

1

$1.12

In stock
