2025 Kawasaki Ridge® Hvac OIL PAN Diagram

← All diagrams

Find the part on the OIL PAN diagram for your 2025 Kawasaki Ridge® Hvac, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

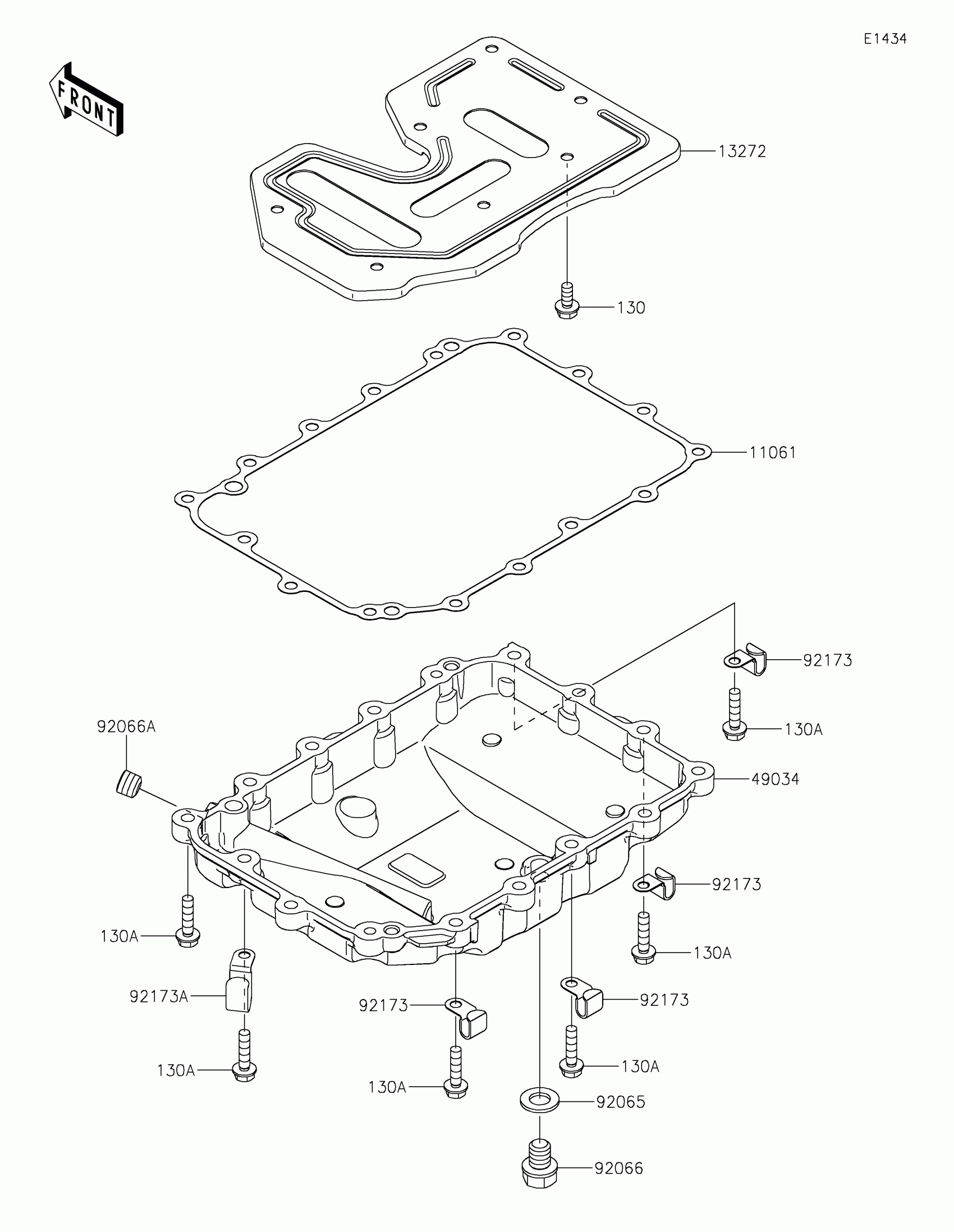

2025 Kawasaki Ridge® Hvac OIL PAN Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,OIL PAN

11061-1453

1
Out of stock

13272

PLATE,OIL PAN

13272-4094

1
Out of stock

49034

PAN-OIL

49034-0583

1
Out of stock

92065

GASKET,12X22X2

92065-097

1
Out of stock

92066

PLUG,OIL DRAIN,12X15

92066-1174

1
Out of stock

92066A

PLUG

92066-1597

1
Out of stock

92173

CLAMP,12X45

92173-1839

1
Out of stock

92173A

CLAMP

92173-2588

1
Out of stock

130

BOLT-FLANGED,6X14

130BA0614

1

$1.12

In stock

130A

BOLT-FLANGED,6X25

130BA0625

1

$1.01

In stock
