2025 Kawasaki Ridge® Hvac Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 2025 Kawasaki Ridge® Hvac, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

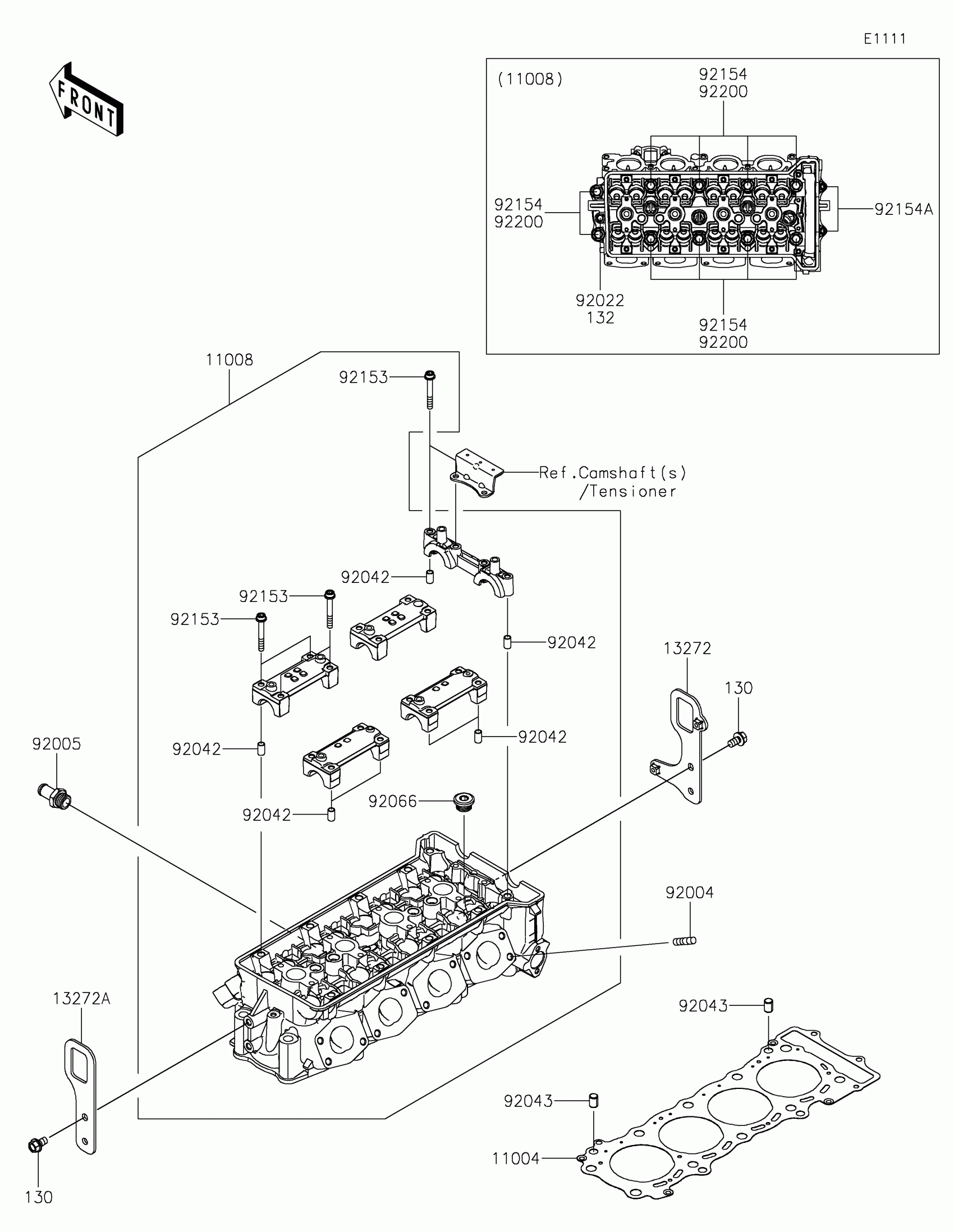

2025 Kawasaki Ridge® Hvac Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11004

GASKET-HEAD

11004-0814

1
Out of stock

11008

HEAD-COMP-CYLINDER

11008-1556

1
Out of stock

13272

PLATE,ENG HANGING RH

13272-4176

1
Out of stock

13272A

PLATE,ENG HANGING LH

13272-4177

1
Out of stock

92004

STUD,8X22

92004-0025

1
Out of stock

92005

FITTING

92005-1446

1
Out of stock

92022

WASHER,6.2X11X1

92022-304

1
Out of stock

92042

PIN,DOWEL,6.3X8X14

92042-007

1
Out of stock

92043

PIN,8.2X10X14

92043-1264

1
Out of stock

92066

PLUG,18X10

92066-0832

1
Out of stock

92153

BOLT,SOCKET,6X45

92153-0656

1
Out of stock

92154

BOLT,11X157

92154-3931

1
Out of stock

92154A

BOLT,6X87

92154-7025

1
Out of stock

92200

WASHER,11.2X18.2X1.8

92200-0940

1
Out of stock

130

BOLT-FLANGED,8X14

130CA0814

1

$1.32

In stock

132

1

$1.47

In stock
