2025 Kawasaki Ridge® Hvac Guards/cab Frame Diagram

← All diagrams

Find the part on the Guards/cab Frame diagram for your 2025 Kawasaki Ridge® Hvac, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

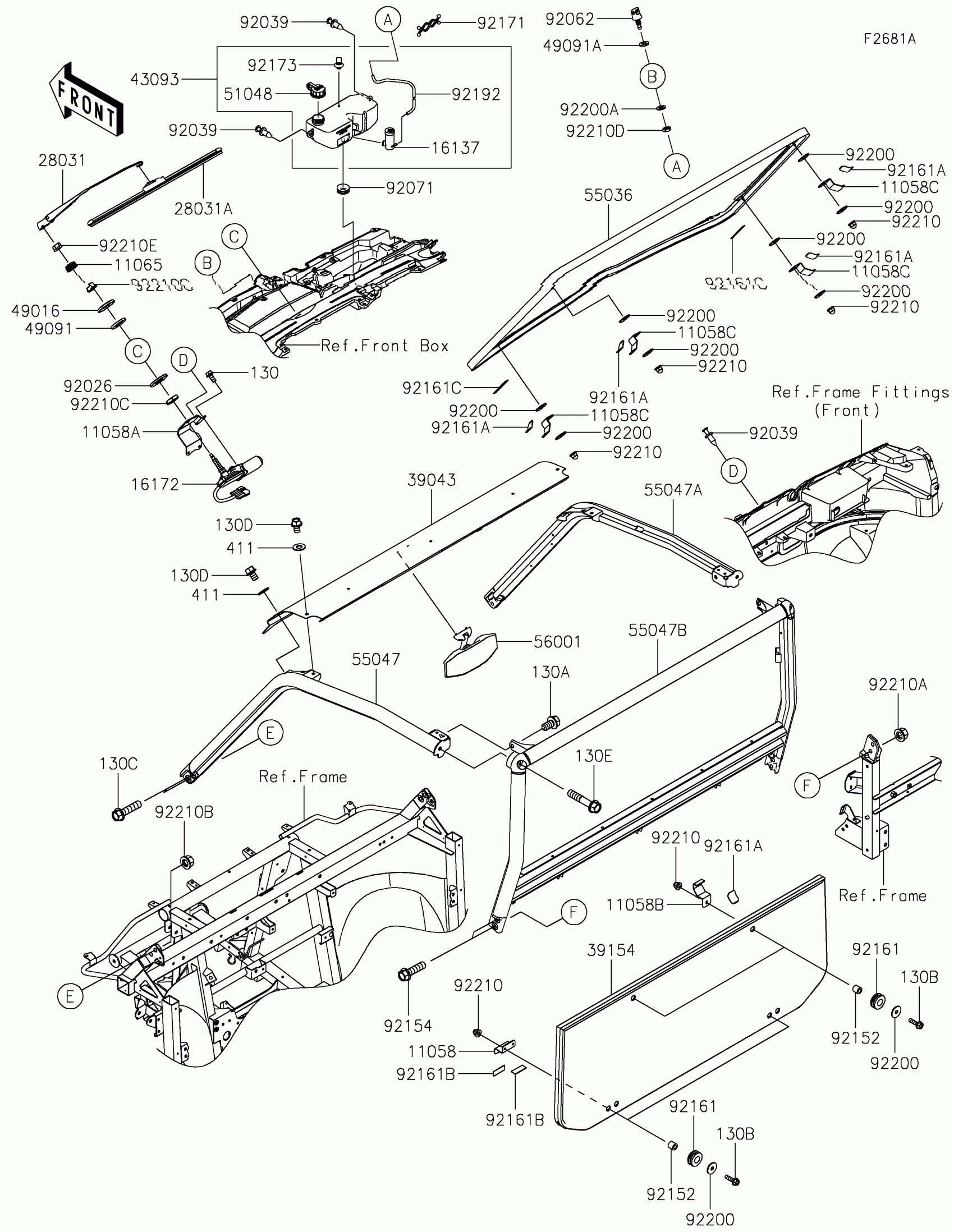

2025 Kawasaki Ridge® Hvac Guards/cab Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11058

BRACKET,WINDSHIELD MOUNT,LWR

11058-0288

1
Out of stock

11058A

BRACKET,WIPER ACTUATOR

11058-2306

1
Out of stock

11058B

BRACKET,WINDSHIELD MOUNT

11058-2330

1
Out of stock

11058C

BRACKET,WINDSHIELD MOUNT

11058-2798

1
Out of stock

11065

CAP,ACTUATOR

11065-1495

1
Out of stock

16137

PUMP,RESERVOIR TANK

16137-0001

1
Out of stock

16172

ACTUATOR,WIPER

16172-0575

1
Out of stock

28031

WIPER,ARM

28031-0006

1
Out of stock

28031A

WIPER,BLADE

28031-0007

1
Out of stock

39043

CROSSMEMBER-COMP,UPP,FR,T.BLK

39043-0037-388

1
Out of stock

39154

WINDSHIELD,RR

39154-0419

1
Out of stock

43093

RESERVOIR-ASSY-TANK,WASHER

43093-0013

1
Out of stock

49016

COVER-SEAL

49016-0722

1
Out of stock

49091

WASHER-SEAL

49091-0014

1
Out of stock

49091A

WASHER-SEAL

49091-0015

1
Out of stock

51048

CAP-ASSY-TANK,RESERVOIR

51048-0614

1
Out of stock

55036

WINDSHIELD-ASSY,FR

55036-0063

1
Out of stock

55047

BAR-COMP,LH,FR,T.BLACK

55047-0412-388

1
Out of stock

55047A

BAR-COMP,RH,FR,T.BLACK

55047-0413-388

1
Out of stock

55047B

BAR-COMP,RR,T.BLACK

55047-0414-388

1
Out of stock

56001

MIRROR-ASSY,REAR VIEW

56001-0447

1
Out of stock

92026

SPACER,16.3X35X3.6

92026-0973

1
Out of stock

92039

RIVET

92039-0776

1
Out of stock

92062

NOZZLE,SPRAY

92062-0588

1
Out of stock

92071

GROMMET

92071-1115

1
Out of stock

92152

COLLAR,6.5X12X11

92152-0692

1
Out of stock

92154

BOLT,FLANGED,12X45

92154-1420

1
Out of stock

92161

DAMPER

92161-2500

1
Out of stock

92161A

DAMPER,45X35X1.5

92161-2600

1
Out of stock

92161B

DAMPER,20X56X1.5

92161-2639

1
Out of stock

92161C

DAMPER,100X15X1

92161-2650

1
Out of stock

92171

CLAMP

92171-0476

1
Out of stock

92173

CLAMP,RESERVOIR TANK

92173-2872

1
Out of stock

92192

TUBE,4X8X830

92192-2824

1
Out of stock

92200

WASHER,6.5X22X1.6

92200-1087

1
Out of stock

92200A

WASHER,8.4X16X1.6

92200-2705

1
Out of stock

92210

NUT,CAP,6MM

92210-0003

1
Out of stock

92210A

NUT,12MM

92210-0603

1
Out of stock

92210B

NUT,FLANGED,12MM

92210-1932

1
Out of stock

92210C

NUT,HEX,16MM

92210-2208

1
Out of stock

92210D

NUT,HEX,8MM

92210-2209

1
Out of stock

92210E

NUT,FLANGED,8MM

92210-2215

1
Out of stock

130

BOLT-FLANGED,6X14

130BA0614

1
Out of stock

130A

BOLT-FLANGED,12X22

130BA1222

1
Out of stock

130B

BOLT-FLANGED,6X22

130BB0622

1
Out of stock

130C

BOLT-FLANGED,12X50

130BB1250

1
Out of stock

130D

BOLT-FLANGED,10X14

130CA1014

1
Out of stock

130E

BOLT-FLANGED,12X60

130CB1260

1
Out of stock

411

WASHER-PLAIN,10MM

411AA1000

1
Out of stock
