2025 Kawasaki Ridge® Hvac Fenders Diagram

← All diagrams

Find the part on the Fenders diagram for your 2025 Kawasaki Ridge® Hvac, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

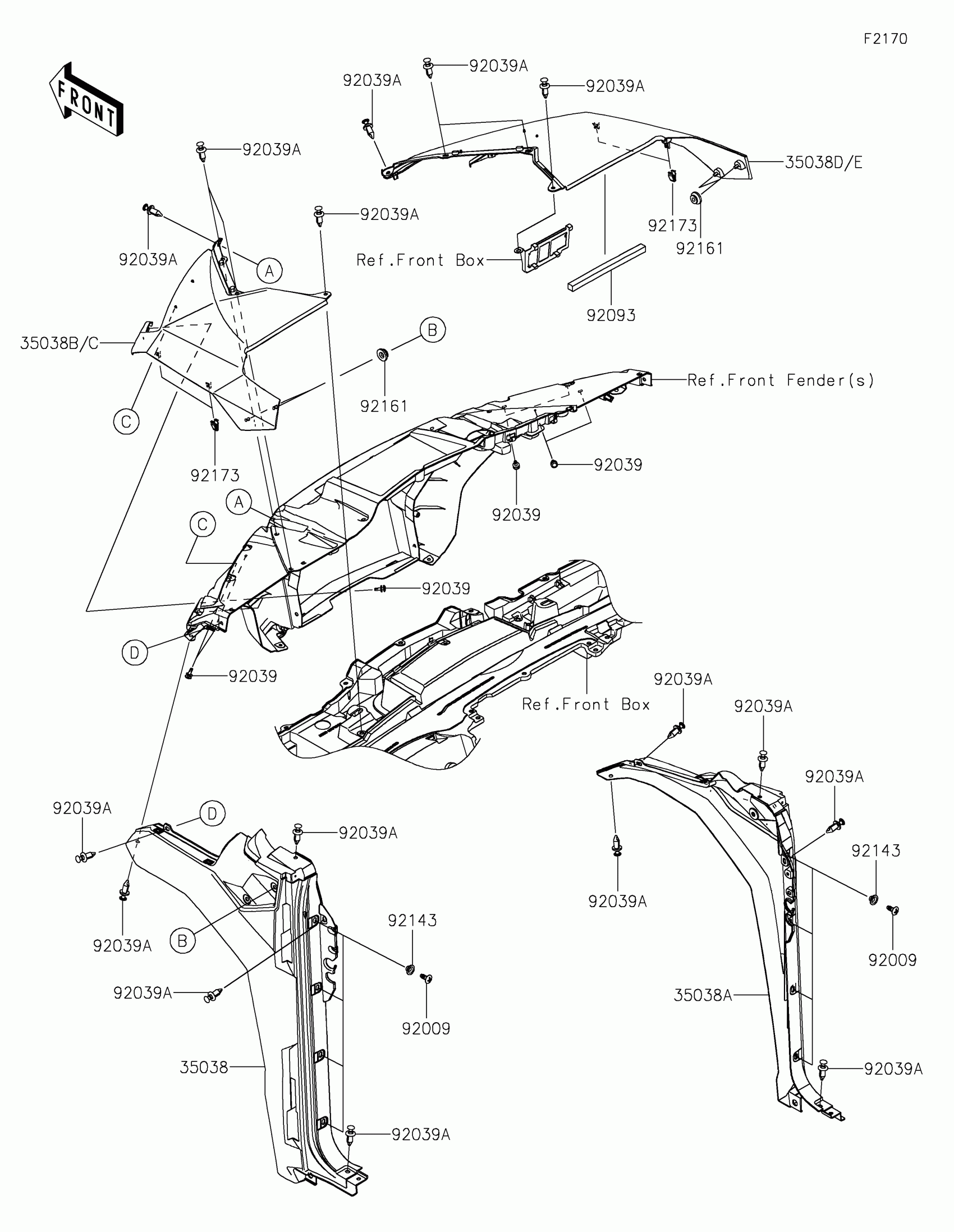

2025 Kawasaki Ridge® Hvac Fenders Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

35038

FENDER-FRONT,LWR,LH

35038-0035

1
Out of stock

35038A

FENDER-FRONT,LWR,RH

35038-0036

1
Out of stock

35038C

FENDER-FRONT,UPP,LH,C.P.RED

35038-0039-V9

1
Out of stock

35038E

FENDER-FRONT,UPP,RH,C.P.RED

35038-0040-V9

1
Out of stock

92009

SCREW,TAPPING,6X16

92009-1166

1
Out of stock

92039

RIVET

92039-0046

1
Out of stock

92039A

RIVET

92039-0776

1
Out of stock

92093

SEAL,15X15X235

92093-0782

1
Out of stock

92143

COLLAR

92143-1057

1
Out of stock

92161

DAMPER

92161-1531

1
Out of stock

92173

CLAMP

92173-1423

1
Out of stock
