2025 Kawasaki Ridge® Hvac Fuel Evaporative System Diagram

← All diagrams

Find the part on the Fuel Evaporative System diagram for your 2025 Kawasaki Ridge® Hvac, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

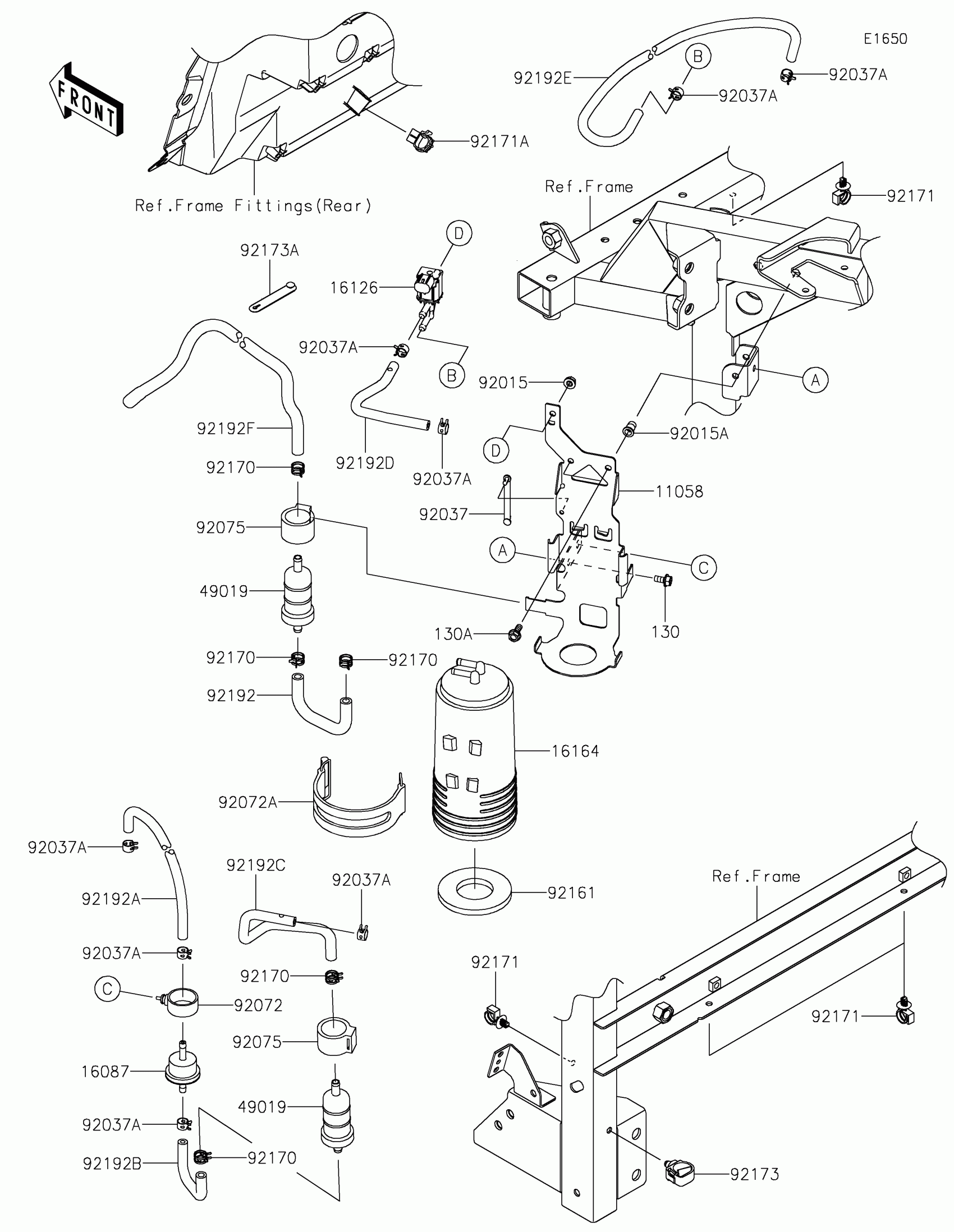

2025 Kawasaki Ridge® Hvac Fuel Evaporative System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11058

BRACKET,CANISTER

11058-0557

1
Out of stock

16087

VALVE-CHECK

16087-0011

1
Out of stock

16126

VALVE,SOLENOID

16126-0705

1
Out of stock

16164

CANISTER

16164-0016

1
Out of stock

49019

FILTER-FUEL

49019-0032

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92015A

NUT,POP,6MM,L=15

92015-1791

1
Out of stock

92037

CLAMP,SPEED,L=58

92037-1163

1
Out of stock

92037A

CLAMP

92037-2113

1
Out of stock

92072

BAND

92072-0852

1
Out of stock

92072A

BAND,L=168

92072-1306

1
Out of stock

92075

DAMPER,FUEL FILTER

92075-1853

1
Out of stock

92161

DAMPER

92161-1843

1

$4.51

In stock

92170

CLAMP

92170-2082

1

$0.83

In stock

92171

CLAMP

92171-0453

1

$3.12

In stock

92171A

CLAMP,EDGE CLIP

92171-1722

1
Out of stock

92173

CLAMP

92173-0861

1
Out of stock

92173A

CLAMP

92173-2199

1
Out of stock

92192

TUBE,FILTER-CANISTER

92192-1665

1
Out of stock

92192A

TUBE,TANK-VALVE CHECK

92192-2653

1
Out of stock

92192B

TUBE,VALVE CHECK-FILTER AIR

92192-2654

1
Out of stock

92192C

TUBE,FILTER AIR-CANISTER

92192-2655

1
Out of stock

92192D

TUBE,CANISTER-PURGE VALVE

92192-2656

1
Out of stock

92192E

TUBE,PURGE VALVE-IN MANIFOLD

92192-2657

1
Out of stock

92192F

TUBE,FILTER AIR-OUTSIDE

92192-2658

1
Out of stock

130

BOLT-FLANGED,6X12

130BA0612

1

$1.46

In stock

130A

BOLT-FLANGED,6X16

130BA0616

1

$1.12

In stock
