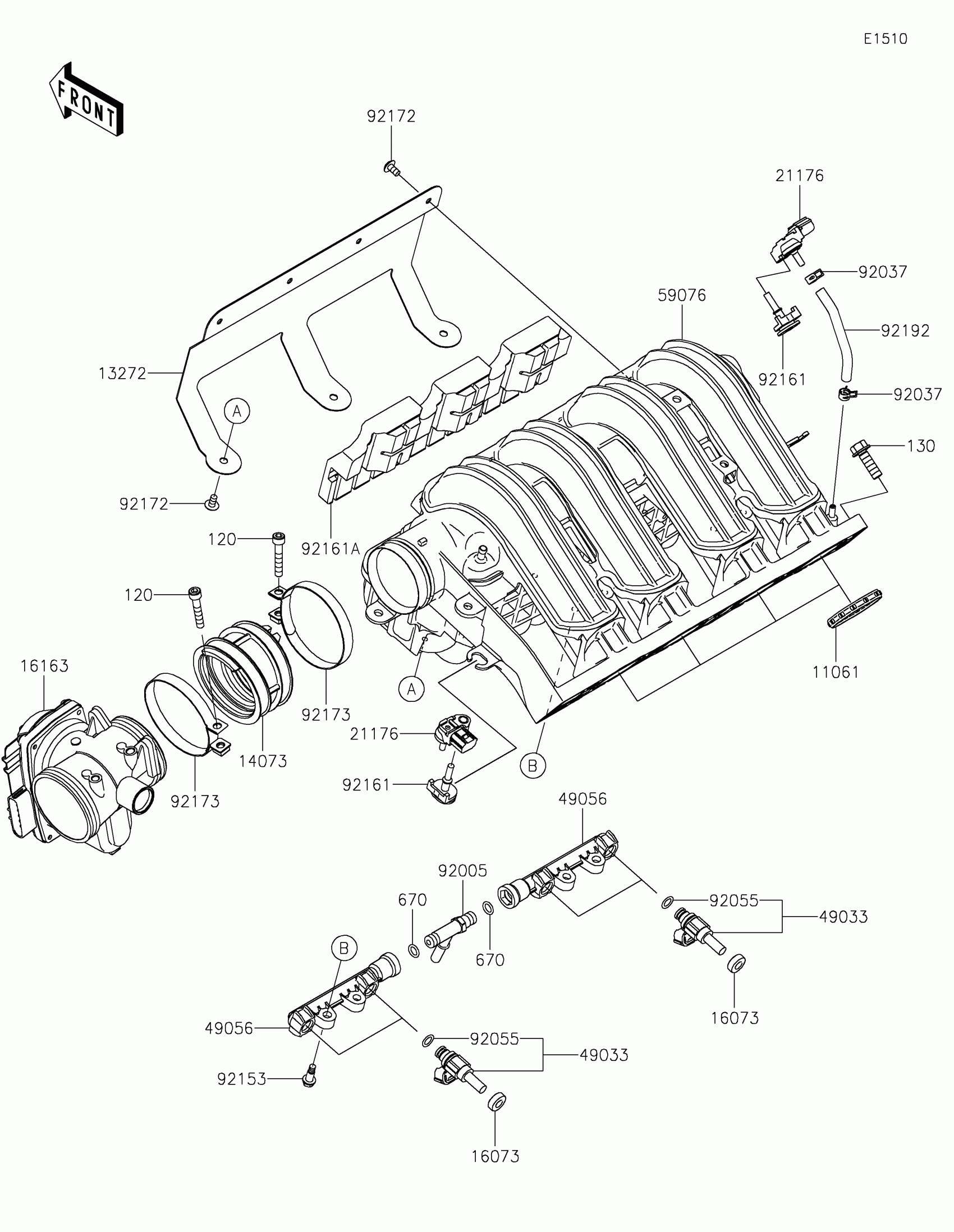

Kawasaki RIDGE® HVAC Throttle Diagram

#

Description
Price

11061

GASKET,INTAKE MANIFOLD

11061-1470

$11.12

13272

PLATE,INTAKE MANIFOLD

13272-4239

$22.73

14073

DUCT,INTAKE MANIFOLD

14073-1914

$20.83

16073

INSULATOR

16073-0129

$4.53

16163

THROTTLE-ASSY

16163-1306

$591.39

21176

SENSOR,PRESSURE

21176-0906

$226.99

49033

NOZZLE-INJECTION

49033-0586

$85.37

49056

PIPE-INJECTION

49056-0568

$19.85

59076

MANIFOLD-INTAKE

59076-0044

$565.02

92005

FITTING

92005-0125

$10.88

92037

CLAMP,7.8MM

92037-2116

$1.24

92055

RING-O,INJECTION NOZZLE

92055-0937

$7.56

92153

BOLT,FLANGED,5MM

92153-0361

$3.75

92161

DAMPER

92161-0673

$4.85

92161A

DAMPER

92161-2517

$92.70

92172

SCREW,TAPPING,5X10

92172-0262

$1.04

92173

CLAMP,74MM

92173-2219

$5.47

92192

TUBE,INTAKE MANIFOLD

92192-2652

$5.07

120

BOLT-SOCKET,6X35

120CA0635

$1.49

130

BOLT-FLANGED,8X25

130BA0825

$2.01

670

O RING,8MM

670E1508

$1.32
