2025 Kawasaki Ridge® Hvac Front Fender Diagram

← All diagrams

Find the part on the Front Fender diagram for your 2025 Kawasaki Ridge® Hvac, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

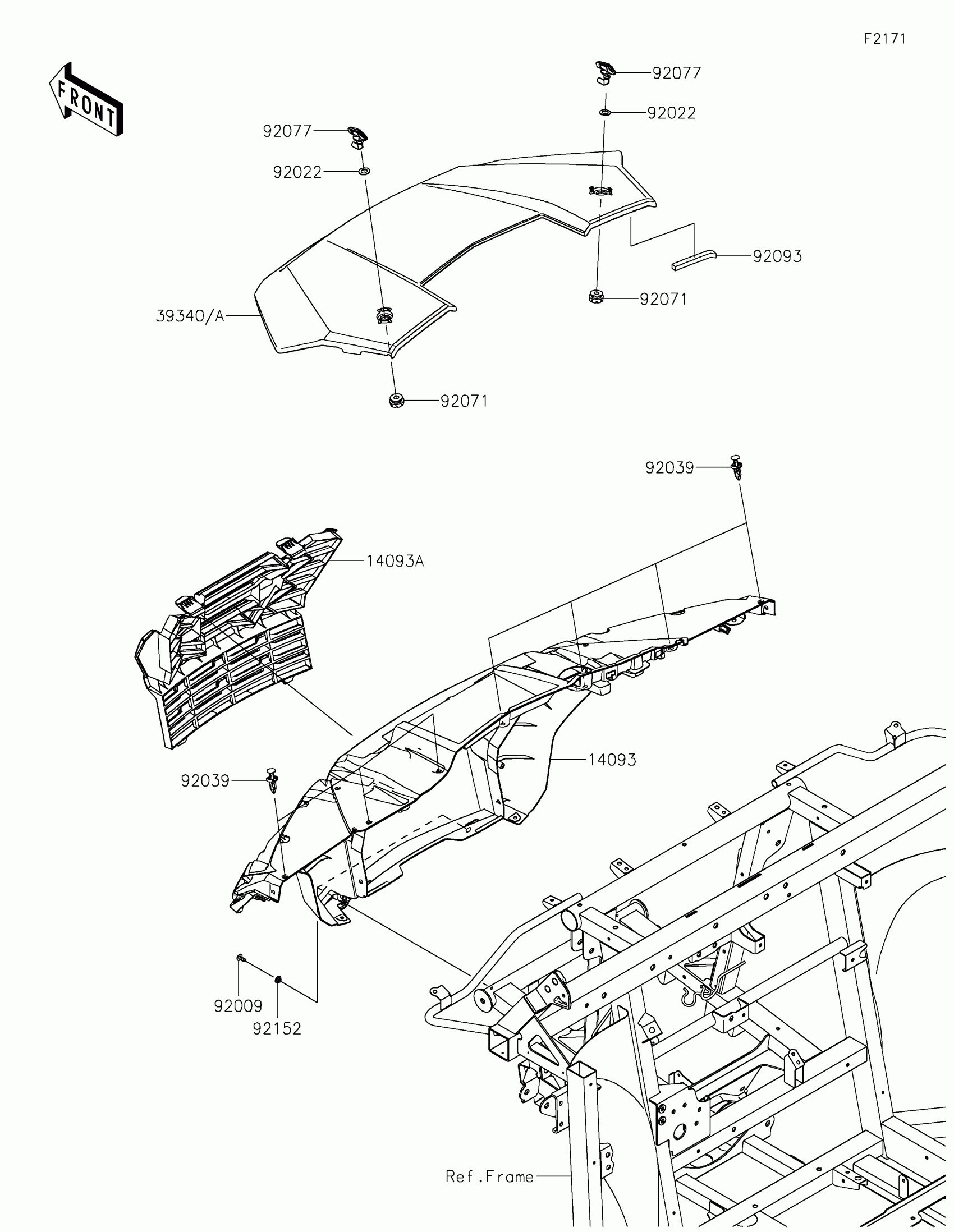

2025 Kawasaki Ridge® Hvac Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14093

COVER,FRONT GUARD,BLACK

14093-1308-6Z

1
Out of stock

14093A

COVER,FR GRILLE

14093-1309

1
Out of stock

39340A

HOOD,C.P.RED

39340-0002-V9

1
Out of stock

92009

SCREW,TAPPING,6X16

92009-1166

1
Out of stock

92022

WASHER,12.5X22X1.2

92022-072

1
Out of stock

92039

RIVET

92039-0776

1
Out of stock

92071

GROMMET

92071-0746

1
Out of stock

92077

KNOB

92077-0033

1
Out of stock

92093

SEAL,10X10X110

92093-0785

1
Out of stock

92152

COLLAR,6.3X9.5X4.1

92152-1571

1
Out of stock
