2025 Kawasaki Ridge® Crew Hvac Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 2025 Kawasaki Ridge® Crew Hvac, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

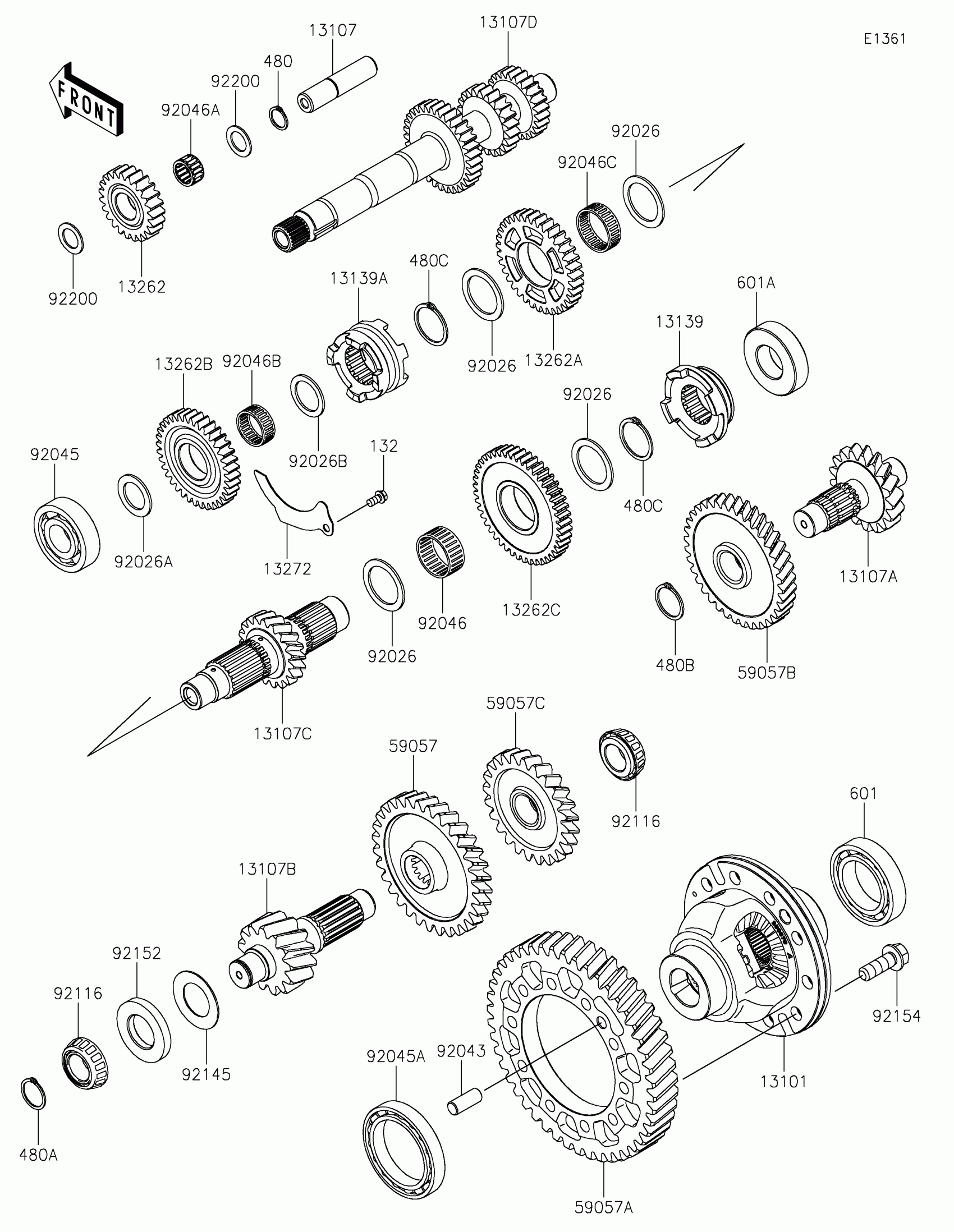

2025 Kawasaki Ridge® Crew Hvac Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13101

GEAR-ASSY,DIFFERENTIAL

13101-0735

1
Out of stock

13107

SHAFT,REVERSE IDLER

13107-0879

1
Out of stock

13107A

SHAFT,3RD,17T

13107-0965

1
Out of stock

13107B

SHAFT,4TH,13T

13107-0967

1
Out of stock

13107C

SHAFT,2ND,19T

13107-0974

1
Out of stock

13107D

SHAFT,INPUT

13107-1556

1
Out of stock

13139

SHIFTER,LOW,19T

13139-0030

1
Out of stock

13139A

SHIFTER,HIGH&REV,19T

13139-0037

1
Out of stock

13262

GEAR,REVERSE IDLER,23T

13262-1650

1
Out of stock

13262A

GEAR,REV,35T

13262-1651

1
Out of stock

13262B

GEAR,HIGH,36T

13262-1655

1
Out of stock

13262C

GEAR,LOW,45T

13262-1676

1
Out of stock

13272

PLATE,OIL

13272-2570

1
Out of stock

59057

GEAR-HELICAL,31T

59057-0039

1
Out of stock

59057A

GEAR-HELICAL,46T

59057-0040

1
Out of stock

59057B

GEAR-HELICAL,36T

59057-0042

1
Out of stock

59057C

GEAR-HELICAL,24T

59057-0046

1
Out of stock

92026

SPACER,35.2X47X2

92026-0765

1
Out of stock

92026A

SPACER,25.2X38X2

92026-0856

1
Out of stock

92026B

SPACER,28X38X2

92026-1299

1
Out of stock

92043

PIN,DOWEL,12X30

92043-0789

1
Out of stock

92045

BEARING-BALL,6305RSH2

92045-0899

1
Out of stock

92045A

BEARING-BALL,6912

92045-0965

1
Out of stock

92046

BEARING-NEEDLE,35X40X17

92046-0611

1
Out of stock

92046A

BEARING-NEEDLE

92046-0634

1
Out of stock

92046B

BEARING-NEEDLE

92046-0635

1
Out of stock

92046C

BEARING-NEEDLE

92046-0636

1
Out of stock

92116

BEARING-ROLLER

92116-1053

1
Out of stock

92145

SPRING

92145-1837

1
Out of stock

92152

COLLAR

92152-2526

1
Out of stock

92154

BOLT,12X35

92154-4495

1
Out of stock

92200

WASHER,18.2X28X1.5

92200-0716

1
Out of stock

132

1

$1.12

In stock

480

CIRCLIP-TYPE-C,18MM

480J1800

1
Out of stock

480A

CIRCLIP-TYPE-C,25MM

480J2500

1
Out of stock

480B

CIRCLIP

480J2900

1
Out of stock

480C

CIRCLIP

480J3500

1
Out of stock

601

BEARING-BALL,6012

601A6012

1
Out of stock

601A

BEARING-BALL

601A6206

1
Out of stock
