2025 Kawasaki Ridge® Crew Hvac Bevel Gear Diagram

← All diagrams

Find the part on the Bevel Gear diagram for your 2025 Kawasaki Ridge® Crew Hvac, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

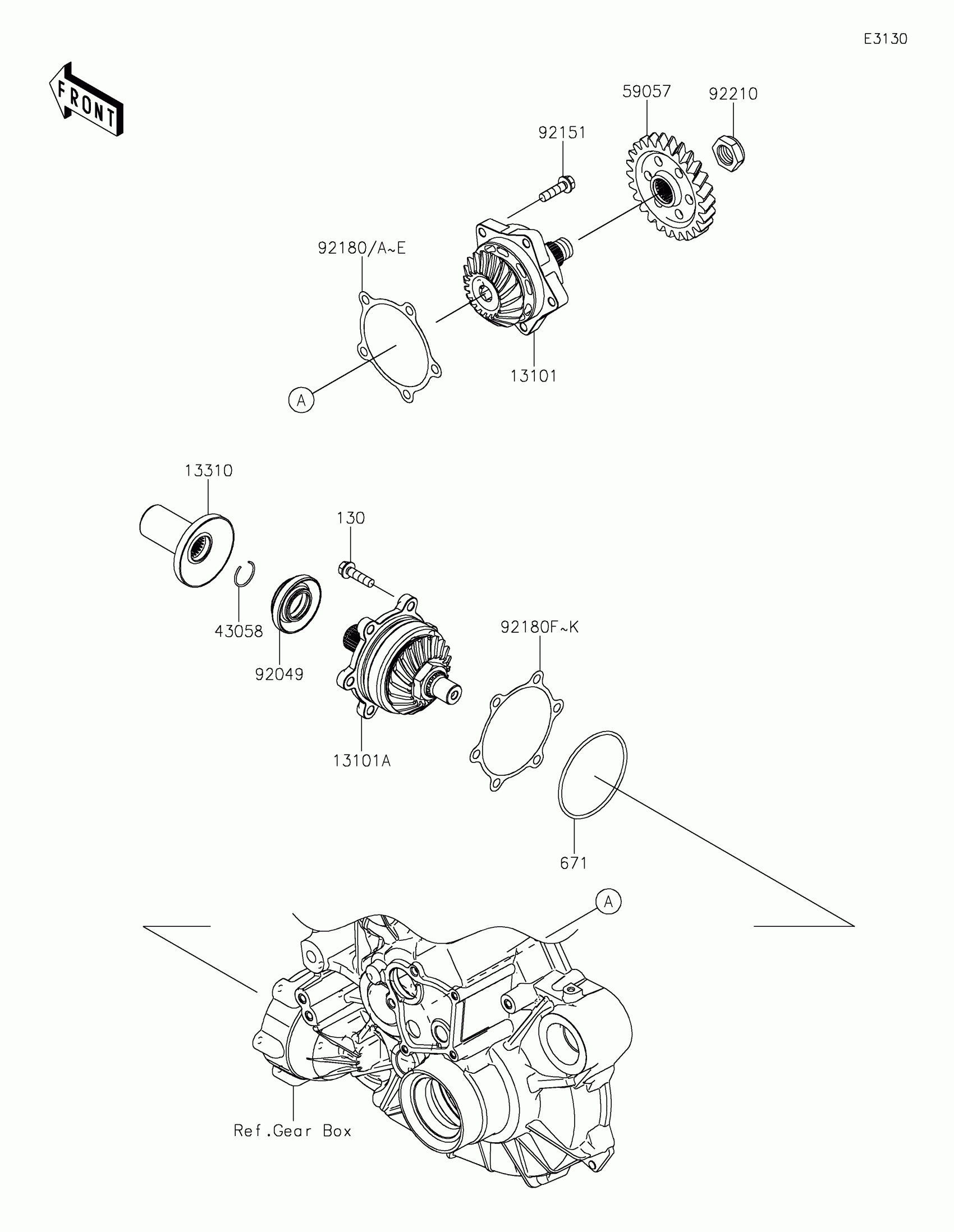

2025 Kawasaki Ridge® Crew Hvac Bevel Gear Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13101

GEAR-ASSY,DRIVE

13101-0689

1
Out of stock

13101A

GEAR-ASSY,DRIVEN

13101-0736

1
Out of stock

13310

SHAFT-ASSY

13310-0584

1
Out of stock

43058

RING

43058-0018

1
Out of stock

59057

GEAR-HELICAL,25T

59057-0045

1
Out of stock

92049

SEAL-OIL

92049-0160

1
Out of stock

92151

BOLT,8X30

92151-1908

1
Out of stock

92180

SHIM,DRIVE,T=0.15

92180-1543

—
Out of stock

92180A

SHIM,DRIVE,T=0.20

92180-1544

—
Out of stock

92180B

SHIM,DRIVE,T=0.50

92180-1545

—
Out of stock

92180C

SHIM,DRIVE,T=0.80

92180-1546

—
Out of stock

92180D

SHIM,DRIVE,T=1.00

92180-1547

—
Out of stock

92180E

SHIM,DRIVE,T=1.20

92180-1548

—
Out of stock

92180F

SHIM,DRIVEN,T=0.15

92180-1549

—
Out of stock

92180G

SHIM,DRIVEN,T=0.20

92180-1550

—
Out of stock

92180H

SHIM,DRIVEN,T=0.50

92180-1551

—
Out of stock

92180I

SHIM,DRIVEN,T=0.80

92180-1552

—
Out of stock

92180J

SHIM,DRIVEN,T=1.00

92180-1553

—
Out of stock

92180K

SHIM,DRIVEN,T=1.20

92180-1554

—
Out of stock

92210

NUT

92210-1790

1
Out of stock

130

BOLT-FLANGED,8X30

130BA0830

1

$1.68

In stock

671

O RING

671D2585

1
Out of stock
