2025 Kawasaki Ridge® Crew Hvac Drive Converter Diagram

← All diagrams

Find the part on the Drive Converter diagram for your 2025 Kawasaki Ridge® Crew Hvac, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

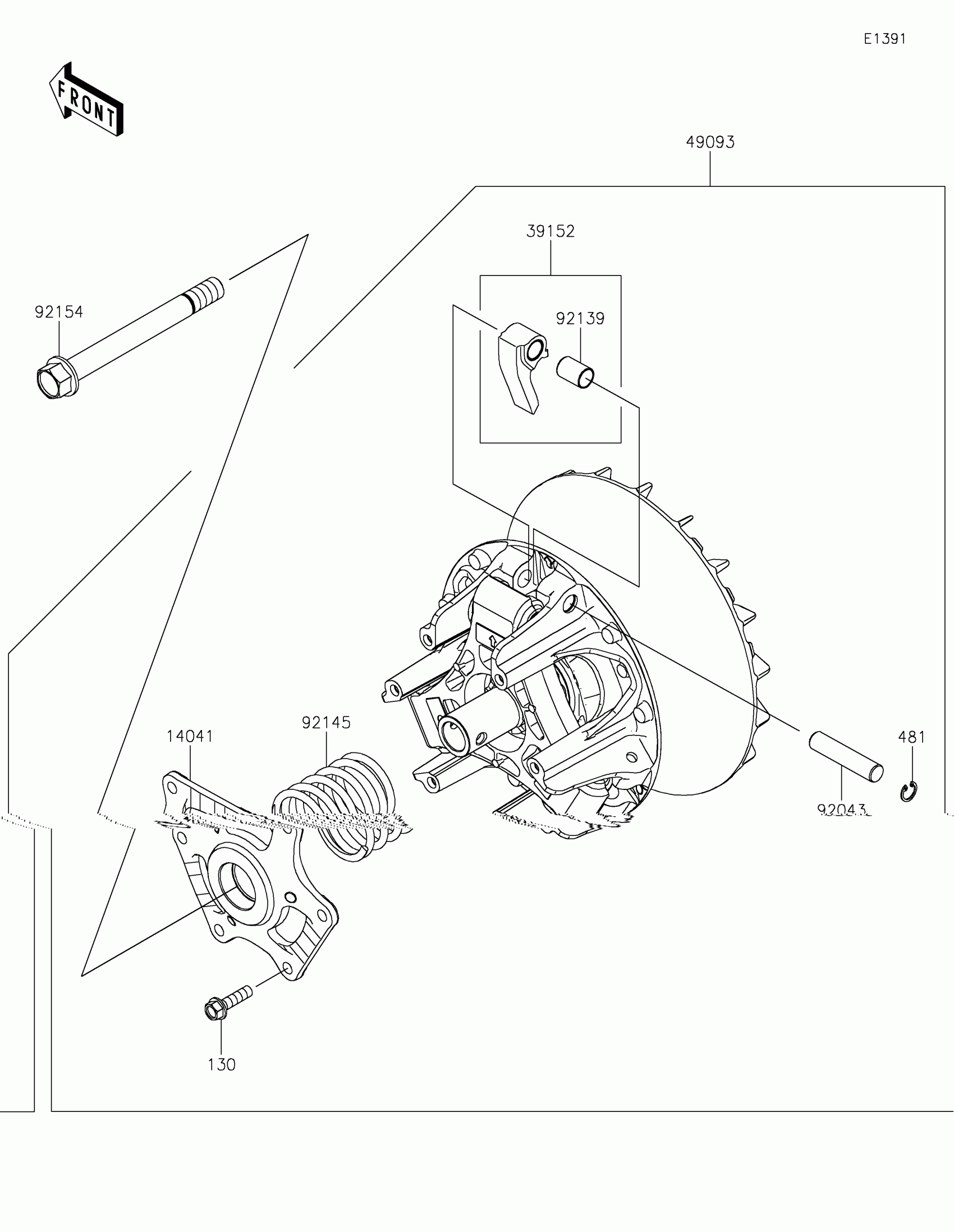

2025 Kawasaki Ridge® Crew Hvac Drive Converter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14041

COVER-COMP

14041-0652

1
Out of stock

39152

WEIGHT-RAMP

39152-0117

1
Out of stock

49093

CONVERTER-ASSY-DRIVE

49093-0126

1
Out of stock

92043

PIN

92043-1780

1
Out of stock

92139

BUSHING

92139-0933

1
Out of stock

92145

SPRING

92145-2337

1
Out of stock

92154

BOLT,16X154

92154-7044

1
Out of stock

130

BOLT-FLANGED,8X30

130CA0830

1

$1.00

In stock

481

CIRCLIP-TYPE-C

481J1400

1
Out of stock
← Bevel Gear Drive Shaft-Front →
