2025 Kawasaki Ridge® Crew Hvac Starter Motor Diagram

← All diagrams

Find the part on the Starter Motor diagram for your 2025 Kawasaki Ridge® Crew Hvac, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

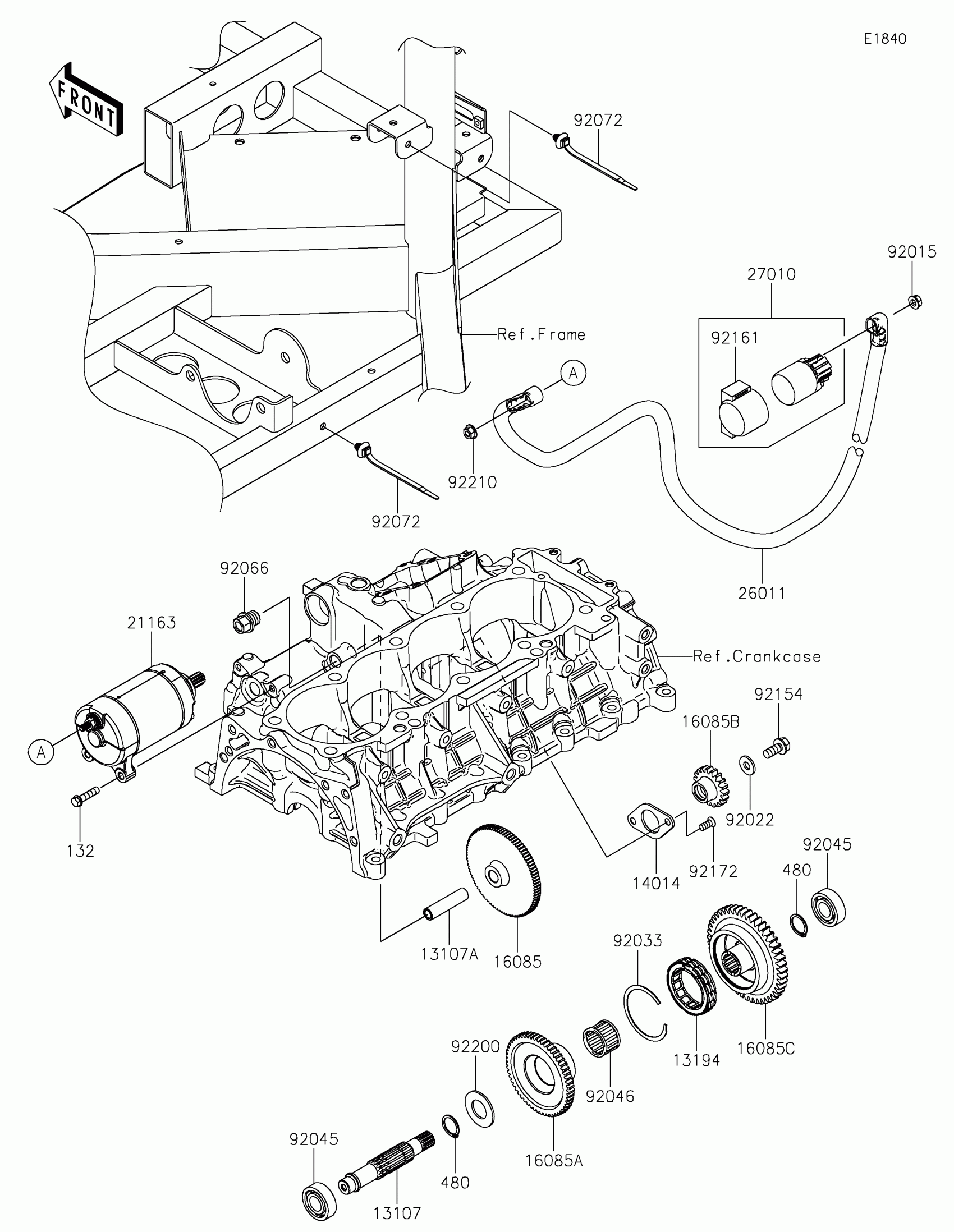

2025 Kawasaki Ridge® Crew Hvac Starter Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13107

SHAFT

13107-0972

1
Out of stock

13107A

SHAFT,LIMITER GEAR

13107-0973

1
Out of stock

13194

CLUTCH-ONEWAY

13194-0027

1
Out of stock

14014

1

$18.17

In stock

16085

GEAR,LIMITER

16085-0731

1
Out of stock

16085A

GEAR,LIMITER

16085-0733

1
Out of stock

16085B

GEAR,PUMP-OIL

16085-0734

1
Out of stock

16085C

GEAR,CRANKSHAFT

16085-0752

1
Out of stock

21163

STARTER-ELECTRIC

21163-0806

1
Out of stock

26011

WIRE-LEAD,STARTER-ELECTRIC

26011-2418

1
Out of stock

27010

SWITCH,MAGNETIC

27010-0766

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92022

WASHER,8.2X19X2

92022-1533

1
Out of stock

92033

RING-SNAP

92033-3731

1
Out of stock

92045

BEARING-BALL,6202ZC3

92045-0785

1
Out of stock

92046

BEARING-NEEDLE,RS263020

92046-0004

1
Out of stock

92066

PLUG

92066-0998

1
Out of stock

92072

BAND,OS170-FT7(BLACK)

92072-1414

1
Out of stock

92154

BOLT-FLANGED,8X16

92154-2670

1
Out of stock

92161

1

$18.34

In stock

92172

SCREW,TORX,6X14

92172-0961

1
Out of stock

92200

WASHER,19.6X37.0X2.0

92200-2556

1
Out of stock

92210

NUT,6MM

92210-0188

1
Out of stock

132

1

$2.29

In stock

480

CIRCLIP-TYPE-C,19MM

480J1900

1
Out of stock
