1997 Suzuki RF900RV Front Brake Hose Diagram

← All diagrams

Find the part on the Front Brake Hose diagram for your 1997 Suzuki RF900RV, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

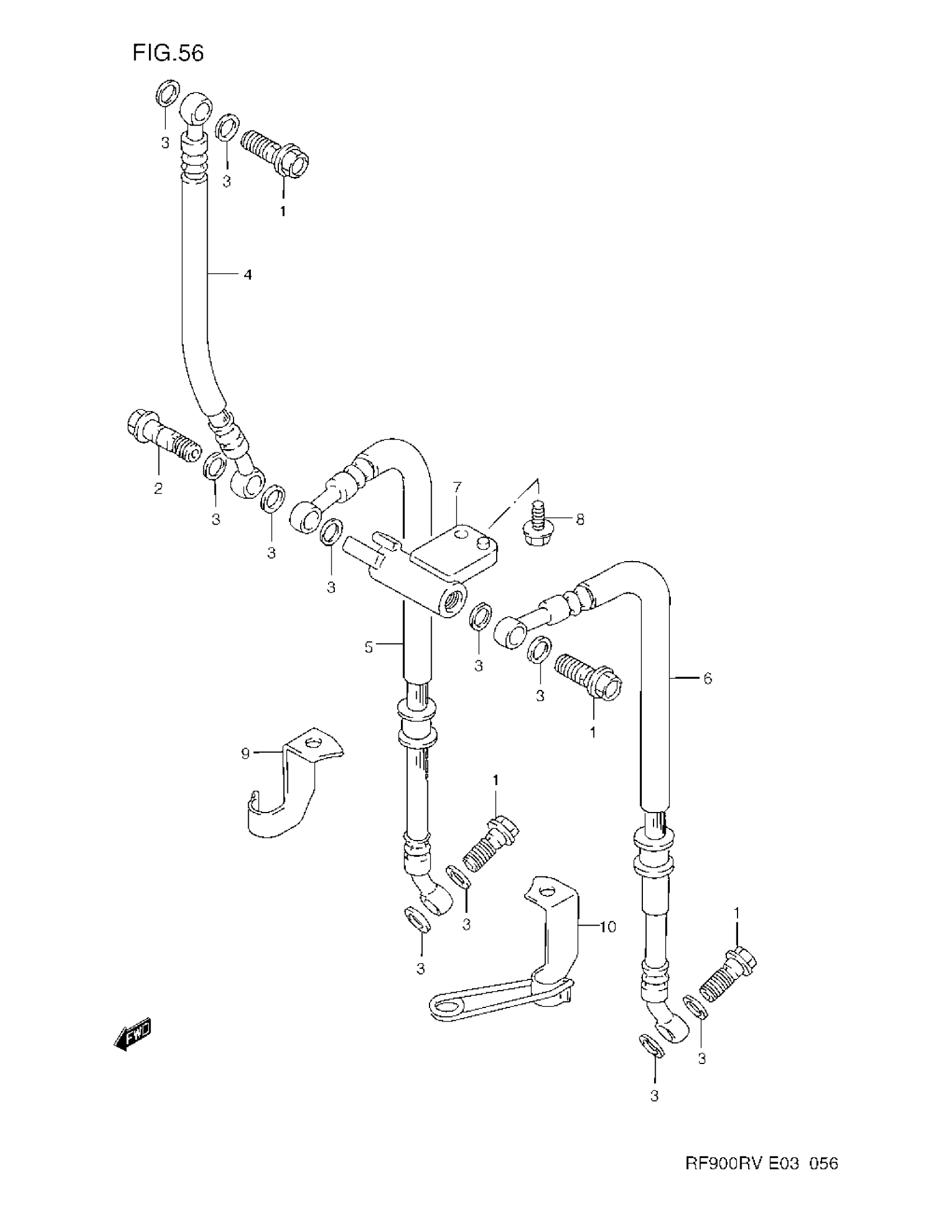

1997 Suzuki RF900RV Front Brake Hose Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

4

$6.33

In stock

2

BOLT (10X1.00X36) | MODEL R/S/T

09360-10018

1
Out of stock

2

UNION | MODEL V This part replaces 09360-10043.

09360-10063

1
Out of stock

3

WASHER (10X15X1.5)

09161-10009

11
Out of stock

4

HOSE, FRONT BRAKE NO.1

59480-21E00

1
Out of stock

5

HOSE, FRONT BRAKE NO.2 RH

59240-31E00

1
Out of stock

6

HOSE, FRONT BRAKE NO.2 LH

59440-31E00

1
Out of stock

7

JOINT, BRAKE HOSE

59491-17E00

1
Out of stock

8

BOLT This part replaces 01550-06163.

01550-0616A

1
Out of stock

9

CLAMP, BRAKE HOSE RH

59268-07D00

1
Out of stock

10

CLAMP, BRAKE HOSE LH

59260-07D00

1
Out of stock
