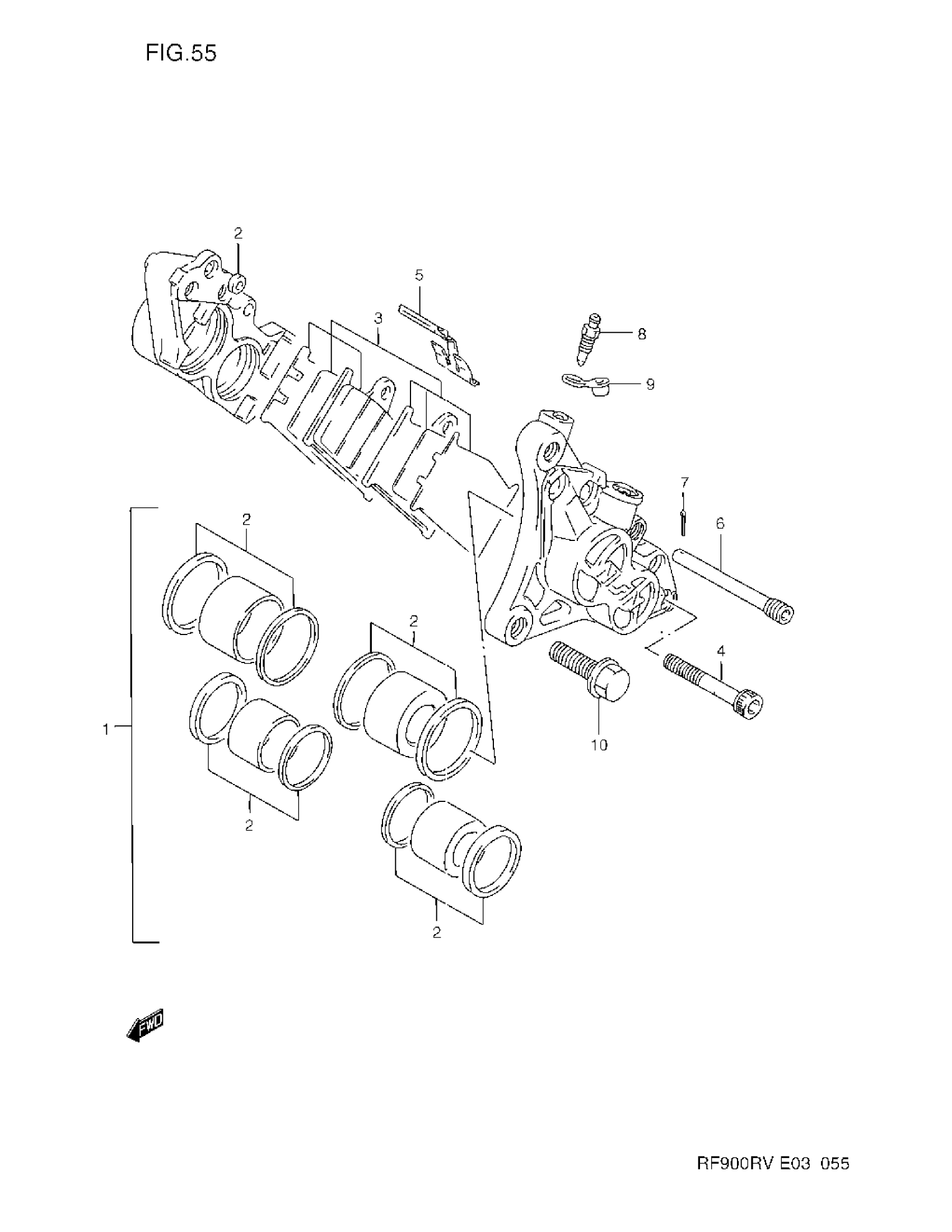

Suzuki RF900RV (1997) FRONT CALIPERS Diagram

#

Description
Price

CALIPER ASSY,FR This part replaces 59100-17E10.

59100-17E10-999

Unavailable

CALIPER ASSY, F | Includes Item(s) 1 - 9 This part replaces 59300-17E10.

59300-17E10-999

Unavailable

1

PISTON SET

59100-17830

Unavailable

2

SEAL SET, PISTON

59100-17870

$55.05

3

PAD SET

59300-17811

$86.22

4

BOLT, HOUSING

59145-33C00

Unavailable

5

SPRING

59315-17C00

$15.43

6

PIN

59345-33C00

$34.12

7

PIN This part replaces 04111-16208.

04111-1620A

$0.96

8

BLEEDER

59121-01A00

$7.99

9

CAP

59122-01A00

$3.97

10

BOLT This part replaces 01550-10303.

01550-1030A

$3.25
