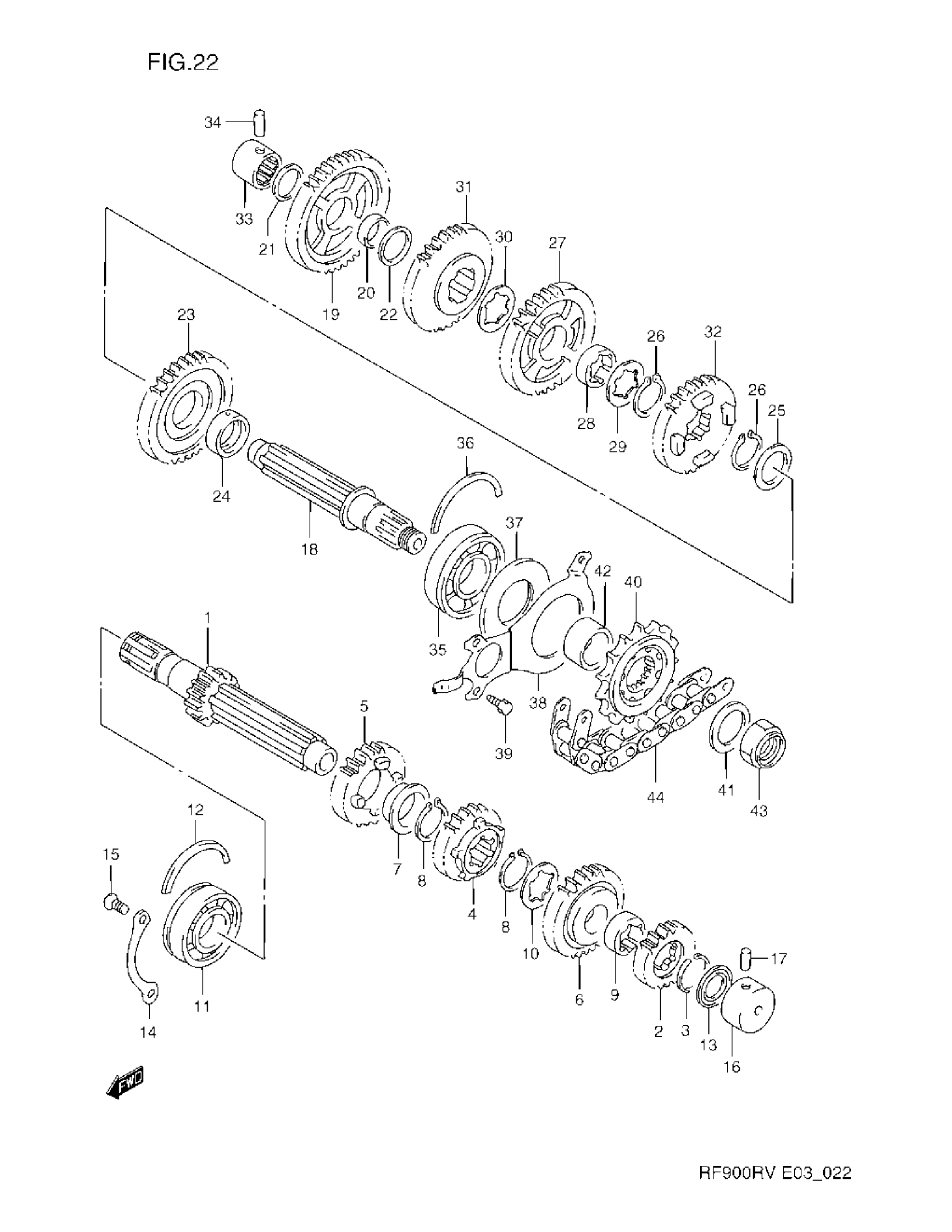

Suzuki RF900RV (1997) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT (NT:14) | MODEL R

24120-26D10

Unavailable

1

COUNTERSHAFT (NT:14) | MODEL S/T/V

24120-26D20

Unavailable

2

GEAR, 2ND DRIVE (NT:21)

24221-26D00

Unavailable

3

CIRCLIP

09380-28008

Unavailable

4

GEAR, 3RD DRIVE (NT:22)

24231-26D02

Unavailable

5

GEAR, 4TH DRIVE (NT:22)

24241-26D10

Unavailable

6

GEAR, 5TH DRIVE (NT:26) This part replaces 24251-26D01.

24251-26D02

Unavailable

7

BUSH, 4TH DRIVE GEAR

09301-28001

$21.67

8

CIRCLIP This part replaces 08331-31286.

08331-31289

$2.28

9

BUSH, 5TH DRIVE GEAR

24332-24A00

Unavailable

10

WASHER (28.1X38X1.0)

09167-28001

$5.00

11

BEARING, LH | MODEL R/S This part replaces 09262-25051.

09262-25105

$53.00

11

BEARING, RH (25X62X17) | MODEL T/V

09262-25105

$53.00

12

C RING | MODEL R/S This part replaces 09390-62006.

09390-62012

$6.69

12

C RING | MODEL T/V

09390-62012

$6.69

13

OIL SEAL

09285-20006

$5.88

14

HOLDER, BEARING

24741-27A00

$11.37

15

SCREW This part replaces 02122-06163.

02122-0616A

$1.43

16

BEARING, CENTER SHAFT LH This part replaces 09263-20082.

09263-20085

$83.37

17

PIN

04221-07129

$1.88

18

SHAFT, DRIVE

24131-46E10

Unavailable

19

GEAR, 1ST DRIVEN (NT:38)

24311-26D10

Unavailable

20

BUSH, 1ST DRIVEN This part replaces 09300-22005.

24312-02F00

$31.78

21

WASHER, RH | MODEL R/S/T

08211-20341

$3.05

21

WASHER, RH (20X34X1.0) | MODEL V

09181-20251

$2.77

22

WASHER, LH | MODEL R/S/T

08211-22341

$4.18

22

WASHER, LH (22X34X1.0) | MODEL V

09181-22223

$2.85

23

GEAR, 2ND DRIVEN (NT:38)

24321-26D01

Unavailable

24

BUSH

09300-28002

$20.32

25

.SHIM (28X38X1) | MODEL R/S/T This part replaces 08211-28381.

09181-28195

$5.17

25

WASHER (28X38X1.0) | MODEL V

09181-28195

$5.17

26

CIRCLIP This part replaces 08331-31286.

08331-31289

$2.28

27

GEAR, 3RD DRIVEN (NT:31)

24331-26D10

Unavailable

28

BUSH, 3RD DRIVEN GEAR This part replaces 24332-48B00.

24332-48B01

Unavailable

29

WASHER, LH (T:1)

09167-28001

$5.00

30

WASHER, RH (T:2)

09167-28008

Unavailable

31

GEAR, 4TH DRIVEN (NT:26) | MODEL R/S This part replaces 24341-26D10.

24341-26D11

Unavailable

31

GEAR, 4TH DRIVEN (NT:26) | MODEL T/V

24341-26D11

Unavailable

32

GEAR, 5TH DRIVEN (NT:27) | MODEL R/S This part replaces 24351-26D20.

24351-26D21

Unavailable

32

GEAR, 5TH DRIVEN | MODEL T/V

24351-26D21

Unavailable

33

BEARING, RH (20X34X20)

09263-20040

$42.95

34

PIN (L:20)

04221-07209

$2.50

35

BEARING, LH (28X70X18)

09262-28025

$163.68

36

C RING

09390-70001

$10.62

37

OIL SEAL (36X70X6)

09283-36008

$19.21

38

PLATE, OIL SEAL

24751-17E00

Unavailable

39

BOLT This part replaces 01500-06123.

01500-0612A

$1.80

40

SPROCKET, ENGINE (NT:15)

27510-48B00

$110.62

41

WASHER (25X40X1.5) | MODEL R/S/T This part replaces 08211-25402.

09181-25268

$2.90

41

WASHER (25X40X1.5) | MODEL V

09181-25268

$2.90

42

SPACER (25X36X17.7)

09180-25098

Unavailable

43

NUT

09159-20004

$14.15

44

CHAIN, DRIVE (RK532GSV2X116LE This part replaces 27600-40C20-110.

27600-46E20-116

Unavailable
