1996 Suzuki RF600RT Rear Caliper Diagram

← All diagrams

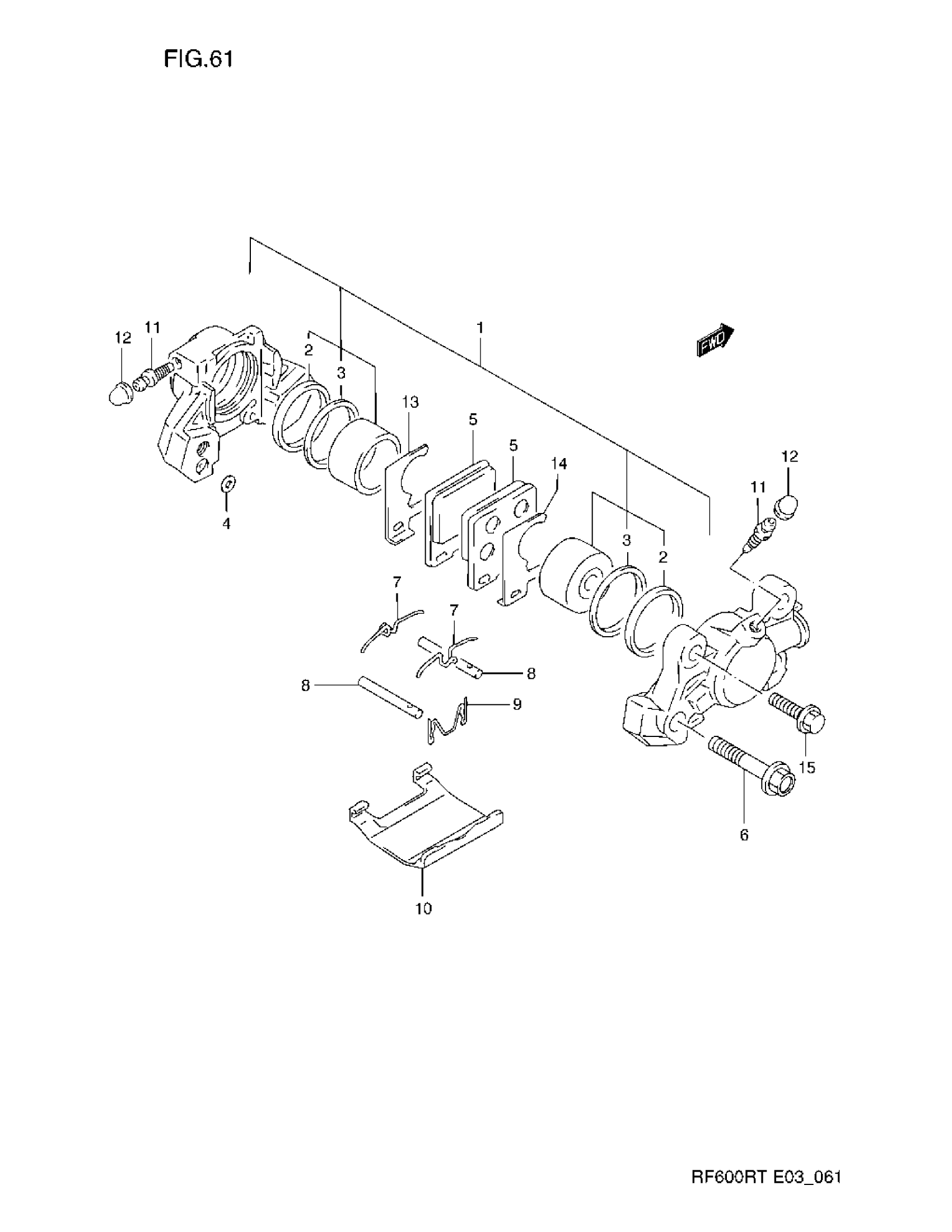

Find the part on the Rear Caliper diagram for your 1996 Suzuki RF600RT, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Suzuki RF600RT Rear Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

CALIPER ASSY, REAR | SEE NOTE; Includes Item(s) 1 - 14

69100-21830

1
Out of stock

1

PISTON SET This part replaces 69100-32810.

69100-05851

1
Out of stock

2

SEAL,PISTON This part replaces 59107-18410.

69107-05CF0

2
Out of stock

3

BOOT

69108-32B00

2
Out of stock

4

SEAL

69107-34200

1
Out of stock

5

PAD SET This part replaces 69130-21E00.

69100-21820

2
Out of stock

6

BOLT

59145-17C00

2
Out of stock

7

SPRING

59143-16700

2
Out of stock

8

PIN

69141-46E01

2
Out of stock

9

CLIP

69142-46E01

1
Out of stock

10

COVER

59151-16701

1
Out of stock

11

BLEEDER

59121-18410

2
Out of stock

12

CAP, BLEEDER This part replaces 59122-18410.

55156-66310

2
Out of stock

13

SHIM, INNER

59371-20C00

1
Out of stock

14

SHIM, OUTER

59381-20C00

1
Out of stock

15

BOLT This part replaces 01550-08303.

01550-0830A

2
Out of stock

16

REFER TO FIG.61A(I-8) FOR

SPECIAL NOTE

—
Out of stock
