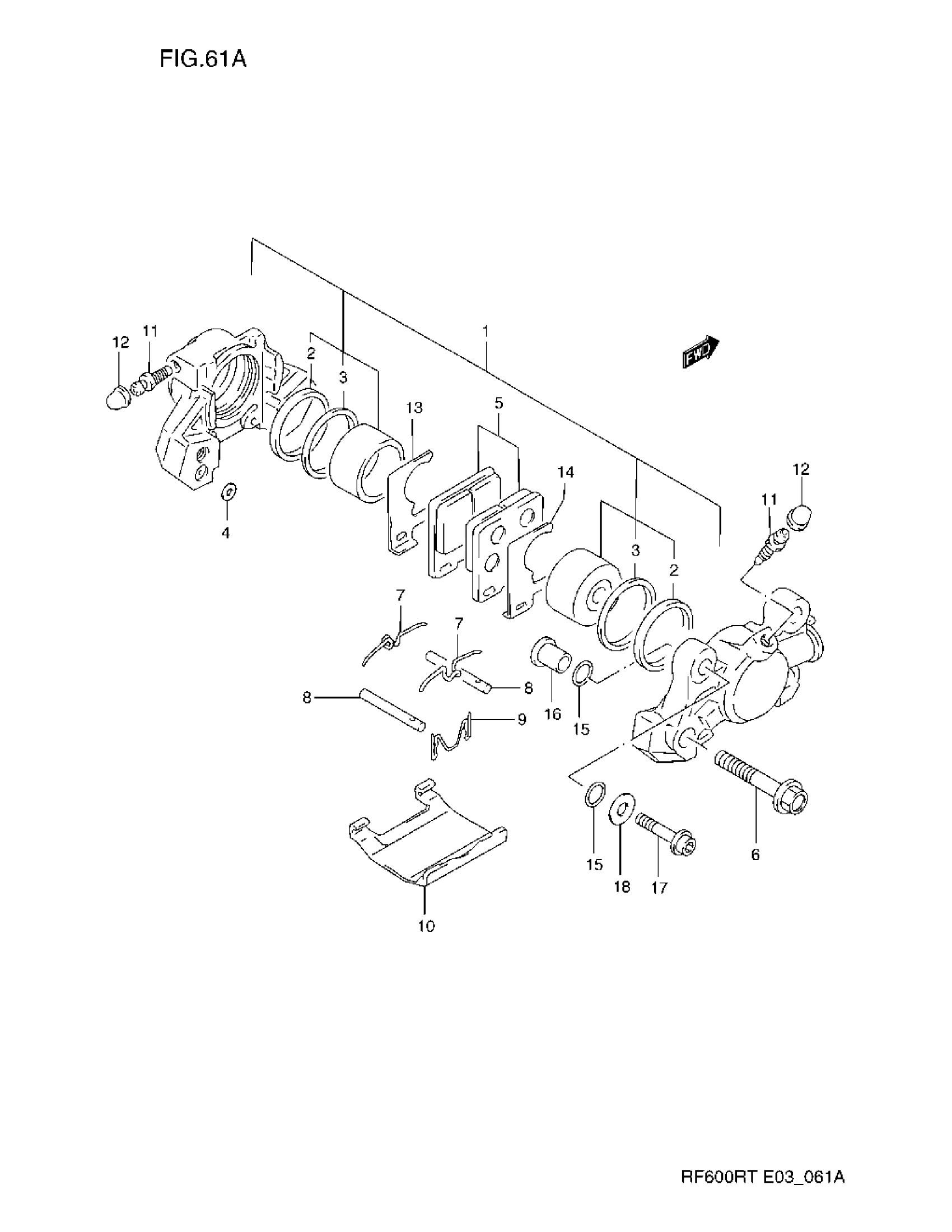

Suzuki RF600RT (1996) REAR CALIPER (MODEL S) Diagram

#

Description
Price

CALIPER ASSY & BOLT SET, REAR | Includes Item(s) 1 - 18

69100-21830

Unavailable

1

PISTON SET This part replaces 69100-32810.

69100-05851

$58.04

2

SEAL,PISTON This part replaces 59107-18410.

69107-05CF0

$8.68

3

BOOT

69108-32B00

$27.81

4

SEAL

69107-34200

$10.25

5

PAD SET

69100-21820

$54.38

6

BOLT

59145-16700

$9.97

7

SPRING

59143-16700

$5.54

8

PIN

69141-46E01

$8.35

9

CLIP

69142-46E01

$15.75

10

COVER

59151-16701

$13.15

11

BLEEDER

59121-18410

$8.35

12

CAP

55156-66310

$4.94

13

SHIM, INNER

59371-20C00

$18.33

14

SHIM, OUTER

59381-20C00

$18.33

15

O RING

69115-21E00

Unavailable

16

SPACER

69155-21E00

Unavailable

17

BOLT

09106-08133

$3.69

18

WASHER This part replaces 09160-08080.

09160-08128

$3.05

19

REFER TO FIG.61B(I-9) FOR

SPECIAL NOTE

Unavailable
