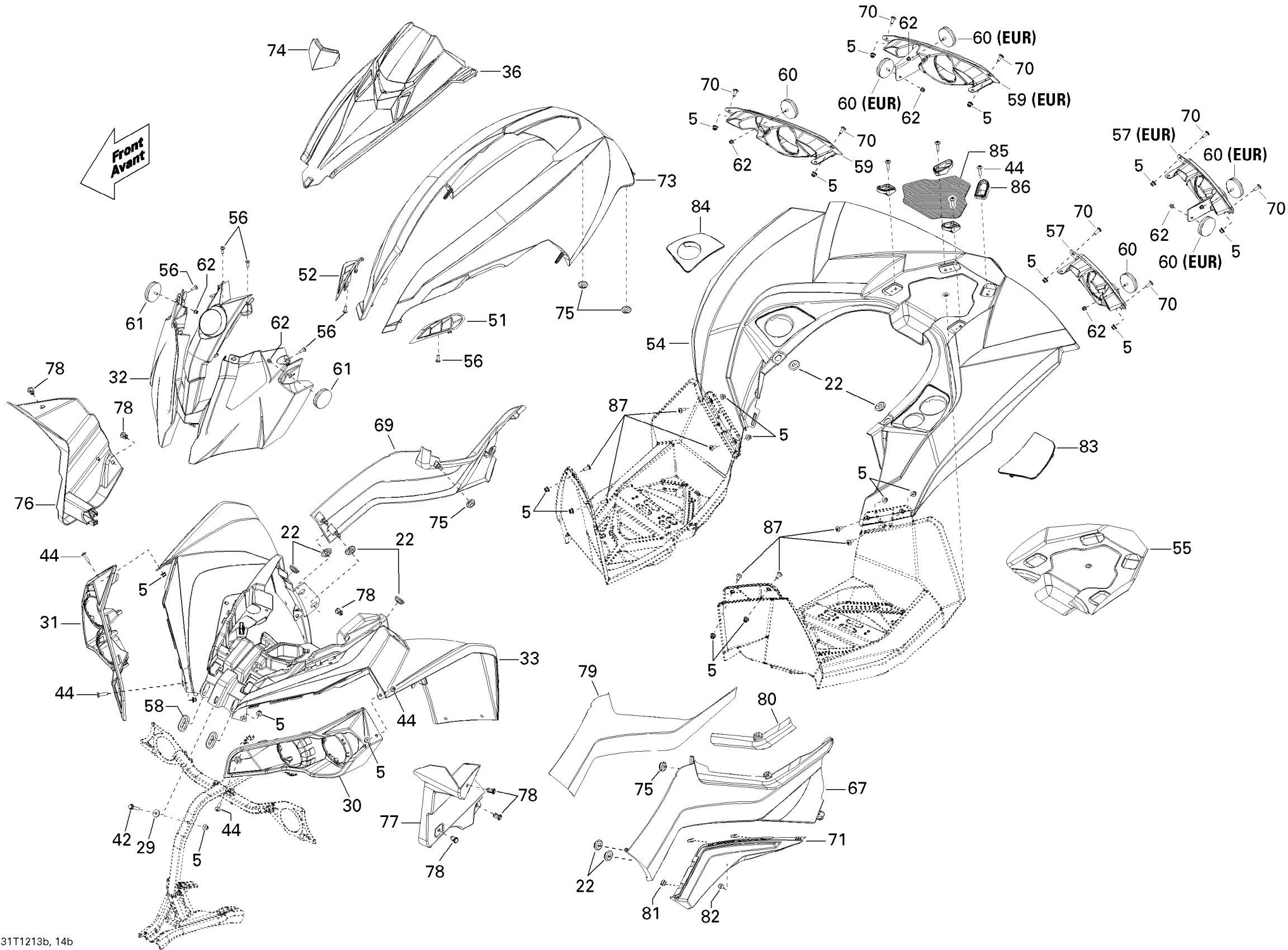

Can-Am Renegade STD, XXC, 1000 EFI, 2012 Body And Accessories 2 Diagram

#

Description
Price

5

Flange Elastic Nut M6

233261434

$3.61

5

Flange Elastic Nut M6

233261434

$3.61

22

Oval Washer

705000321

$4.64

29

Flat Washer

224061201

$1.11

30

LH Front Facia

705004508

$47.66

31

RH Front Facia

705004509

$47.66

32

Front Facia

705003948

$51.51

33

Yellow Front Fender Kit | Includes 22 to 26

715000737

$189.97

33

Black Front Fender Kit | Includes 22 to 26

715000742

$189.97

36

Dashboard

705003556

$46.12

42

Hex. Flange Screw M6 X 35

207663544

$0.74

44

Torx Screw M6 x 25

250000284

$1.74

51

LH Grille

705008137

$19.20

51

LEFT GRILL - Call your local BRP dealership

705008139

Unavailable

52

RH Grille

705008138

$19.20

52

RIGHT GRILL - Call your local BRP dealership

705008140

Unavailable

54

Rear Fender Kit, Black | Includes 1 to 10

715000499

Unavailable

54

REAR FENDER KIT, YELLOW - Call your local BRP dealership | STD Yellow 2000 Europe

715000760

Unavailable

55

Reflective Sheet

705005840

$8.45

56

Torx Screw K50 X 16

250000720

$1.39

57

LH Rear Facia | North America, International

705004731

$16.89

57

LH Rear Facia | Europe

705004927

$14.71

58

Oblong Grommet

705003668

$4.54

59

RH Rear Facia | North America, International

705004732

$16.89

59

RH Rear Facia | Europe

705004926

$14.71

60

Red Reflector

705011221

$12.32

60

Red Reflector

705011221

$12.32

61

Amber Reflector | Except Europe Model

705011222

$12.32

62

Flange Elastic Nut M5

233251434

$1.66

62

Flange Elastic Nut M5

233251434

$1.66

67

PANEL_BODY LH B-190 - Call your local BRP dealership | Yellow

705002946

Unavailable

67

Black, LH Lateral Panel

705002958

$41.51

69

PANEL_BODY RH B-190 - Call your local BRP dealership | Yellow

705002949

Unavailable

69

Black, RH Side Panel

705002959

$41.51

70

Torx Truss Screw M6 X 16

250000721

$1.39

71

Panel Extension

705004988

$14.75

73

Central Pannel Kit, Yellow | Europe

715001495

$101.51

73

Yellow Central Pannel Kit

715001493

$101.51

74

Cap

705002353

$14.20

75

Grommet

705003264

$3.43

76

RH INNER FENDER - Call your local BRP dealership

705004308

Unavailable

77

LH INNER FENDER - Call your local BRP dealership

705004307

Unavailable

78

Tuflok Plastic Rivet

293150230

$1.21

79

Reflective Sheet

705005620

$11.98

80

REFLECTIVE SHEET - Call your local BRP dealership

705005617

Unavailable

81

Clip

414479100

$1.86

82

Rubber Bumper

293830005

$5.33

83

LH Rear Body Panel Cap

705017923

$12.68

84

RH Rear Body Panel Cap

705017924

$14.71

85

Rear Carpet

705002343

$16.89

86

Hook

705017925

$15.35

87

Torx Screw M6 X 16

250000755

$0.72
